AD7709BRU

AD7709BRU Overview

Product belongs to the AD7709 series. This product is categorized as Analog to Digital Converters Tube is the packaging method for this product Weight of 0.007478 oz SMD/SMT Mounting-Style TSSOP-24 The Differential, Pseudo-Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 4 Channel Supplier device package: 24-TSSOP This product's 105. Data-Interface: SPI, DSP 16 bits The Voltage-Supply-Analog is 2.7 V ~ 3.3 V, 5V. The Voltage Supply Digital for this product is 2.7 V ~ 3.3 V, 5V. Configuration MUX-PGA-ADC The architecture of this product is Sigma-Delta . External is the reference type. 1 units Power-off control: 8.8 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product has a Power Consumption of 3.75 mW. Serial 3-Wire SPI interface type Signal-to-Noise Ratio of 126 dB The +/- 0.75 LSB of this product is 0.2%. Number-of-Converters: 1 Converter 105 S/s Sampling Rate Integral Nonlinearity: +/- 30 ppm of FSR

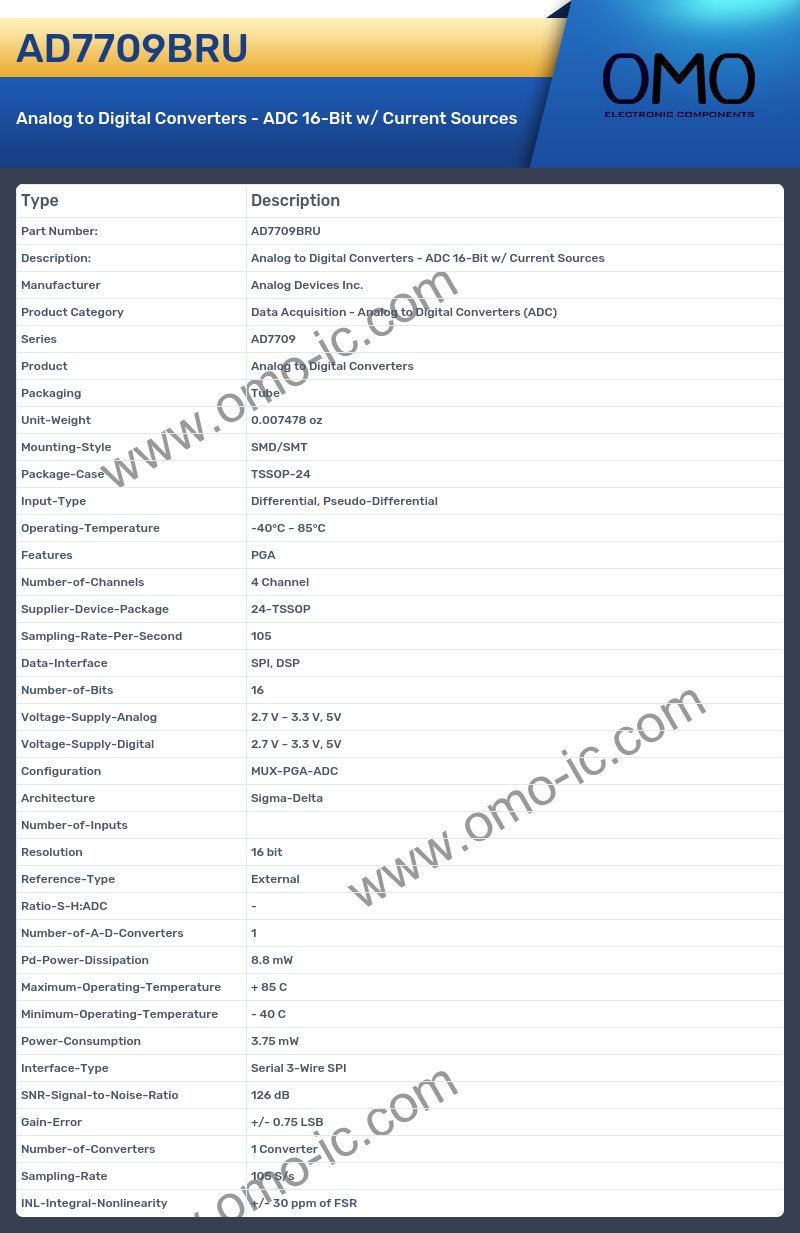

AD7709BRU Image

AD7709BRU Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD7709
• Product Analog to Digital Converters
• Packaging Tube
• Unit-Weight 0.007478 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-24
• Input-Type Differential, Pseudo-Differential
• Operating-Temperature -40°C ~ 85°C
• Features PGA
• Number-of-Channels 4 Channel
• Supplier-Device-Package 24-TSSOP
• Sampling-Rate-Per-Second 105
• Data-Interface SPI, DSP
• Number-of-Bits 16
• Voltage-Supply-Analog 2.7 V ~ 3.3 V, 5V
• Voltage-Supply-Digital 2.7 V ~ 3.3 V, 5V
• Configuration MUX-PGA-ADC
• Architecture Sigma-Delta
• Number-of-Inputs
• Resolution 16 bit
• Reference-Type External
• Ratio-S-H:ADC -
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 8.8 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Power-Consumption 3.75 mW
• Interface-Type Serial 3-Wire SPI
• SNR-Signal-to-Noise-Ratio 126 dB
• Gain-Error +/- 0.75 LSB
• Number-of-Converters 1 Converter
• Sampling-Rate 105 S/s
• INL-Integral-Nonlinearity +/- 30 ppm of FSR
