AD7706BNZ

AD7706BNZ Overview

Product belongs to the AD7706 series. This product is categorized as Analog to Digital Converters Tube is the packaging method for this product Weight of 0.057419 oz Through Hole Mounting-Style PDIP-16 The Pseudo-Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 3 Channel Supplier device package: 16-PDIP This product's 500. Data-Interface: SPI, DSP 16 bits The Voltage-Supply-Analog is 2.7 V ~ 3.3 V, 5V. The Voltage Supply Digital for this product is 2.7 V ~ 3.3 V, 5V. Configuration MUX-PGA-ADC The architecture of this product is Sigma-Delta . External is the reference type. 1 units Power-off control: 6.5 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial 3-Wire SPI interface type Signal-to-Noise Ratio of 116 dB The EVAL-AD7706EBZ. The +/- 0.003 %FSR of this product is 0.2%. Number-of-Converters: 1 Converter 500 S/s Sampling Rate Integral Nonlinearity: +/- 0.003 %FSR

AD7706BNZ Image

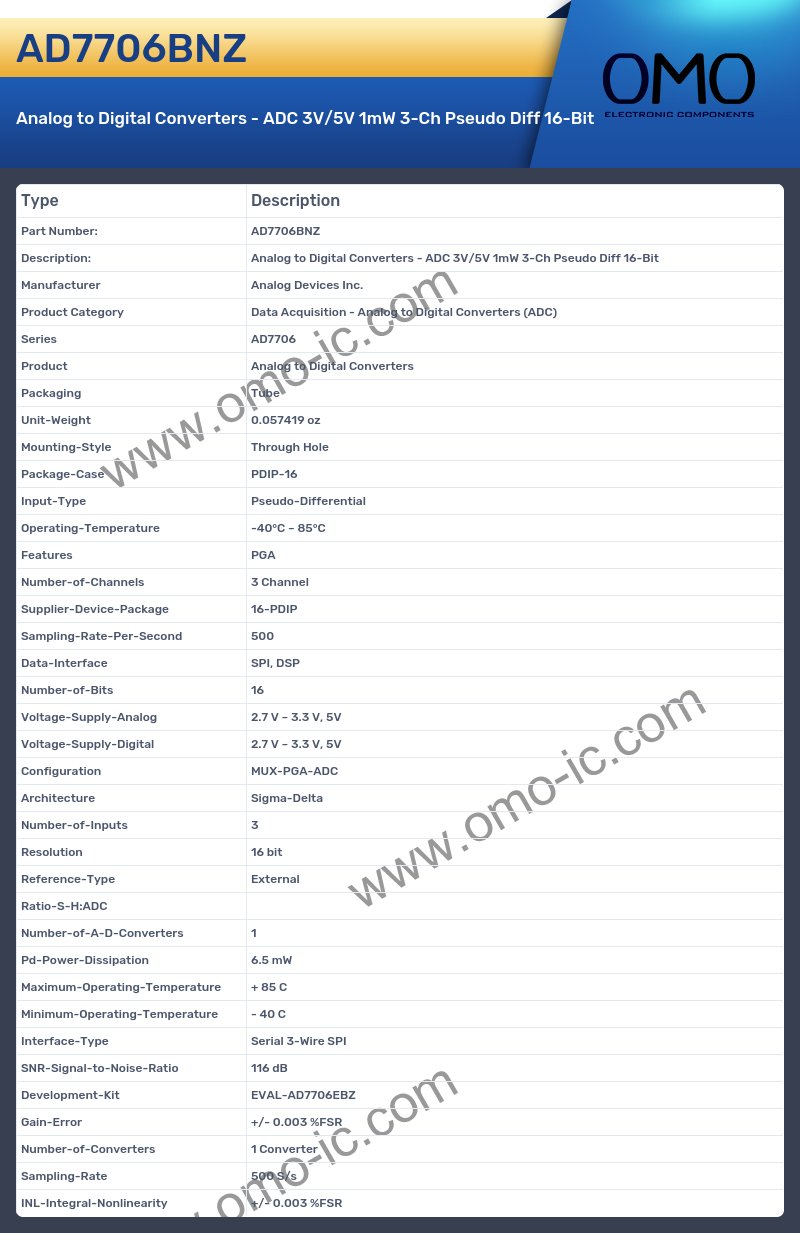

AD7706BNZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD7706
• Product Analog to Digital Converters
• Packaging Tube
• Unit-Weight 0.057419 oz
• Mounting-Style Through Hole
• Package-Case PDIP-16
• Input-Type Pseudo-Differential
• Operating-Temperature -40°C ~ 85°C
• Features PGA
• Number-of-Channels 3 Channel
• Supplier-Device-Package 16-PDIP
• Sampling-Rate-Per-Second 500
• Data-Interface SPI, DSP
• Number-of-Bits 16
• Voltage-Supply-Analog 2.7 V ~ 3.3 V, 5V
• Voltage-Supply-Digital 2.7 V ~ 3.3 V, 5V
• Configuration MUX-PGA-ADC
• Architecture Sigma-Delta
• Number-of-Inputs 3
• Resolution 16 bit
• Reference-Type External
• Ratio-S-H:ADC
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 6.5 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial 3-Wire SPI
• SNR-Signal-to-Noise-Ratio 116 dB
• Development-Kit EVAL-AD7706EBZ
• Gain-Error +/- 0.003 %FSR
• Number-of-Converters 1 Converter
• Sampling-Rate 500 S/s
• INL-Integral-Nonlinearity +/- 0.003 %FSR
