AD7641BCPZ

AD7641BCPZ Overview

Product belongs to the AD7641 series. This product is categorized as Analog to Digital Converters Type: S/H ADC Tray Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style LFCSP-48 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 48-LFCSP-VQ (7x7) This product's 2M. Data-Interface: SPI, Parallel, DSP 18 bits The Voltage-Supply-Analog is 2.37 V ~ 2.63 V. The Voltage Supply Digital for this product is 2.37 V ~ 2.63 V. Configuration S/H-ADC The architecture of this product is SAR . External, Internal is the reference type. 1 units Power-off control: 92 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product has a Power Consumption of 75 mW. Parallel Serial 2-Wire DSP SPI interface type Signal-to-Noise Ratio of 93.5 dB The EVAL-AD7641EDZ. The 0.25 %FSR of this product is 0.2%. Number-of-Converters: 1 Converter 2 MS/s Sampling Rate Integral Nonlinearity: +/- 3.5 LSB Differential nonlinearity: +/- 2 LSB

AD7641BCPZ Image

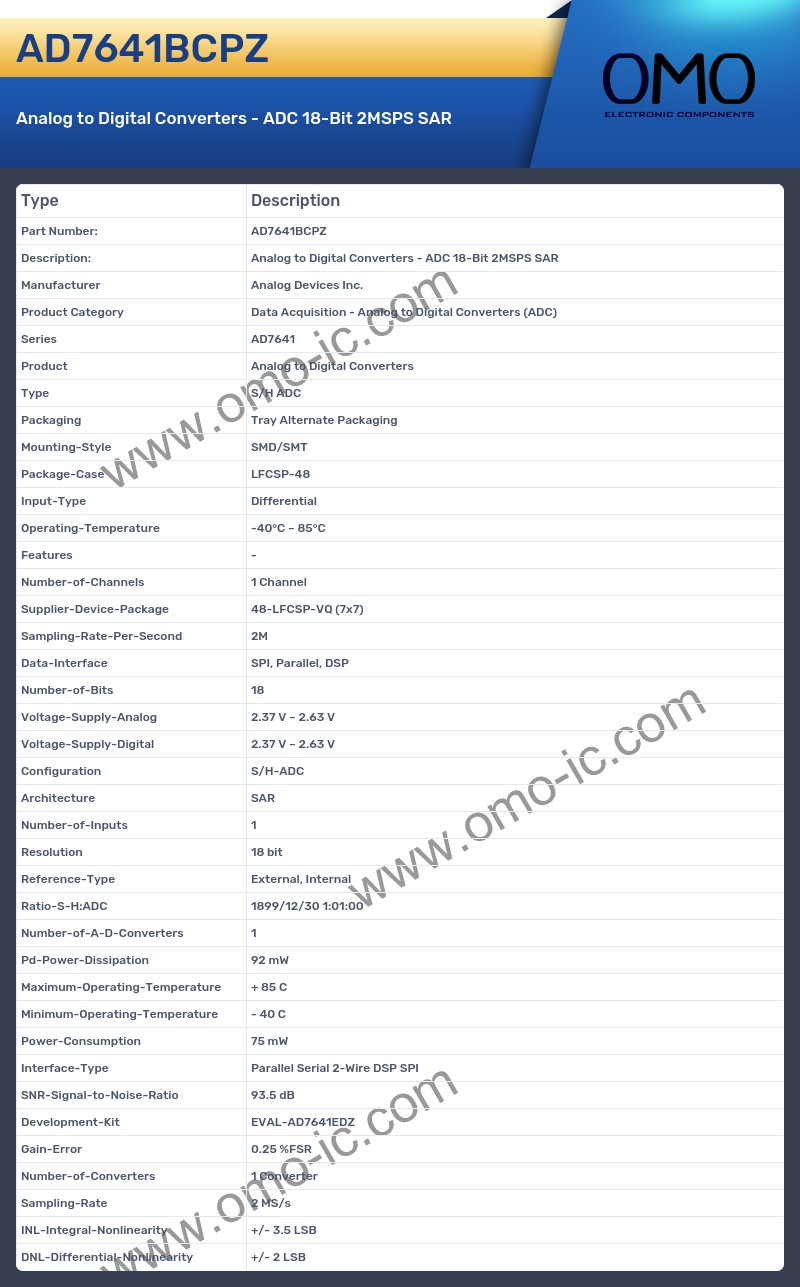

AD7641BCPZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD7641
• Product Analog to Digital Converters
• Type S/H ADC
• Packaging Tray Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case LFCSP-48
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 48-LFCSP-VQ (7x7)
• Sampling-Rate-Per-Second 2M
• Data-Interface SPI, Parallel, DSP
• Number-of-Bits 18
• Voltage-Supply-Analog 2.37 V ~ 2.63 V
• Voltage-Supply-Digital 2.37 V ~ 2.63 V
• Configuration S/H-ADC
• Architecture SAR
• Number-of-Inputs 1
• Resolution 18 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 92 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Power-Consumption 75 mW
• Interface-Type Parallel Serial 2-Wire DSP SPI
• SNR-Signal-to-Noise-Ratio 93.5 dB
• Development-Kit EVAL-AD7641EDZ
• Gain-Error 0.25 %FSR
• Number-of-Converters 1 Converter
• Sampling-Rate 2 MS/s
• INL-Integral-Nonlinearity +/- 3.5 LSB
• DNL-Differential-Nonlinearity +/- 2 LSB
