AD7607BSTZ

AD7607BSTZ Overview

Product belongs to the AD7607 series. This product is categorized as Analog to Digital Converters Type: Data Acquisition System (DAS), ADC Tray Alternate Packaging is the packaging method for this product Weight of 0.012088 oz SMD/SMT Mounting-Style LQFP-64 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Number of channels: 8 Channel Voltage Supply Range: 2.3 V ~ 5.25 V, 4.75 V ~ 5.25 V Supplier device package: 64-LQFP (10x10) Resolution-Bits: 14 b This product's 200k. Data-Interface: SPI, DSP Voltage supply source: Analog and digital Analog and Digital The architecture of this product is SAR . External Internal is the reference type. Power-off control: 142 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product has a Power Consumption of 100 mW. Parallel Serial SPI interface type Signal-to-Noise Ratio of 85.5 dB The EVAL-AD7607EDZ. The +/- 9 LSB of this product is 0.2%. Number-of-Converters: 1 Converter 200 kS/s Sampling Rate Integral Nonlinearity: +/- 0.5 LSB Differential nonlinearity: +/- 0.95 LSB

AD7607BSTZ Image

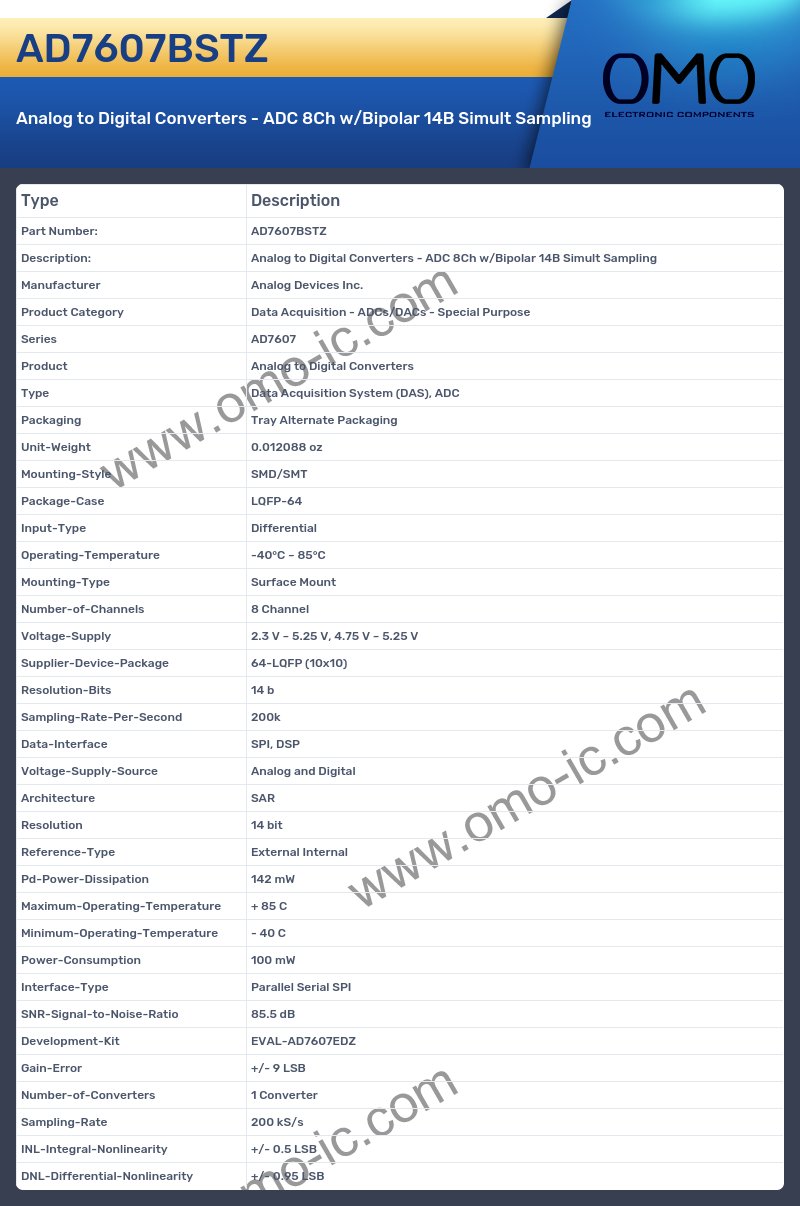

AD7607BSTZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - ADCs/DACs - Special Purpose
• Series AD7607
• Product Analog to Digital Converters
• Type Data Acquisition System (DAS), ADC
• Packaging Tray Alternate Packaging
• Unit-Weight 0.012088 oz
• Mounting-Style SMD/SMT
• Package-Case LQFP-64
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Number-of-Channels 8 Channel
• Voltage-Supply 2.3 V ~ 5.25 V, 4.75 V ~ 5.25 V
• Supplier-Device-Package 64-LQFP (10x10)
• Resolution-Bits 14 b
• Sampling-Rate-Per-Second 200k
• Data-Interface SPI, DSP
• Voltage-Supply-Source Analog and Digital
• Architecture SAR
• Resolution 14 bit
• Reference-Type External Internal
• Pd-Power-Dissipation 142 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Power-Consumption 100 mW
• Interface-Type Parallel Serial SPI
• SNR-Signal-to-Noise-Ratio 85.5 dB
• Development-Kit EVAL-AD7607EDZ
• Gain-Error +/- 9 LSB
• Number-of-Converters 1 Converter
• Sampling-Rate 200 kS/s
• INL-Integral-Nonlinearity +/- 0.5 LSB
• DNL-Differential-Nonlinearity +/- 0.95 LSB
