AD7581JNZ

AD7581JNZ Overview

Product belongs to the AD7581 series. This product is categorized as Analog to Digital Converters Type: Data Acquisition System (DAS), ADC Tube is the packaging method for this product Weight of 0.147798 oz Through Hole Mounting-Style PDIP-28 The Single-Ended for this product is CMOS/TTL. Operational temperature range: 0°C ~ 70°C Through Hole mounting type Number of channels: 8 Channel Voltage Supply Range: 5V Supplier device package: 28-PDIP Resolution-Bits: 8 b This product's 188k. Data-Interface: Parallel Voltage supply source: Analog and digital Single Supply The architecture of this product is SAR . External is the reference type. Power-off control: 8 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Parallel interface type The +/- 6 LSB of this product is 0.2%. Number-of-Converters: 1 Converter 1.5 kS/s Sampling Rate Integral Nonlinearity: +/- 1.875 LSB Differential nonlinearity: +/- 1.875 LSB

AD7581JNZ Image

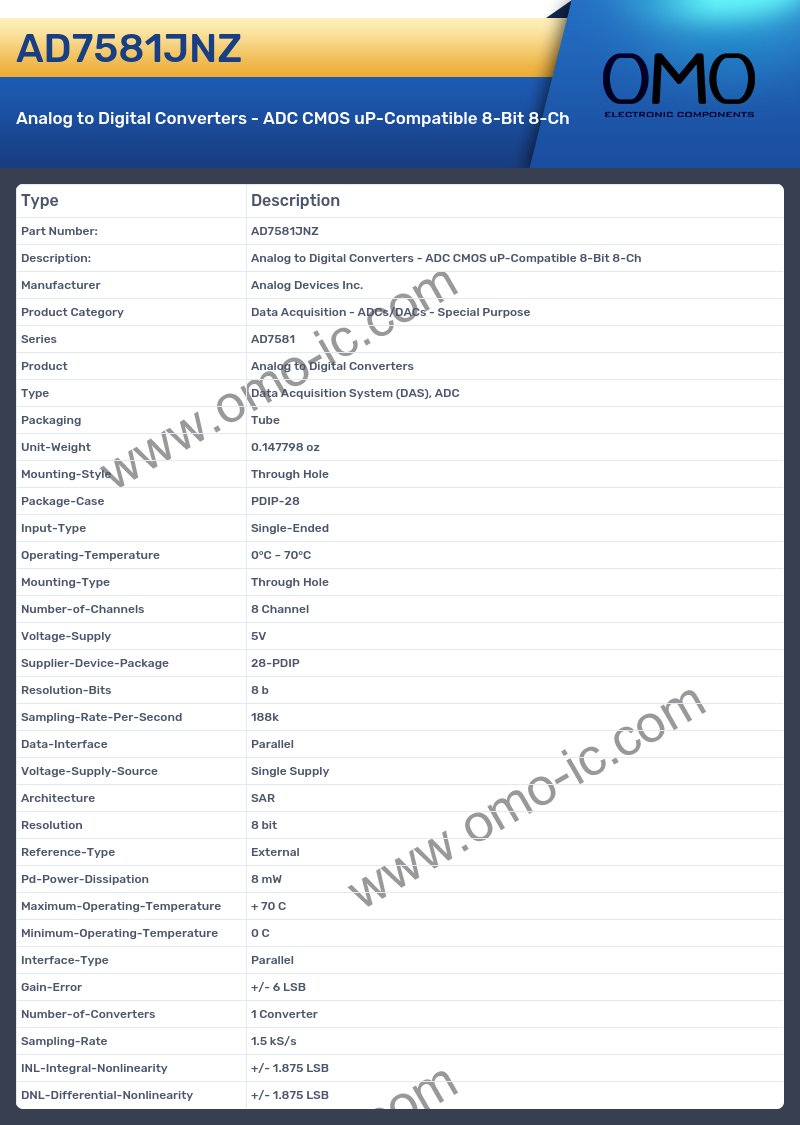

AD7581JNZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - ADCs/DACs - Special Purpose
• Series AD7581
• Product Analog to Digital Converters
• Type Data Acquisition System (DAS), ADC
• Packaging Tube
• Unit-Weight 0.147798 oz
• Mounting-Style Through Hole
• Package-Case PDIP-28
• Input-Type Single-Ended
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Through Hole
• Number-of-Channels 8 Channel
• Voltage-Supply 5V
• Supplier-Device-Package 28-PDIP
• Resolution-Bits 8 b
• Sampling-Rate-Per-Second 188k
• Data-Interface Parallel
• Voltage-Supply-Source Single Supply
• Architecture SAR
• Resolution 8 bit
• Reference-Type External
• Pd-Power-Dissipation 8 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Interface-Type Parallel
• Gain-Error +/- 6 LSB
• Number-of-Converters 1 Converter
• Sampling-Rate 1.5 kS/s
• INL-Integral-Nonlinearity +/- 1.875 LSB
• DNL-Differential-Nonlinearity +/- 1.875 LSB
