AD7574SQ

AD7574SQ Overview

Product belongs to the AD7574 series. This product is categorized as Analog to Digital Converters Tube is the packaging method for this product Through Hole Mounting-Style CDIP-18 The Single Ended for this product is CMOS/TTL. Operational temperature range: -55°C ~ 125°C Number of channels: 1 Channel Supplier device package: 24-CDIP This product's -. Data-Interface: Parallel 8 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration ADC The architecture of this product is SAR . External is the reference type. 1 units Power-off control: 25 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Parallel interface type The +/- 6.5 LSB of this product is 0.2%. Number-of-Converters: 1 Converter Integral Nonlinearity: +/- 0.75 LSB Differential nonlinearity: +/- 0.875 LSB

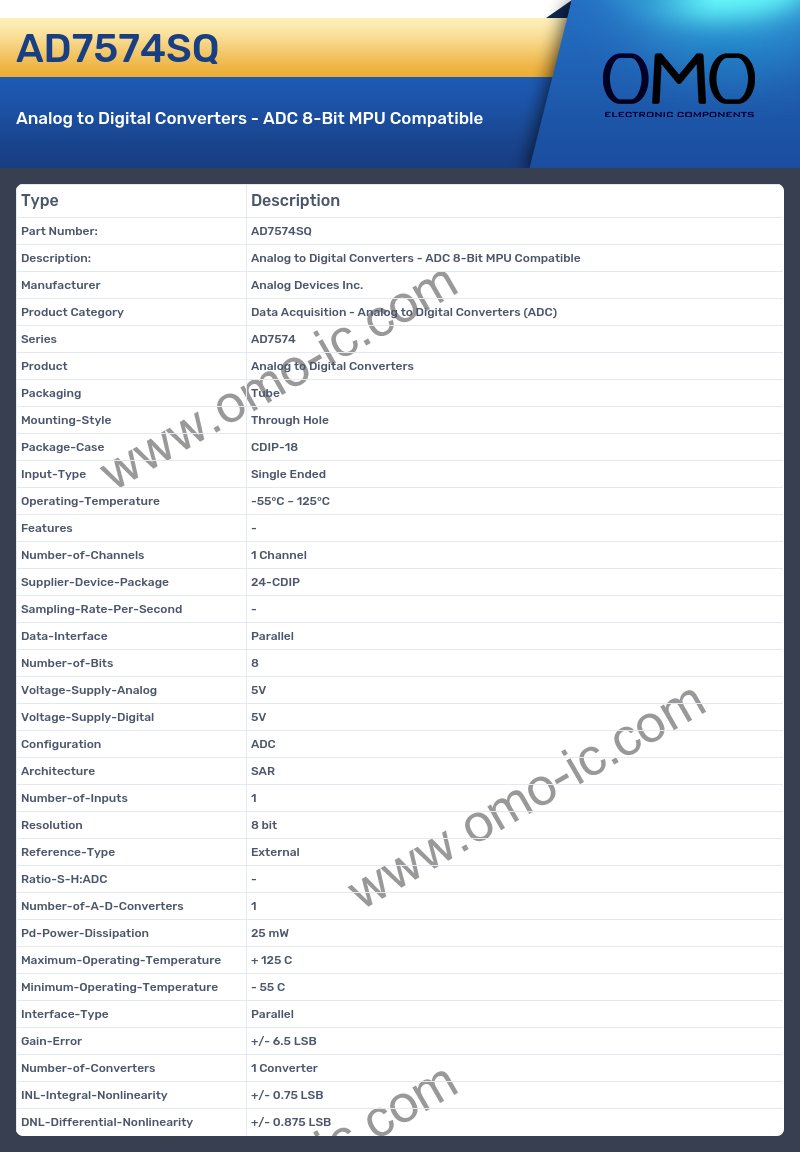

AD7574SQ Image

AD7574SQ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD7574
• Product Analog to Digital Converters
• Packaging Tube
• Mounting-Style Through Hole
• Package-Case CDIP-18
• Input-Type Single Ended
• Operating-Temperature -55°C ~ 125°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 24-CDIP
• Sampling-Rate-Per-Second -
• Data-Interface Parallel
• Number-of-Bits 8
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration ADC
• Architecture SAR
• Number-of-Inputs 1
• Resolution 8 bit
• Reference-Type External
• Ratio-S-H:ADC -
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 25 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Interface-Type Parallel
• Gain-Error +/- 6.5 LSB
• Number-of-Converters 1 Converter
• INL-Integral-Nonlinearity +/- 0.75 LSB
• DNL-Differential-Nonlinearity +/- 0.875 LSB
