AD7568BP

AD7568BP Overview

Product belongs to the AD7568 series. This product is categorized as Digital to Analog Converters Type: General Purpose DAC Tube is the packaging method for this product Weight of 0.084185 oz SMD/SMT Mounting-Style PLCC-44 Operational temperature range: -40°C ~ 85°C Output-Type: Current - Unbuffered Number of channels: 8 Channel Supplier device package: 44-PLCC (16.59x16.59) Data-Interface: SPI 12 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 8 The 550μs (Typ) is an impressive 15 us. Yes Differential-Output Power-off control: 250 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 300 uA is 92 nA. Serial interface type Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V Number-of-Converters: 8 Converter 2 MS/s Sampling Rate Integral Nonlinearity: +/- 0.5 LSB Differential nonlinearity: +/- 0.9 LSB

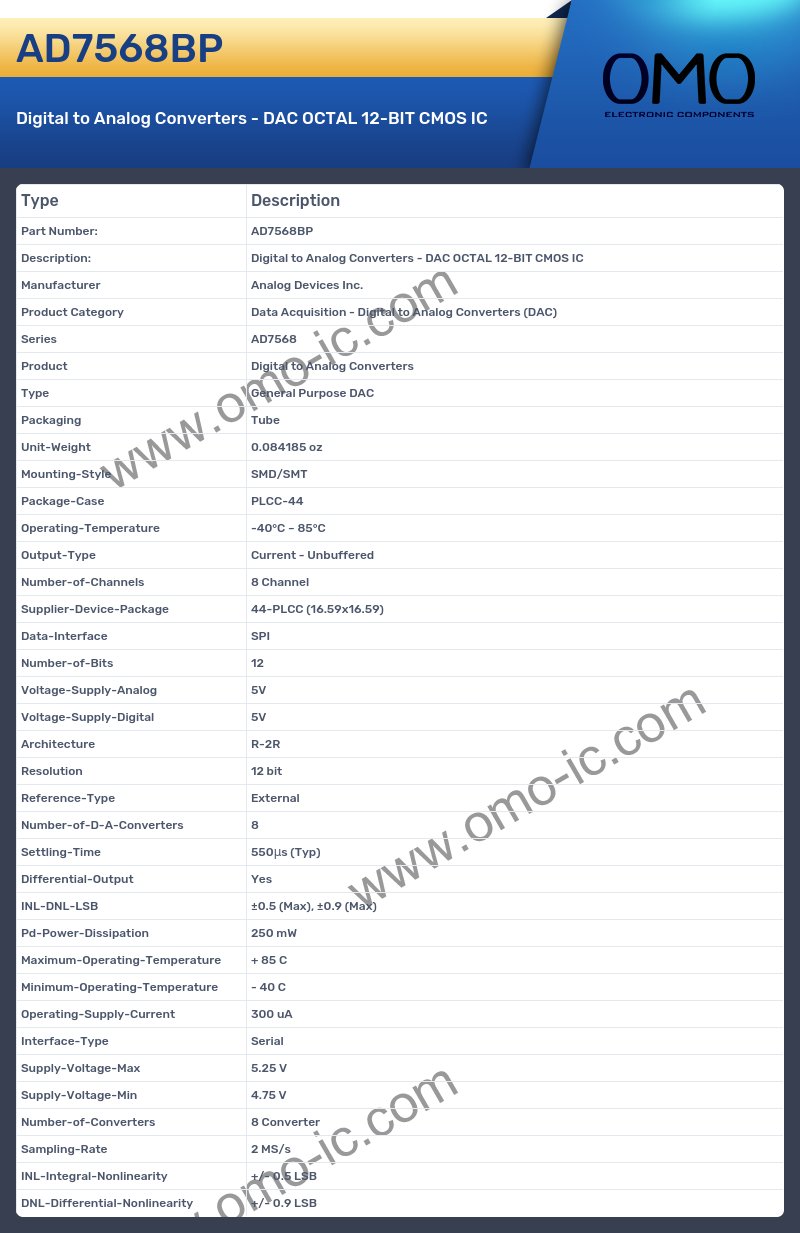

AD7568BP Image

AD7568BP Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series AD7568
• Product Digital to Analog Converters
• Type General Purpose DAC
• Packaging Tube
• Unit-Weight 0.084185 oz
• Mounting-Style SMD/SMT
• Package-Case PLCC-44
• Operating-Temperature -40°C ~ 85°C
• Output-Type Current - Unbuffered
• Number-of-Channels 8 Channel
• Supplier-Device-Package 44-PLCC (16.59x16.59)
• Data-Interface SPI
• Number-of-Bits 12
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Architecture R-2R
• Resolution 12 bit
• Reference-Type External
• Number-of-D-A-Converters 8
• Settling-Time 550μs (Typ)
• Differential-Output Yes
• INL-DNL-LSB ±0.5 (Max), ±0.9 (Max)
• Pd-Power-Dissipation 250 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 300 uA
• Interface-Type Serial
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 4.75 V
• Number-of-Converters 8 Converter
• Sampling-Rate 2 MS/s
• INL-Integral-Nonlinearity +/- 0.5 LSB
• DNL-Differential-Nonlinearity +/- 0.9 LSB
