AD7564ARS-B

AD7564ARS-B Overview

Product belongs to the AD7564 series. This product is categorized as Digital to Analog Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.080001 oz SMD/SMT Mounting-Style SSOP-28 Operational temperature range: -40°C ~ 85°C Output-Type: Current - Unbuffered Number of channels: 4 Channel Supplier device package: 28-SSOP Data-Interface: SPI 12 bits The Voltage-Supply-Analog is 3 V ~ 5.5 V, 5V. The Voltage Supply Digital for this product is 3 V ~ 5.5 V, 5V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 4 The 3.5μs (Typ), 550μs (Typ) is an impressive 15 us. Yes Differential-Output Power-off control: 50 uW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial interface type Maximum supply voltage of 5.5 V Minimum supply voltage is 3 V Number-of-Converters: 4 Converter 1.8 MS/s Sampling Rate

AD7564ARS-B Image

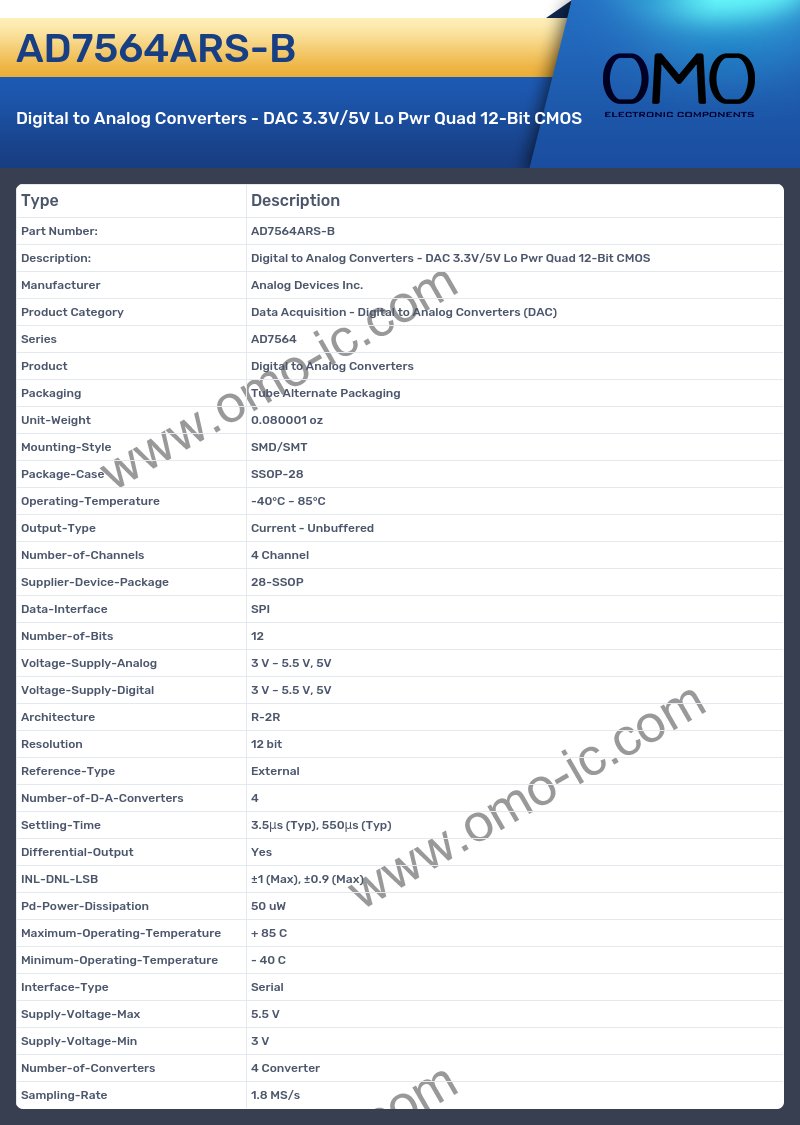

AD7564ARS-B Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series AD7564
• Product Digital to Analog Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.080001 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-28
• Operating-Temperature -40°C ~ 85°C
• Output-Type Current - Unbuffered
• Number-of-Channels 4 Channel
• Supplier-Device-Package 28-SSOP
• Data-Interface SPI
• Number-of-Bits 12
• Voltage-Supply-Analog 3 V ~ 5.5 V, 5V
• Voltage-Supply-Digital 3 V ~ 5.5 V, 5V
• Architecture R-2R
• Resolution 12 bit
• Reference-Type External
• Number-of-D-A-Converters 4
• Settling-Time 3.5μs (Typ), 550μs (Typ)
• Differential-Output Yes
• INL-DNL-LSB ±1 (Max), ±0.9 (Max)
• Pd-Power-Dissipation 50 uW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 3 V
• Number-of-Converters 4 Converter
• Sampling-Rate 1.8 MS/s
