AD7545JPZ

AD7545JPZ Overview

Product belongs to the AD7545 series. This product is categorized as Digital to Analog Converters Tube is the packaging method for this product Weight of 0.025468 oz SMD/SMT Mounting-Style PLCC-20 Operational temperature range: 0°C ~ 70°C Output-Type: Current - Unbuffered Supplier device package: 20-PLCC (9x9) Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is 5 V ~ 15 V. The Voltage Supply Digital for this product is 5 V ~ 15 V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 1 The 2μs is an impressive 15 us. No Differential-Output

AD7545JPZ Image

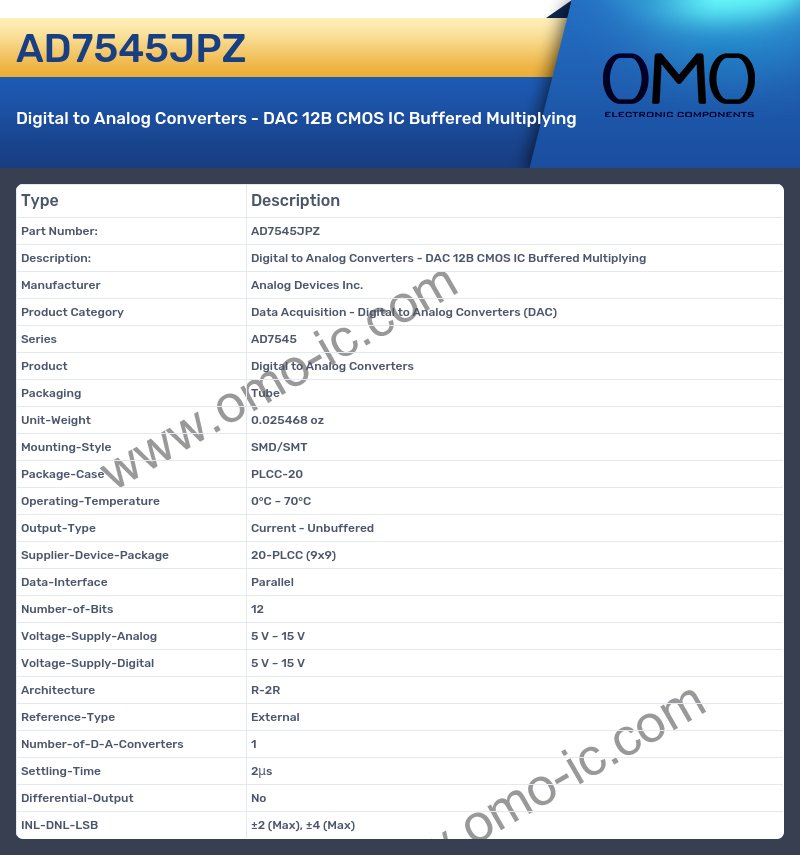

AD7545JPZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series AD7545
• Product Digital to Analog Converters
• Packaging Tube
• Unit-Weight 0.025468 oz
• Mounting-Style SMD/SMT
• Package-Case PLCC-20
• Operating-Temperature 0°C ~ 70°C
• Output-Type Current - Unbuffered
• Supplier-Device-Package 20-PLCC (9x9)
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog 5 V ~ 15 V
• Voltage-Supply-Digital 5 V ~ 15 V
• Architecture R-2R
• Reference-Type External
• Number-of-D-A-Converters 1
• Settling-Time 2μs
• Differential-Output No
• INL-DNL-LSB ±2 (Max), ±4 (Max)
