AD7543KN

AD7543KN Overview

Product belongs to the AD7543 series. This product is categorized as Digital to Analog Converters Tube is the packaging method for this product Weight of 0.057419 oz Through Hole Mounting-Style PDIP-16 Operational temperature range: -40°C ~ 85°C Output-Type: Current - Unbuffered Supplier device package: 16-PDIP Data-Interface: Serial 12 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 1 The 2μs is an impressive 15 us. Yes Differential-Output

AD7543KN Image

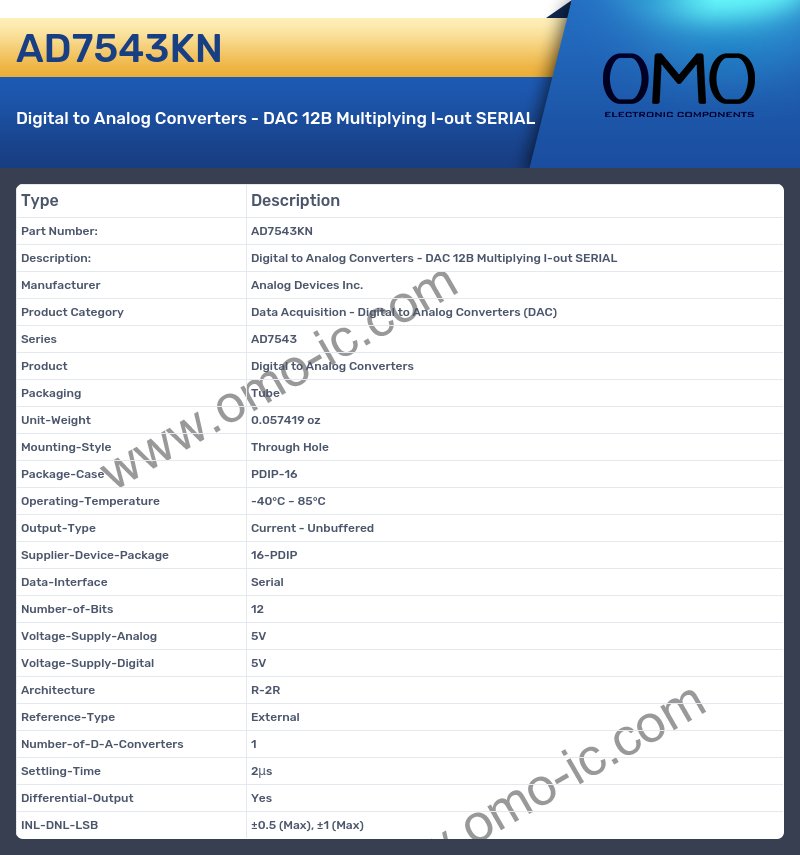

AD7543KN Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series AD7543
• Product Digital to Analog Converters
• Packaging Tube
• Unit-Weight 0.057419 oz
• Mounting-Style Through Hole
• Package-Case PDIP-16
• Operating-Temperature -40°C ~ 85°C
• Output-Type Current - Unbuffered
• Supplier-Device-Package 16-PDIP
• Data-Interface Serial
• Number-of-Bits 12
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Architecture R-2R
• Reference-Type External
• Number-of-D-A-Converters 1
• Settling-Time 2μs
• Differential-Output Yes
• INL-DNL-LSB ±0.5 (Max), ±1 (Max)
