AD7541AKR

AD7541AKR Overview

Product belongs to the AD7541A series. This product is categorized as Digital to Analog Converters Type: General Purpose DAC Tube is the packaging method for this product SMD/SMT Mounting-Style SOIC-18 Operational temperature range: 0°C ~ 70°C Output-Type: Current - Unbuffered Number of channels: 1 Channel Supplier device package: 18-SOIC Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is 5 V ~ 16 V. The Voltage Supply Digital for this product is 5 V ~ 16 V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 1 The 600ns (Typ) is an impressive 15 us. Yes Differential-Output Power-off control: 450 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 2 mA is 92 nA. Parallel interface type Maximum supply voltage of 16 V Minimum supply voltage is 5 V Number-of-Converters: 1 Converter Integral Nonlinearity: +/- 0.5 LSB Differential nonlinearity: +/- 1 LSB

AD7541AKR Image

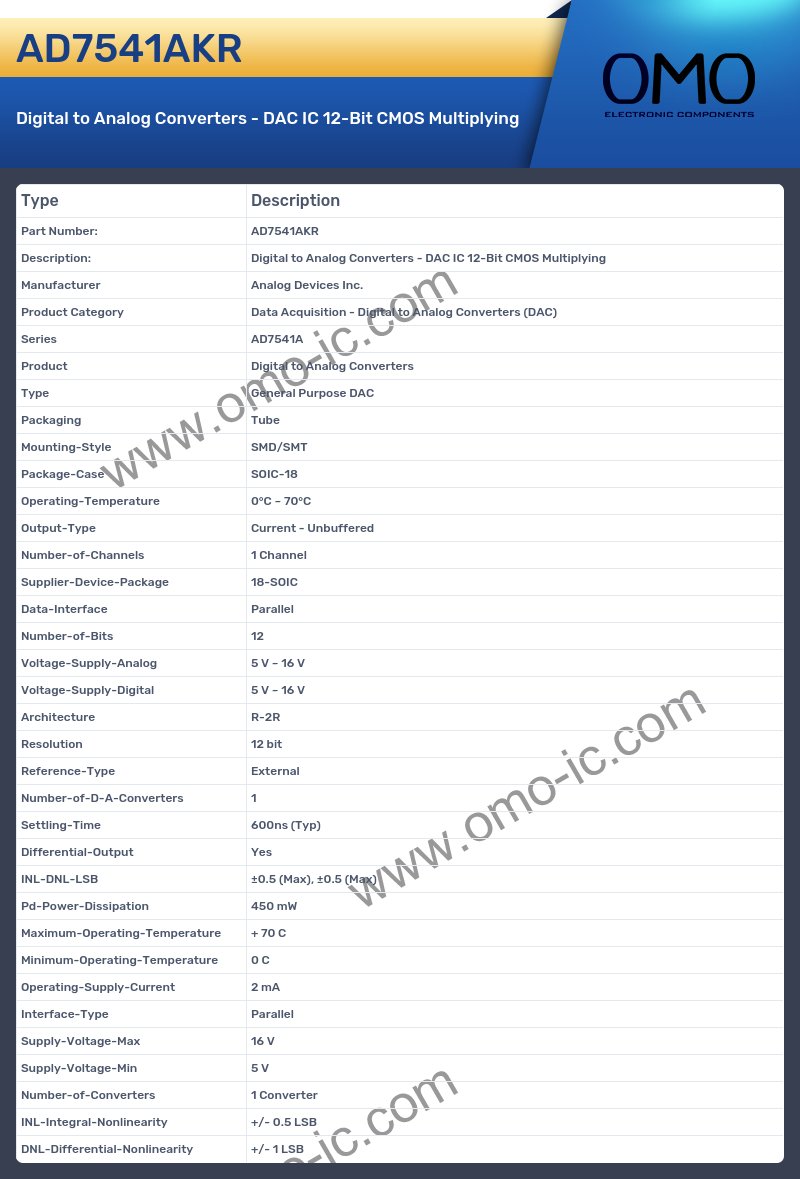

AD7541AKR Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series AD7541A
• Product Digital to Analog Converters
• Type General Purpose DAC
• Packaging Tube
• Mounting-Style SMD/SMT
• Package-Case SOIC-18
• Operating-Temperature 0°C ~ 70°C
• Output-Type Current - Unbuffered
• Number-of-Channels 1 Channel
• Supplier-Device-Package 18-SOIC
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog 5 V ~ 16 V
• Voltage-Supply-Digital 5 V ~ 16 V
• Architecture R-2R
• Resolution 12 bit
• Reference-Type External
• Number-of-D-A-Converters 1
• Settling-Time 600ns (Typ)
• Differential-Output Yes
• INL-DNL-LSB ±0.5 (Max), ±0.5 (Max)
• Pd-Power-Dissipation 450 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 2 mA
• Interface-Type Parallel
• Supply-Voltage-Max 16 V
• Supply-Voltage-Min 5 V
• Number-of-Converters 1 Converter
• INL-Integral-Nonlinearity +/- 0.5 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
