AD7524SR-EP

AD7524SR-EP Overview

Product belongs to the AD7524 series. This product is categorized as Digital to Analog Converters Tube Alternate Packaging is the packaging method for this product 16-SOIC (0.154", 3.90mm Width) Operational temperature range: -55°C ~ 125°C Output-Type: Current - Unbuffered Supplier device package: 16-SOIC Data-Interface: Parallel 8 bits The Voltage-Supply-Analog is 5 V ~ 15 V. The Voltage Supply Digital for this product is 5 V ~ 15 V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 1 The 500μs is an impressive 15 us. Yes Differential-Output

AD7524SR-EP Image

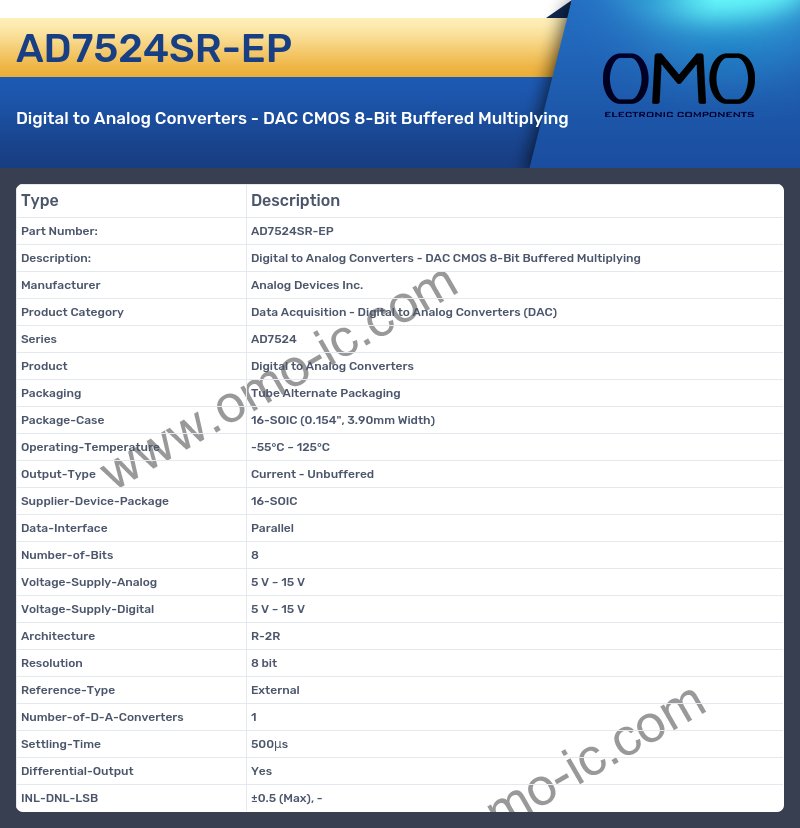

AD7524SR-EP Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series AD7524
• Product Digital to Analog Converters
• Packaging Tube Alternate Packaging
• Package-Case 16-SOIC (0.154", 3.90mm Width)
• Operating-Temperature -55°C ~ 125°C
• Output-Type Current - Unbuffered
• Supplier-Device-Package 16-SOIC
• Data-Interface Parallel
• Number-of-Bits 8
• Voltage-Supply-Analog 5 V ~ 15 V
• Voltage-Supply-Digital 5 V ~ 15 V
• Architecture R-2R
• Resolution 8 bit
• Reference-Type External
• Number-of-D-A-Converters 1
• Settling-Time 500μs
• Differential-Output Yes
• INL-DNL-LSB ±0.5 (Max), -
