AD75019JPZ

AD75019JPZ Overview

Product belongs to the AD75019 series. This product is categorized as Analog Crosspoint Switches Tube is the packaging method for this product Weight of 0.084185 oz SMD/SMT Mounting-Style PLCC-44 The - for this product is CMOS/TTL. Operational temperature range: -25°C ~ 85°C Surface Mount mounting type Output-Type: - Product function is Crosspoint Switch. Supplier device package: 44-PLCC (16.59x16.59) - is 8. Voltage supply source: Analog and digital Single, Dual Supply Configuration 16 x 16 Circuit type: 1 x 16:16 300 Ohm maximum on-state resistance Voltage supply range: 4.5 V ~ 5.5 V, ±12 V This product has a 800μA of 200μA. The - 20 Mhz bandwidth Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 24 V supply voltage for reliable performance. Maximum supply voltage of 12 V Minimum supply voltage is 12 V Maximum dual supply voltage: 25.2 V 5.5 V Minimum dual supply voltage of 9 V - 20.7 V 4.5 V Triple supply type Max on-resistance of 500 Ohms

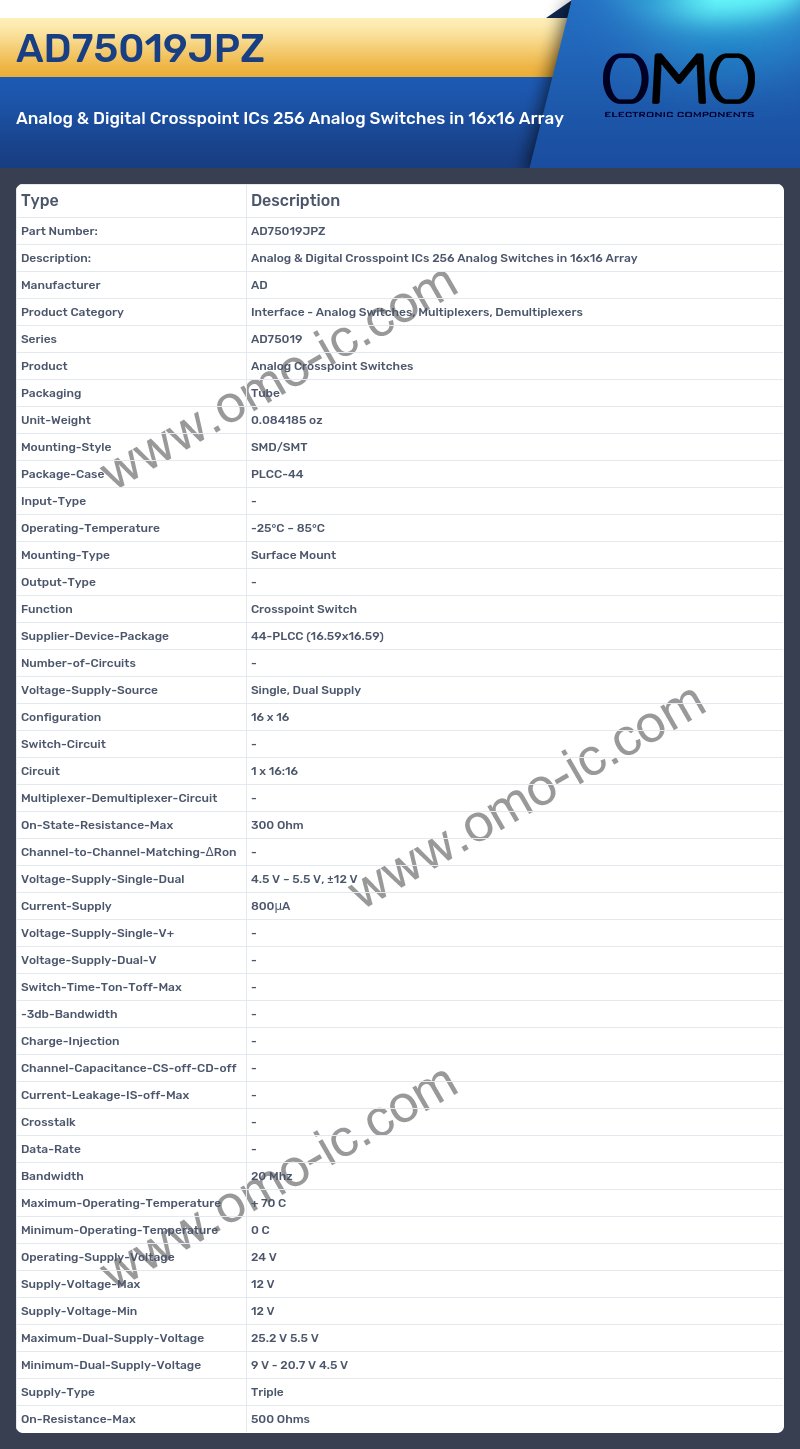

AD75019JPZ Image

AD75019JPZ Specifications

• Manufacturer AD
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• Series AD75019
• Product Analog Crosspoint Switches
• Packaging Tube
• Unit-Weight 0.084185 oz
• Mounting-Style SMD/SMT
• Package-Case PLCC-44
• Input-Type -
• Operating-Temperature -25°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type -
• Function Crosspoint Switch
• Supplier-Device-Package 44-PLCC (16.59x16.59)
• Number-of-Circuits -
• Voltage-Supply-Source Single, Dual Supply
• Configuration 16 x 16
• Switch-Circuit -
• Circuit 1 x 16:16
• Multiplexer-Demultiplexer-Circuit -
• On-State-Resistance-Max 300 Ohm
• Channel-to-Channel-Matching-ΔRon -
• Voltage-Supply-Single-Dual 4.5 V ~ 5.5 V, ±12 V
• Current-Supply 800μA
• Voltage-Supply-Single-V+ -
• Voltage-Supply-Dual-V -
• Switch-Time-Ton-Toff-Max -
• -3db-Bandwidth -
• Charge-Injection -
• Channel-Capacitance-CS-off-CD-off -
• Current-Leakage-IS-off-Max -
• Crosstalk -
• Data-Rate -
• Bandwidth 20 Mhz
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 24 V
• Supply-Voltage-Max 12 V
• Supply-Voltage-Min 12 V
• Maximum-Dual-Supply-Voltage 25.2 V 5.5 V
• Minimum-Dual-Supply-Voltage 9 V - 20.7 V 4.5 V
• Supply-Type Triple
• On-Resistance-Max 500 Ohms
