AD7490BRUZ

AD7490BRUZ Overview

Product belongs to the AD7490 series. This product is categorized as Analog to Digital Converters Type: S/H ADC Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.014215 oz SMD/SMT Mounting-Style TSSOP-28 The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 16 Channel Supplier device package: 28-TSSOP This product's 1M. Data-Interface: SPI, DSP 12 bits The Voltage-Supply-Analog is 2.7 V ~ 5.25 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.25 V. Configuration MUX-S/H-ADC The architecture of this product is SAR . External is the reference type. 1 units Power-off control: 12.5 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial SPI interface type Signal-to-Noise Ratio of 69.5 dB The EVAL-AD7490SDZ. The +/- 2 LSB of this product is 0.2%. Number-of-Converters: 1 Converter 1 MS/s Sampling Rate Integral Nonlinearity: +/- 1 LSB Differential nonlinearity: - 0.95 LSB/1.5 LSB

AD7490BRUZ Image

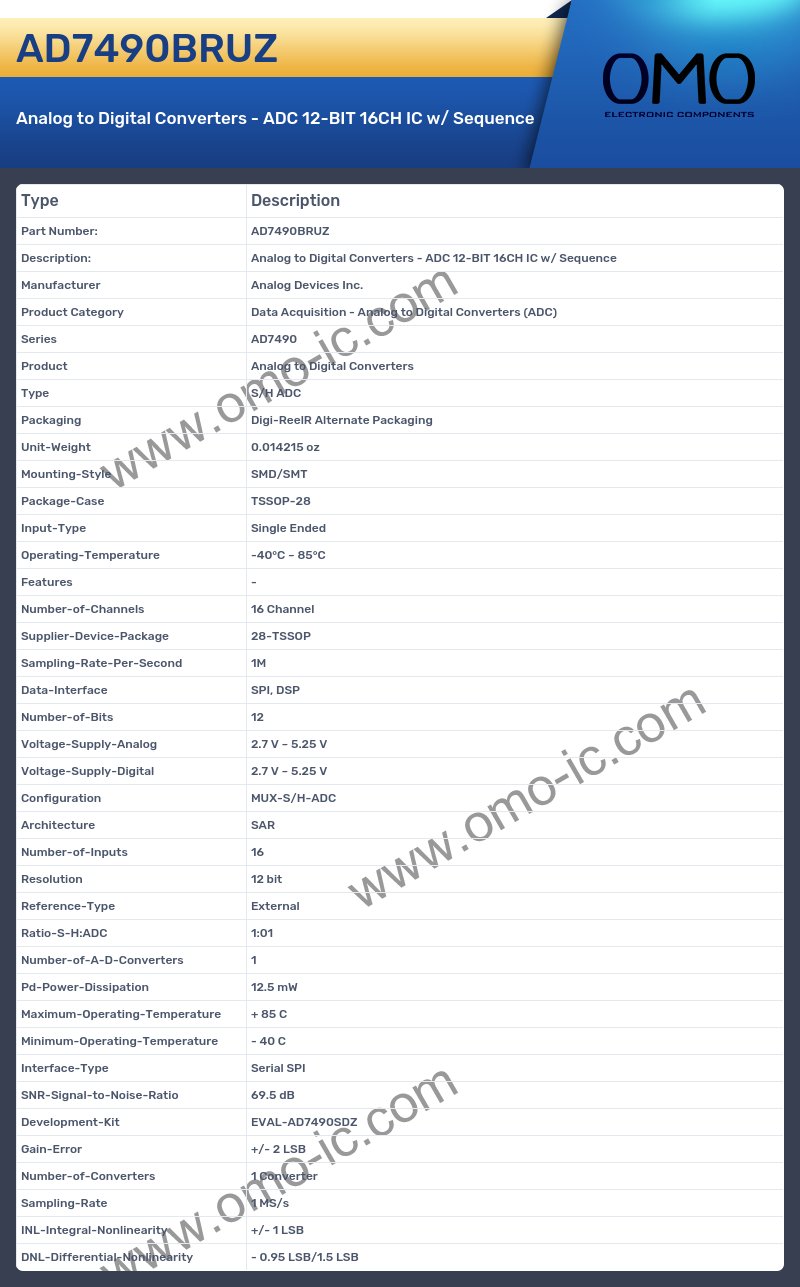

AD7490BRUZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD7490
• Product Analog to Digital Converters
• Type S/H ADC
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.014215 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-28
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 16 Channel
• Supplier-Device-Package 28-TSSOP
• Sampling-Rate-Per-Second 1M
• Data-Interface SPI, DSP
• Number-of-Bits 12
• Voltage-Supply-Analog 2.7 V ~ 5.25 V
• Voltage-Supply-Digital 2.7 V ~ 5.25 V
• Configuration MUX-S/H-ADC
• Architecture SAR
• Number-of-Inputs 16
• Resolution 12 bit
• Reference-Type External
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 12.5 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial SPI
• SNR-Signal-to-Noise-Ratio 69.5 dB
• Development-Kit EVAL-AD7490SDZ
• Gain-Error +/- 2 LSB
• Number-of-Converters 1 Converter
• Sampling-Rate 1 MS/s
• INL-Integral-Nonlinearity +/- 1 LSB
• DNL-Differential-Nonlinearity - 0.95 LSB/1.5 LSB
