AD7367BRUZ

AD7367BRUZ Overview

Product belongs to the iCMOSR series. This product is categorized as Analog to Digital Converters Type: S/H ADC Tube Alternate Packaging is the packaging method for this product Weight of 0.007478 oz SMD/SMT Mounting-Style TSSOP-24 The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 4 Channel Supplier device package: 24-TSSOP This product's 1M. Data-Interface: SPI, DSP 14 bits The Voltage-Supply-Analog is ±11.5 V ~ 16.5 V. The Voltage Supply Digital for this product is 5V. Configuration MUX-S/H-ADC The architecture of this product is SAR . External, Internal is the reference type. 2 units Power-off control: 88.7 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product has a Power Consumption of 80.7 mW. Serial SPI interface type Signal-to-Noise Ratio of 76 dB The EVAL-AD7367SDZ. The +/- 20 LSB of this product is 0.2%. Number-of-Converters: 2 Converter 1 MS/s Sampling Rate Integral Nonlinearity: +/- 3.5 LSB Differential nonlinearity: +/- 0.9 LSB

AD7367BRUZ Image

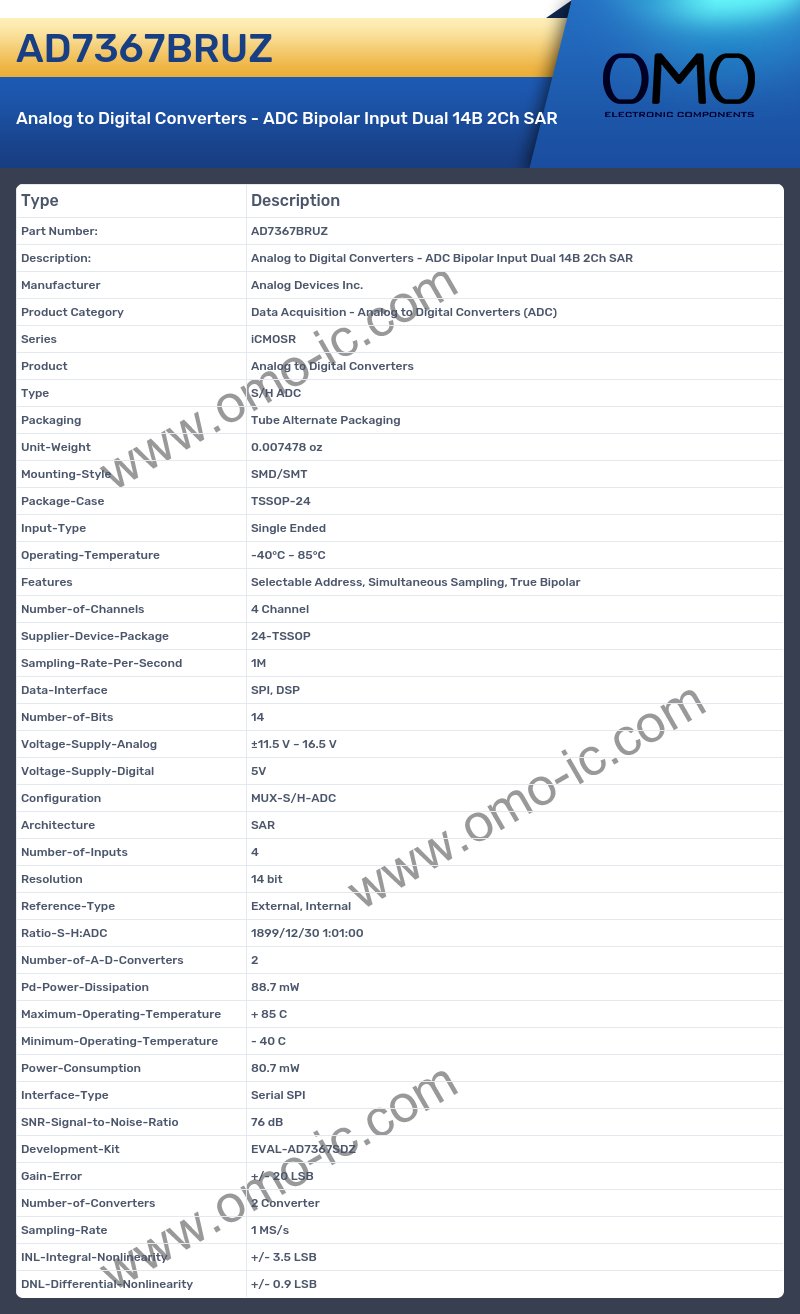

AD7367BRUZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series iCMOSR
• Product Analog to Digital Converters
• Type S/H ADC
• Packaging Tube Alternate Packaging
• Unit-Weight 0.007478 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-24
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features Selectable Address, Simultaneous Sampling, True Bipolar
• Number-of-Channels 4 Channel
• Supplier-Device-Package 24-TSSOP
• Sampling-Rate-Per-Second 1M
• Data-Interface SPI, DSP
• Number-of-Bits 14
• Voltage-Supply-Analog ±11.5 V ~ 16.5 V
• Voltage-Supply-Digital 5V
• Configuration MUX-S/H-ADC
• Architecture SAR
• Number-of-Inputs 4
• Resolution 14 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 2
• Pd-Power-Dissipation 88.7 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Power-Consumption 80.7 mW
• Interface-Type Serial SPI
• SNR-Signal-to-Noise-Ratio 76 dB
• Development-Kit EVAL-AD7367SDZ
• Gain-Error +/- 20 LSB
• Number-of-Converters 2 Converter
• Sampling-Rate 1 MS/s
• INL-Integral-Nonlinearity +/- 3.5 LSB
• DNL-Differential-Nonlinearity +/- 0.9 LSB
