AD7273BUJZ-REEL7

AD7273BUJZ-REEL7 Overview

Product belongs to the AD7273 series. This product is categorized as Analog to Digital Converters Type: S/H ADC Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style TSOT-8 The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C Number of channels: 1 Channel Supplier device package: TSOT-23-8 This product's 3M. Data-Interface: SPI, DSP 10 bits The Voltage-Supply-Analog is 2.35 V ~ 3.6 V. The Voltage Supply Digital for this product is 2.35 V ~ 3.6 V. Configuration S/H-ADC The architecture of this product is SAR . External is the reference type. 1 units Power-off control: 18 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product has a Power Consumption of 9.6 mW. Serial SPI interface type The +/- 1.5 LSB of this product is 0.2%. Number-of-Converters: 1 Converter 3 MS/s Sampling Rate Integral Nonlinearity: +/- 0.5 LSB Differential nonlinearity: +/- 0.5 LSB

AD7273BUJZ-REEL7 Image

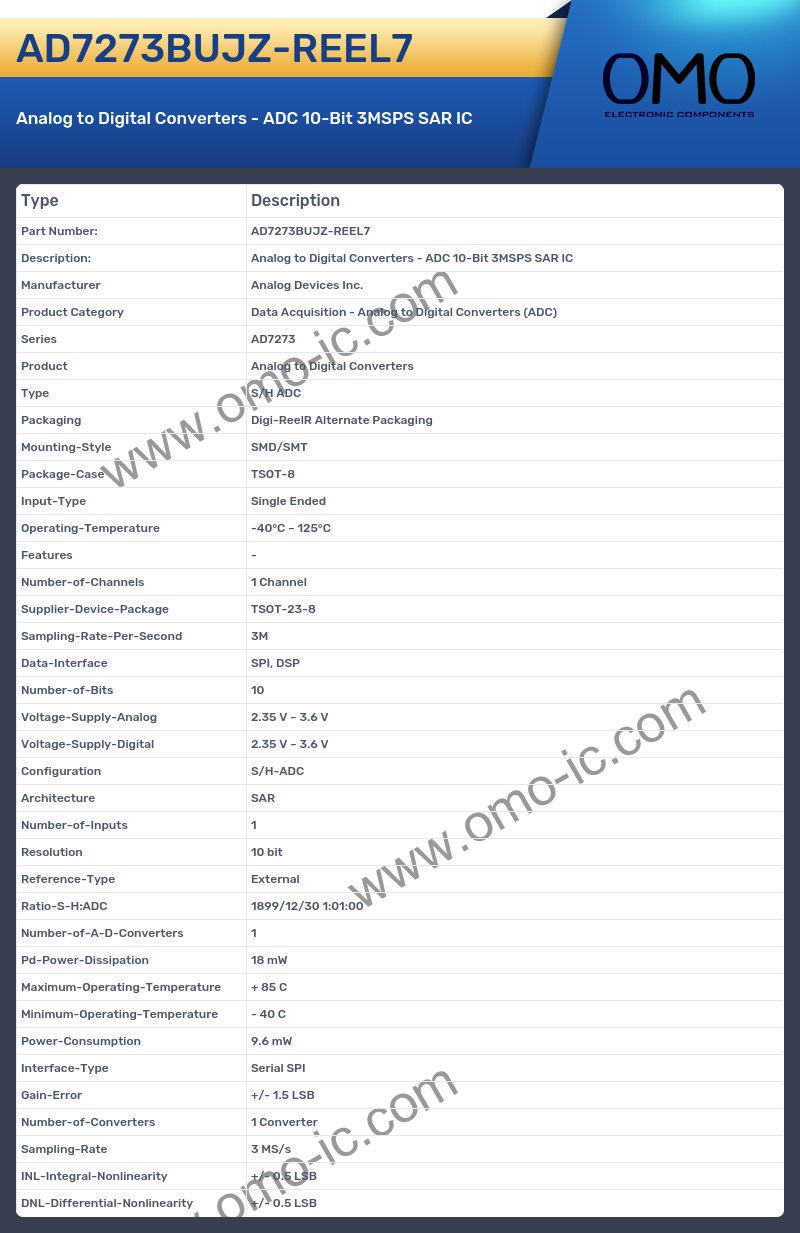

AD7273BUJZ-REEL7 Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD7273
• Product Analog to Digital Converters
• Type S/H ADC
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case TSOT-8
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 125°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package TSOT-23-8
• Sampling-Rate-Per-Second 3M
• Data-Interface SPI, DSP
• Number-of-Bits 10
• Voltage-Supply-Analog 2.35 V ~ 3.6 V
• Voltage-Supply-Digital 2.35 V ~ 3.6 V
• Configuration S/H-ADC
• Architecture SAR
• Number-of-Inputs 1
• Resolution 10 bit
• Reference-Type External
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 18 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Power-Consumption 9.6 mW
• Interface-Type Serial SPI
• Gain-Error +/- 1.5 LSB
• Number-of-Converters 1 Converter
• Sampling-Rate 3 MS/s
• INL-Integral-Nonlinearity +/- 0.5 LSB
• DNL-Differential-Nonlinearity +/- 0.5 LSB
