AD7265BSUZ

AD7265BSUZ Overview

Product belongs to the AD7265 series. This product is categorized as Analog to Digital Converters Type: S/H ADC Tray Alternate Packaging is the packaging method for this product Weight of 0.002568 oz SMD/SMT Mounting-Style TQFP-32 The Differential, Pseudo-Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C Number of channels: 12 Channel Supplier device package: 32-TQFP (7x7) This product's 1M. Data-Interface: SPI, DSP 12 bits The Voltage-Supply-Analog is 2.7 V ~ 5.25 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.25 V. Configuration MUX-S/H-ADC The architecture of this product is SAR . External, Internal is the reference type. 2 units Power-off control: 21 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Serial SPI interface type Signal-to-Noise Ratio of 71 dB The EVAL-AD7265EDZ. The +/- 2.5 LSB of this product is 0.2%. Number-of-Converters: 2 Converter 1 MS/s Sampling Rate Integral Nonlinearity: +/- 1.5 LSB Differential nonlinearity: - 0.99 LSB/1.5 LSB

AD7265BSUZ Image

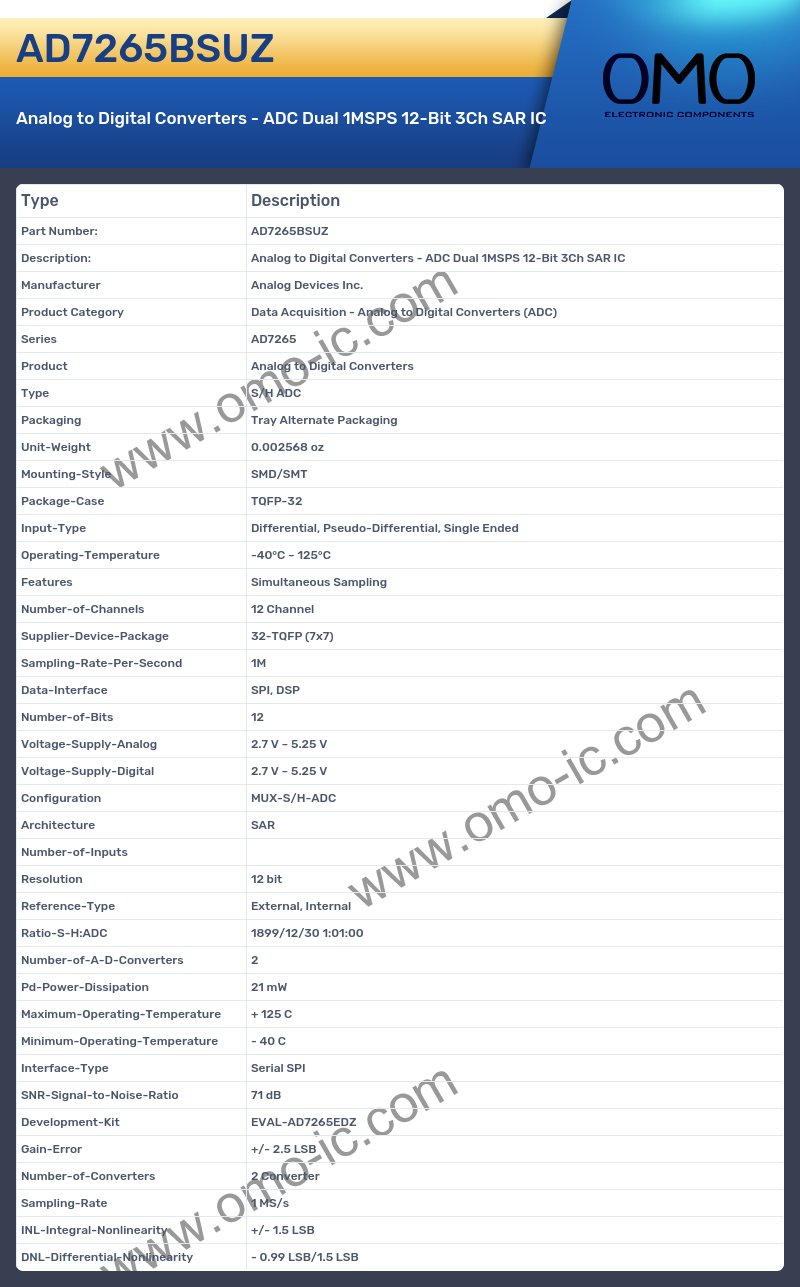

AD7265BSUZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD7265
• Product Analog to Digital Converters
• Type S/H ADC
• Packaging Tray Alternate Packaging
• Unit-Weight 0.002568 oz
• Mounting-Style SMD/SMT
• Package-Case TQFP-32
• Input-Type Differential, Pseudo-Differential, Single Ended
• Operating-Temperature -40°C ~ 125°C
• Features Simultaneous Sampling
• Number-of-Channels 12 Channel
• Supplier-Device-Package 32-TQFP (7x7)
• Sampling-Rate-Per-Second 1M
• Data-Interface SPI, DSP
• Number-of-Bits 12
• Voltage-Supply-Analog 2.7 V ~ 5.25 V
• Voltage-Supply-Digital 2.7 V ~ 5.25 V
• Configuration MUX-S/H-ADC
• Architecture SAR
• Number-of-Inputs
• Resolution 12 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 2
• Pd-Power-Dissipation 21 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial SPI
• SNR-Signal-to-Noise-Ratio 71 dB
• Development-Kit EVAL-AD7265EDZ
• Gain-Error +/- 2.5 LSB
• Number-of-Converters 2 Converter
• Sampling-Rate 1 MS/s
• INL-Integral-Nonlinearity +/- 1.5 LSB
• DNL-Differential-Nonlinearity - 0.99 LSB/1.5 LSB
