AD7247ABNZ

AD7247ABNZ Overview

Product belongs to the DACPORTR series. This product is categorized as Digital to Analog Converters Tube is the packaging method for this product Weight of 0.131925 oz Through Hole Mounting-Style PDIP-24 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Number of channels: 2 Channel Supplier device package: 24-PDIP Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is ±10.8 V ~ 16.5 V. The Voltage Supply Digital for this product is 10.8 V ~ 16.5 V. The architecture of this product is R-2R . External, Internal is the reference type. Number of D-A converters: 2 The 8μs is an impressive 15 us. No Differential-Output Power-off control: 300 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Parallel interface type Maximum supply voltage of 16.5 V Minimum supply voltage is 10.8 V Number-of-Converters: 2 Converter 125 kS/s Sampling Rate

AD7247ABNZ Image

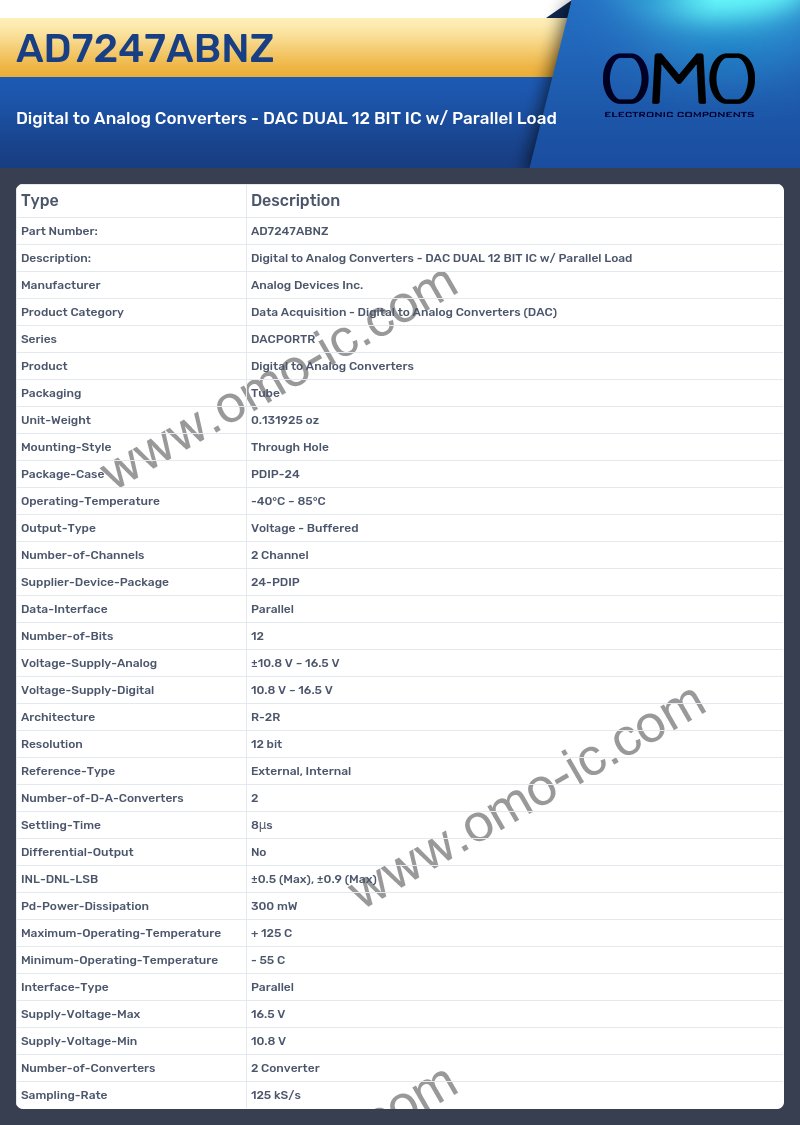

AD7247ABNZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DACPORTR
• Product Digital to Analog Converters
• Packaging Tube
• Unit-Weight 0.131925 oz
• Mounting-Style Through Hole
• Package-Case PDIP-24
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Number-of-Channels 2 Channel
• Supplier-Device-Package 24-PDIP
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog ±10.8 V ~ 16.5 V
• Voltage-Supply-Digital 10.8 V ~ 16.5 V
• Architecture R-2R
• Resolution 12 bit
• Reference-Type External, Internal
• Number-of-D-A-Converters 2
• Settling-Time 8μs
• Differential-Output No
• INL-DNL-LSB ±0.5 (Max), ±0.9 (Max)
• Pd-Power-Dissipation 300 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Interface-Type Parallel
• Supply-Voltage-Max 16.5 V
• Supply-Voltage-Min 10.8 V
• Number-of-Converters 2 Converter
• Sampling-Rate 125 kS/s
