AD7228CQ Overview

Product belongs to the AD7228 series. This product is categorized as Digital to Analog Converters Tube is the packaging method for this product Through Hole Mounting-Style CDIP-24 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Supplier device package: 24-CDIP Data-Interface: Parallel 8 bits The Voltage-Supply-Analog is 10.8 V ~ 16.5 V, -5V. The Voltage Supply Digital for this product is 13.5 V ~ 16.5 V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 8 The 5μs, 7μs is an impressive 15 us. No Differential-Output

AD7228CQ Image

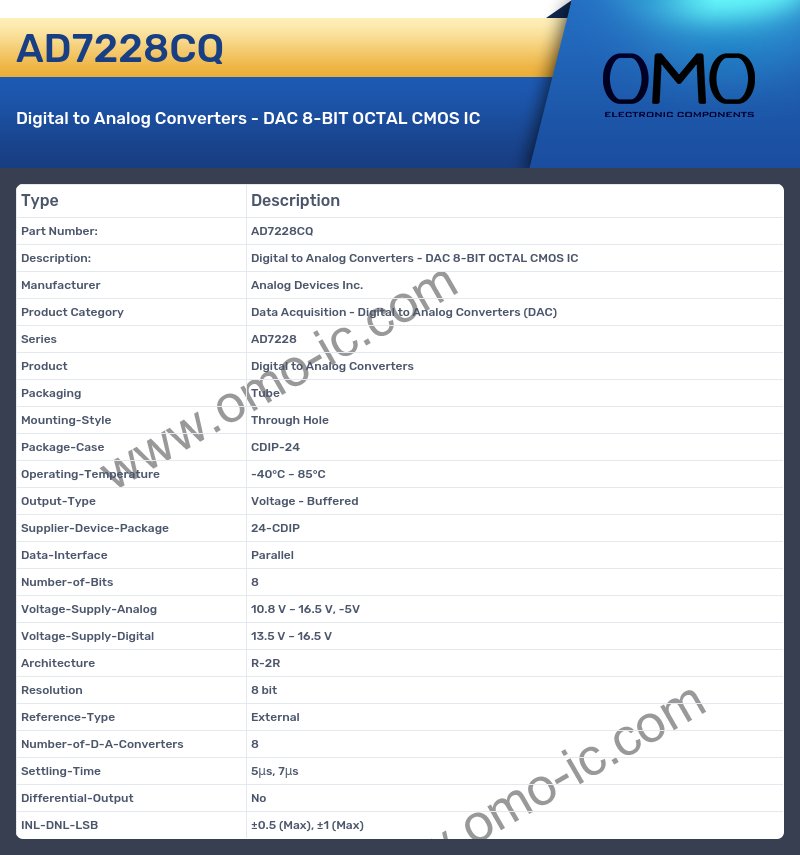

AD7228CQ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series AD7228
• Product Digital to Analog Converters
• Packaging Tube
• Mounting-Style Through Hole
• Package-Case CDIP-24
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Supplier-Device-Package 24-CDIP
• Data-Interface Parallel
• Number-of-Bits 8
• Voltage-Supply-Analog 10.8 V ~ 16.5 V, -5V
• Voltage-Supply-Digital 13.5 V ~ 16.5 V
• Architecture R-2R
• Resolution 8 bit
• Reference-Type External
• Number-of-D-A-Converters 8
• Settling-Time 5μs, 7μs
• Differential-Output No
• INL-DNL-LSB ±0.5 (Max), ±1 (Max)
