AD7228ACN Overview

Product belongs to the AD7228 series. This product is categorized as Digital to Analog Converters Tube is the packaging method for this product Weight of 0.131925 oz Through Hole Mounting-Style PDIP-24 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Supplier device package: 24-PDIP Data-Interface: Parallel 8 bits The Voltage-Supply-Analog is 10.8 V ~ 16.5 V, -5V. The Voltage Supply Digital for this product is 13.5 V ~ 16.5 V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 8 The 5μs, 7μs is an impressive 15 us. No Differential-Output

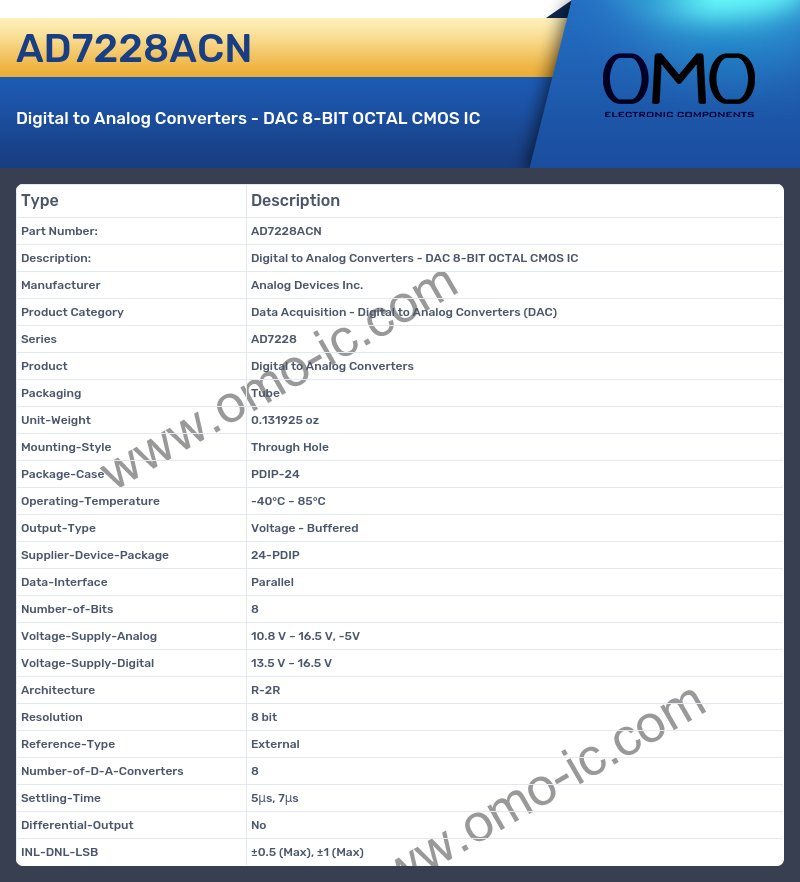

AD7228ACN Image

AD7228ACN Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series AD7228
• Product Digital to Analog Converters
• Packaging Tube
• Unit-Weight 0.131925 oz
• Mounting-Style Through Hole
• Package-Case PDIP-24
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Supplier-Device-Package 24-PDIP
• Data-Interface Parallel
• Number-of-Bits 8
• Voltage-Supply-Analog 10.8 V ~ 16.5 V, -5V
• Voltage-Supply-Digital 13.5 V ~ 16.5 V
• Architecture R-2R
• Resolution 8 bit
• Reference-Type External
• Number-of-D-A-Converters 8
• Settling-Time 5μs, 7μs
• Differential-Output No
• INL-DNL-LSB ±0.5 (Max), ±1 (Max)
