AD7225LN Overview

Product belongs to the AD7225 series. This product is categorized as Digital to Analog Converters Tube is the packaging method for this product Weight of 0.131925 oz Through Hole Mounting-Style PDIP-24 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Number of channels: 4 Channel Supplier device package: 24-PDIP Data-Interface: Parallel 8 bits The Voltage-Supply-Analog is 11.4 V ~ 16.5 V, -5V. The Voltage Supply Digital for this product is 14.25 V ~ 15.75 V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 4 The 4μs is an impressive 15 us. No Differential-Output Power-off control: 150 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Maximum supply voltage of 16.5 V Minimum supply voltage is 11.4 V Number-of-Converters: 4 Converter 200 kS/s Sampling Rate

AD7225LN Image

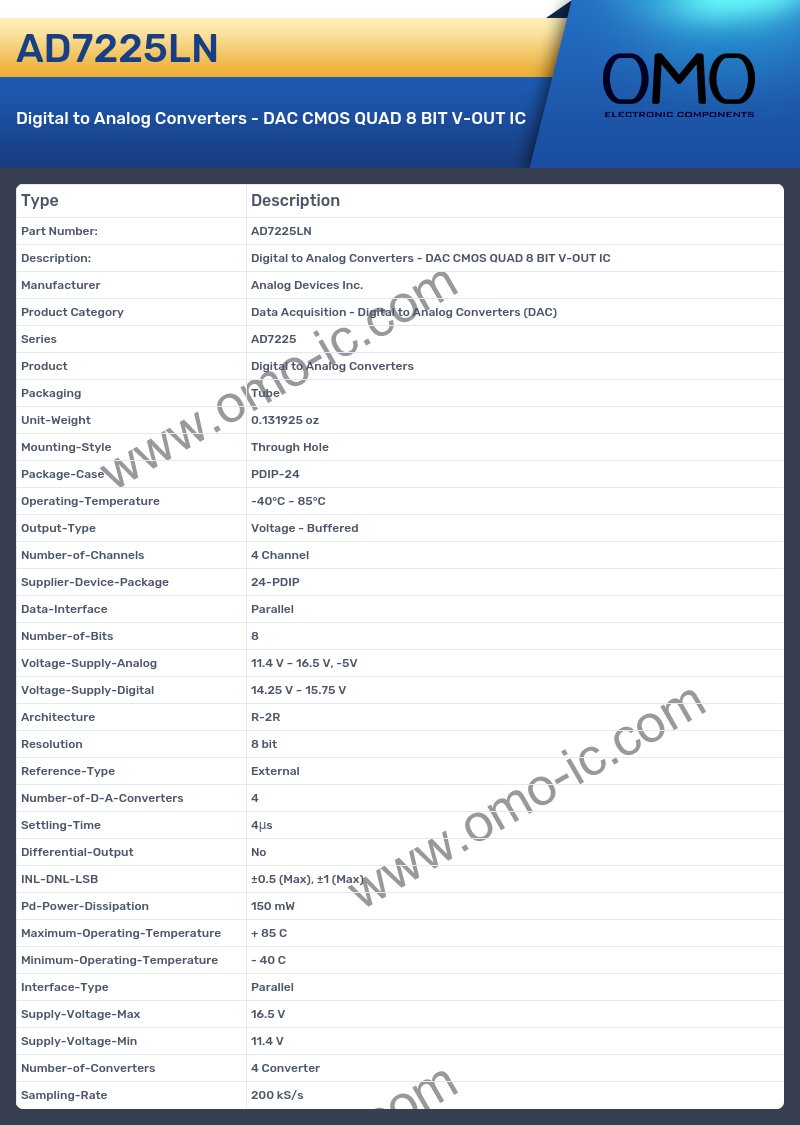

AD7225LN Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series AD7225
• Product Digital to Analog Converters
• Packaging Tube
• Unit-Weight 0.131925 oz
• Mounting-Style Through Hole
• Package-Case PDIP-24
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Number-of-Channels 4 Channel
• Supplier-Device-Package 24-PDIP
• Data-Interface Parallel
• Number-of-Bits 8
• Voltage-Supply-Analog 11.4 V ~ 16.5 V, -5V
• Voltage-Supply-Digital 14.25 V ~ 15.75 V
• Architecture R-2R
• Resolution 8 bit
• Reference-Type External
• Number-of-D-A-Converters 4
• Settling-Time 4μs
• Differential-Output No
• INL-DNL-LSB ±0.5 (Max), ±1 (Max)
• Pd-Power-Dissipation 150 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• Supply-Voltage-Max 16.5 V
• Supply-Voltage-Min 11.4 V
• Number-of-Converters 4 Converter
• Sampling-Rate 200 kS/s
