AD7224KP

AD7224KP Overview

Product belongs to the - series. Tube is the packaging method for this product 20-LCC (J-Lead) Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Supplier device package: 20-PLCC (9x9) Data-Interface: Parallel 8 bits The Voltage-Supply-Analog is 11.4 V ~ 16.5 V, -5V. The Voltage Supply Digital for this product is 14.25 V ~ 15.75 V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 1 The 7μs, 20μs is an impressive 15 us. No Differential-Output

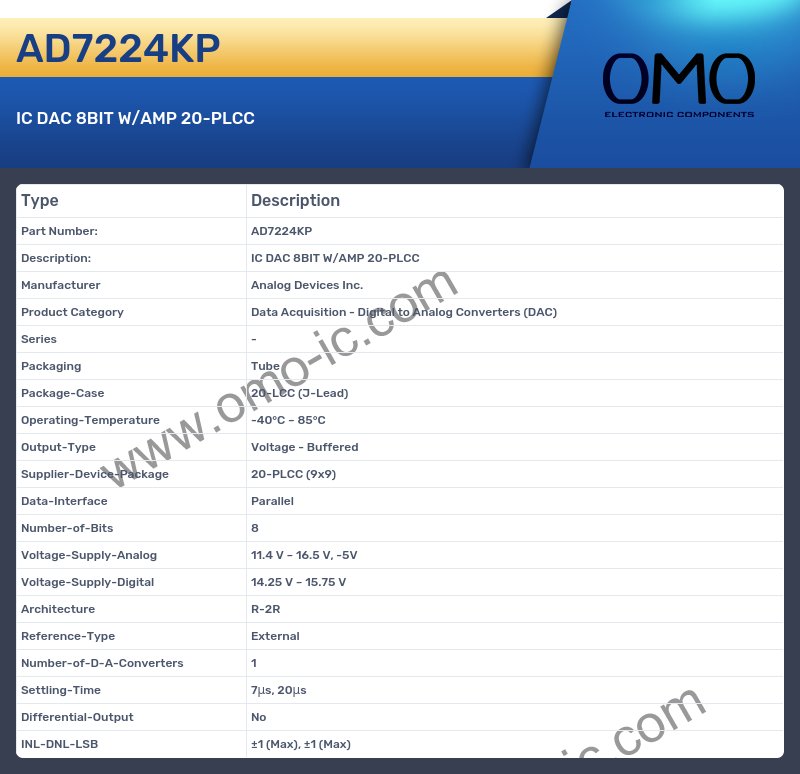

AD7224KP Image

AD7224KP Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series -
• Packaging Tube
• Package-Case 20-LCC (J-Lead)
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Supplier-Device-Package 20-PLCC (9x9)
• Data-Interface Parallel
• Number-of-Bits 8
• Voltage-Supply-Analog 11.4 V ~ 16.5 V, -5V
• Voltage-Supply-Digital 14.25 V ~ 15.75 V
• Architecture R-2R
• Reference-Type External
• Number-of-D-A-Converters 1
• Settling-Time 7μs, 20μs
• Differential-Output No
• INL-DNL-LSB ±1 (Max), ±1 (Max)
