AD694BRZ

AD694BRZ Overview

Product belongs to the AD694 series. This product is categorized as Instrumentation Amplifiers Type: Current Transmitter Tube Alternate Packaging is the packaging method for this product Weight of 0.023492 oz SMD/SMT Mounting-Style SOIC-16 The Voltage for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: Voltage Number of channels: 1 Channel Interface: - Supplier device package: 16-SOIC This product has a 23mA of 200μA. The amplifier is of Current Transmitter type. Power-off control: No Shutdown Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 1.5 mA is 92 nA. Maximum supply voltage of 36 V Minimum supply voltage is 4.5 V Input bias current of 5 nA The 50 uV. The 1 nA. The 80 dB. The 0 V to 10 V. 20 mA The CMRR-Common-Mode-Rejection-Ratio is 80 dB. 93.98 dB voltage gain Maximum Input Resistance" is " 5 MOhms

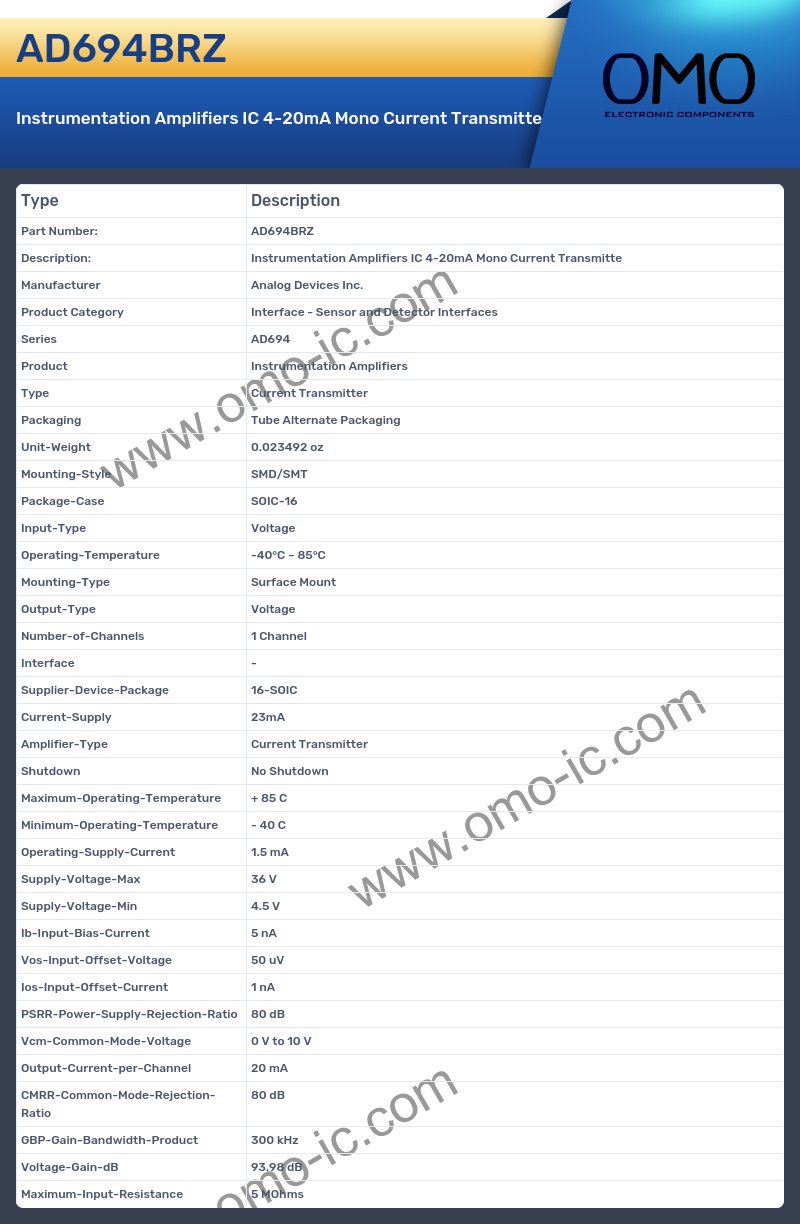

AD694BRZ Image

AD694BRZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Interface - Sensor and Detector Interfaces
• Series AD694
• Product Instrumentation Amplifiers
• Type Current Transmitter
• Packaging Tube Alternate Packaging
• Unit-Weight 0.023492 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Input-Type Voltage
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type Voltage
• Number-of-Channels 1 Channel
• Interface -
• Supplier-Device-Package 16-SOIC
• Current-Supply 23mA
• Amplifier-Type Current Transmitter
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 1.5 mA
• Supply-Voltage-Max 36 V
• Supply-Voltage-Min 4.5 V
• Ib-Input-Bias-Current 5 nA
• Vos-Input-Offset-Voltage 50 uV
• Ios-Input-Offset-Current 1 nA
• PSRR-Power-Supply-Rejection-Ratio 80 dB
• Vcm-Common-Mode-Voltage 0 V to 10 V
• Output-Current-per-Channel 20 mA
• CMRR-Common-Mode-Rejection-Ratio 80 dB
• GBP-Gain-Bandwidth-Product 300 kHz
• Voltage-Gain-dB 93.98 dB
• Maximum-Input-Resistance 5 MOhms
