AD678AJ

AD678AJ Overview

Product belongs to the AD678 series. This product is categorized as Analog to Digital Converters Type: S/H ADC Tube is the packaging method for this product SMD/SMT Mounting-Style LCC-44 The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 44-JLCC (16.39x16.39) This product's 200k. Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is ±12V. The Voltage Supply Digital for this product is 5V. Configuration S/H-ADC The architecture of this product is Flash . Internal is the reference type. 1 units Power-off control: 745 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C This product has a Power Consumption of 560 mW. Parallel interface type The +/- 4 LSB of this product is 0.2%. Number-of-Converters: 1 Converter 200 kS/s Sampling Rate Integral Nonlinearity: +/- 1 LSB

AD678AJ Image

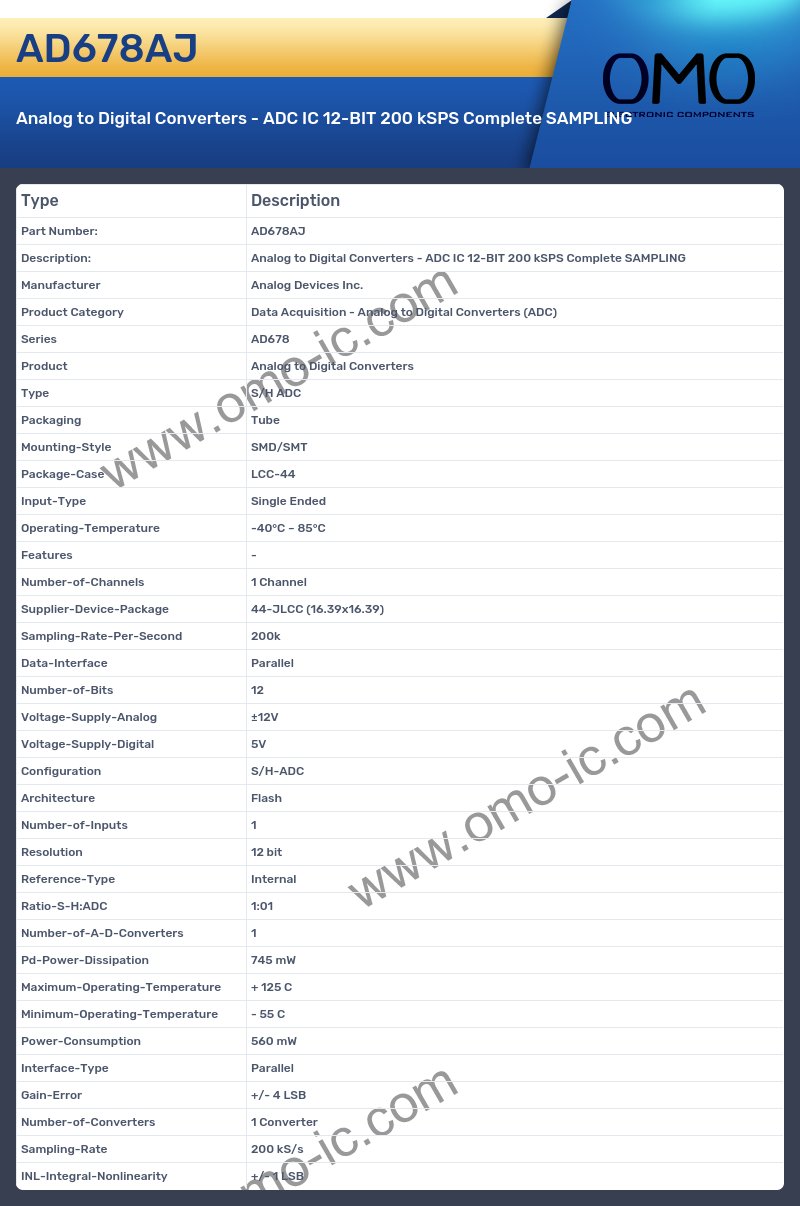

AD678AJ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD678
• Product Analog to Digital Converters
• Type S/H ADC
• Packaging Tube
• Mounting-Style SMD/SMT
• Package-Case LCC-44
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 44-JLCC (16.39x16.39)
• Sampling-Rate-Per-Second 200k
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog ±12V
• Voltage-Supply-Digital 5V
• Configuration S/H-ADC
• Architecture Flash
• Number-of-Inputs 1
• Resolution 12 bit
• Reference-Type Internal
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 745 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Power-Consumption 560 mW
• Interface-Type Parallel
• Gain-Error +/- 4 LSB
• Number-of-Converters 1 Converter
• Sampling-Rate 200 kS/s
• INL-Integral-Nonlinearity +/- 1 LSB
