AD581LH

AD581LH Overview

Product belongs to the AD581 series. Bulk is the packaging method for this product Through Hole Mounting-Style TO-5-3 Operational temperature range: 0°C ~ 70°C (TA) Through Hole mounting type Output-Type: Fixed Supplier device package: TO-5-3 Tolerance of ±0.05% 13 V ~ 30 V voltage input This product has a 1mA of 200μA. Series is the reference type. Minimum fixed output voltage is 10V . 5ppm/°C is 30 parts per million per degree Celsius. 40μVp-p of noise in 0#1Hz-to-10Hz range Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Output voltage: 10 V Input Voltage Range: 40 V Initial accuracy: 0.05 % Maximum shunt current of 10 mA

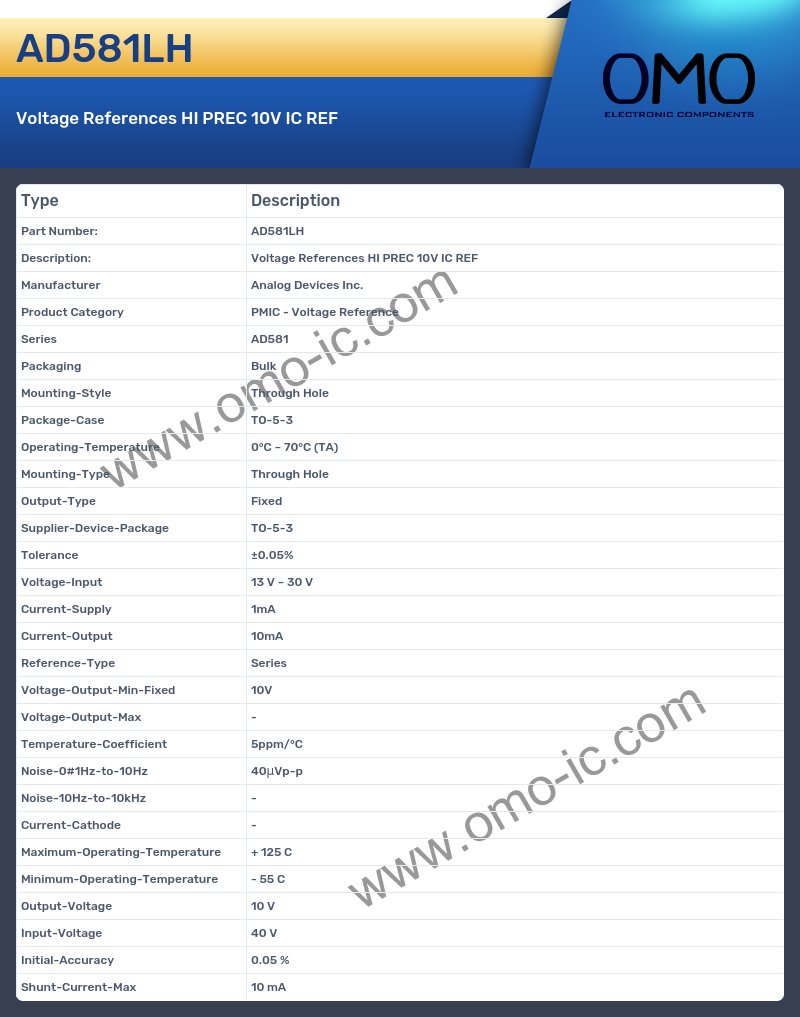

AD581LH Image

AD581LH Specifications

• Manufacturer Analog Devices Inc.
• Product Category PMIC - Voltage Reference
• Series AD581
• Packaging Bulk
• Mounting-Style Through Hole
• Package-Case TO-5-3
• Operating-Temperature 0°C ~ 70°C (TA)
• Mounting-Type Through Hole
• Output-Type Fixed
• Supplier-Device-Package TO-5-3
• Tolerance ±0.05%
• Voltage-Input 13 V ~ 30 V
• Current-Supply 1mA
• Current-Output 10mA
• Reference-Type Series
• Voltage-Output-Min-Fixed 10V
• Voltage-Output-Max -
• Temperature-Coefficient 5ppm/°C
• Noise-0#1Hz-to-10Hz 40μVp-p
• Noise-10Hz-to-10kHz -
• Current-Cathode -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Output-Voltage 10 V
• Input-Voltage 40 V
• Initial-Accuracy 0.05 %
• Shunt-Current-Max 10 mA
