AD580KH

AD580KH Overview

Product belongs to the AD580 series. Bulk is the packaging method for this product Through Hole Mounting-Style TO-52-3 Operational temperature range: 0°C ~ 70°C (TA) Through Hole mounting type Output-Type: Fixed Supplier device package: TO-52-3 Tolerance of ±1% 4.5 V ~ 30 V voltage input This product has a 1.5mA of 200μA. Series is the reference type. Minimum fixed output voltage is 2.5V . 40ppm/°C is 30 parts per million per degree Celsius. 8μVp-p of noise in 0#1Hz-to-10Hz range Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Output voltage: 2.5 V Initial accuracy: 0.4 %

AD580KH Image

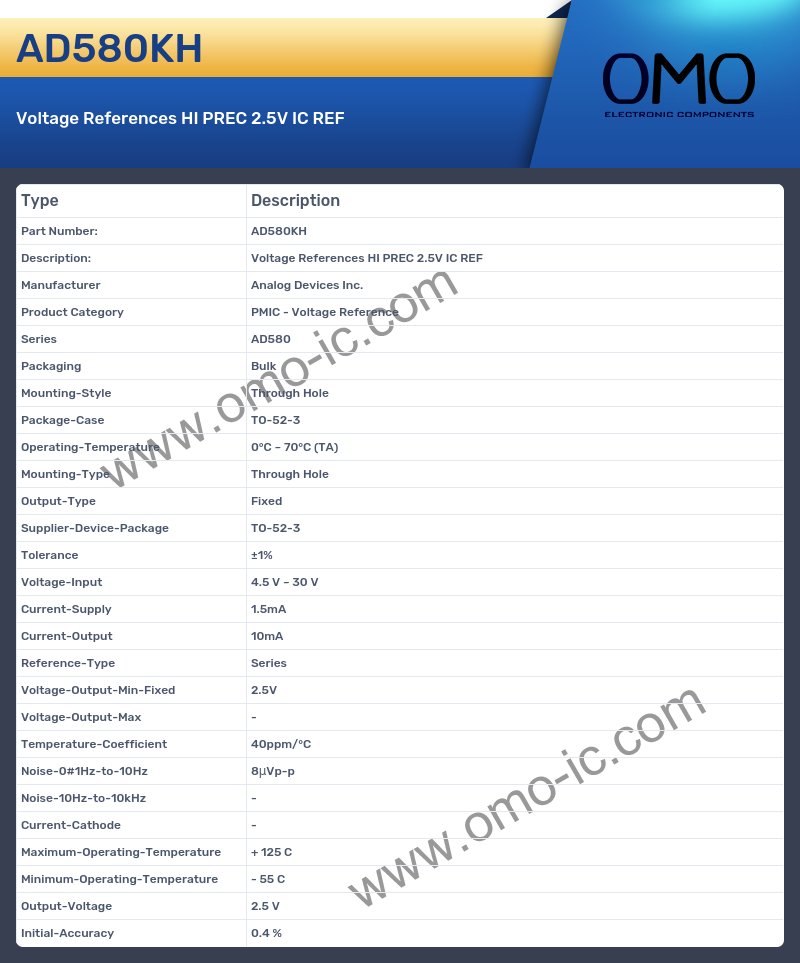

AD580KH Specifications

• Manufacturer Analog Devices Inc.
• Product Category PMIC - Voltage Reference
• Series AD580
• Packaging Bulk
• Mounting-Style Through Hole
• Package-Case TO-52-3
• Operating-Temperature 0°C ~ 70°C (TA)
• Mounting-Type Through Hole
• Output-Type Fixed
• Supplier-Device-Package TO-52-3
• Tolerance ±1%
• Voltage-Input 4.5 V ~ 30 V
• Current-Supply 1.5mA
• Current-Output 10mA
• Reference-Type Series
• Voltage-Output-Min-Fixed 2.5V
• Voltage-Output-Max -
• Temperature-Coefficient 40ppm/°C
• Noise-0#1Hz-to-10Hz 8μVp-p
• Noise-10Hz-to-10kHz -
• Current-Cathode -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Output-Voltage 2.5 V
• Initial-Accuracy 0.4 %
