AD569JPZ

AD569JPZ Overview

Product belongs to the AD569 series. This product is categorized as Digital to Analog Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.041719 oz SMD/SMT Mounting-Style PLCC-28 Operational temperature range: 0°C ~ 70°C Output-Type: Voltage - Buffered Supplier device package: 28-PLCC (11.51x11.51) Data-Interface: Parallel 16 bits The Voltage-Supply-Analog is ±10.8 V ~ 13.2 V. The Voltage Supply Digital for this product is -. The architecture of this product is Segmented DAC . External is the reference type. Number of D-A converters: 1 The 6μs is an impressive 15 us. No Differential-Output

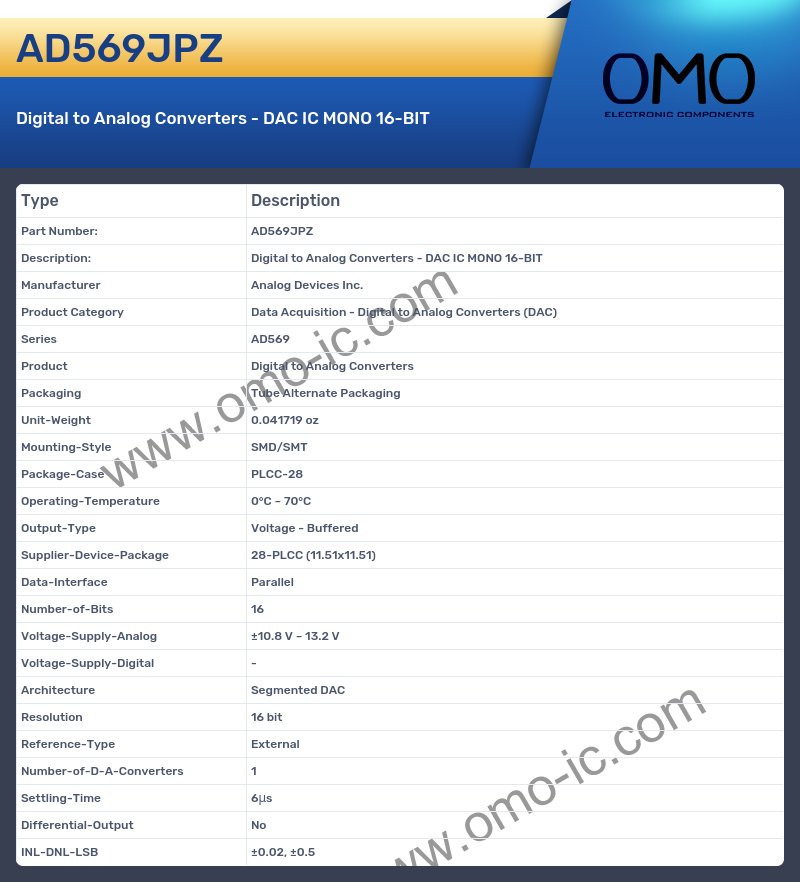

AD569JPZ Image

AD569JPZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series AD569
• Product Digital to Analog Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.041719 oz
• Mounting-Style SMD/SMT
• Package-Case PLCC-28
• Operating-Temperature 0°C ~ 70°C
• Output-Type Voltage - Buffered
• Supplier-Device-Package 28-PLCC (11.51x11.51)
• Data-Interface Parallel
• Number-of-Bits 16
• Voltage-Supply-Analog ±10.8 V ~ 13.2 V
• Voltage-Supply-Digital -
• Architecture Segmented DAC
• Resolution 16 bit
• Reference-Type External
• Number-of-D-A-Converters 1
• Settling-Time 6μs
• Differential-Output No
• INL-DNL-LSB ±0.02, ±0.5
