AD567KD

AD567KD Overview

Product belongs to the AD567 series. This product is categorized as Digital to Analog Converters Type: High Speed DAC Tube is the packaging method for this product Through Hole Mounting-Style CDIP-28 The CMOS TTL for this product is CMOS/TTL. Operational temperature range: 0°C ~ 70°C Output-Type: Current - Unbuffered Number of channels: 1 Channel Supplier device package: 28-CDIP Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is ±11.4 V ~ 16.5 V. The Voltage Supply Digital for this product is -. The architecture of this product is R-2R . External, Internal is the reference type. Number of D-A converters: 1 The 500ns is an impressive 15 us. No Differential-Output Power-off control: No Shutdown Power-off control: 495 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 5 mA is 92 nA. Parallel interface type Maximum supply voltage of 16.5 V Minimum supply voltage is 11.4 V Number-of-Converters: 1 Converter - Sampling Rate

AD567KD Image

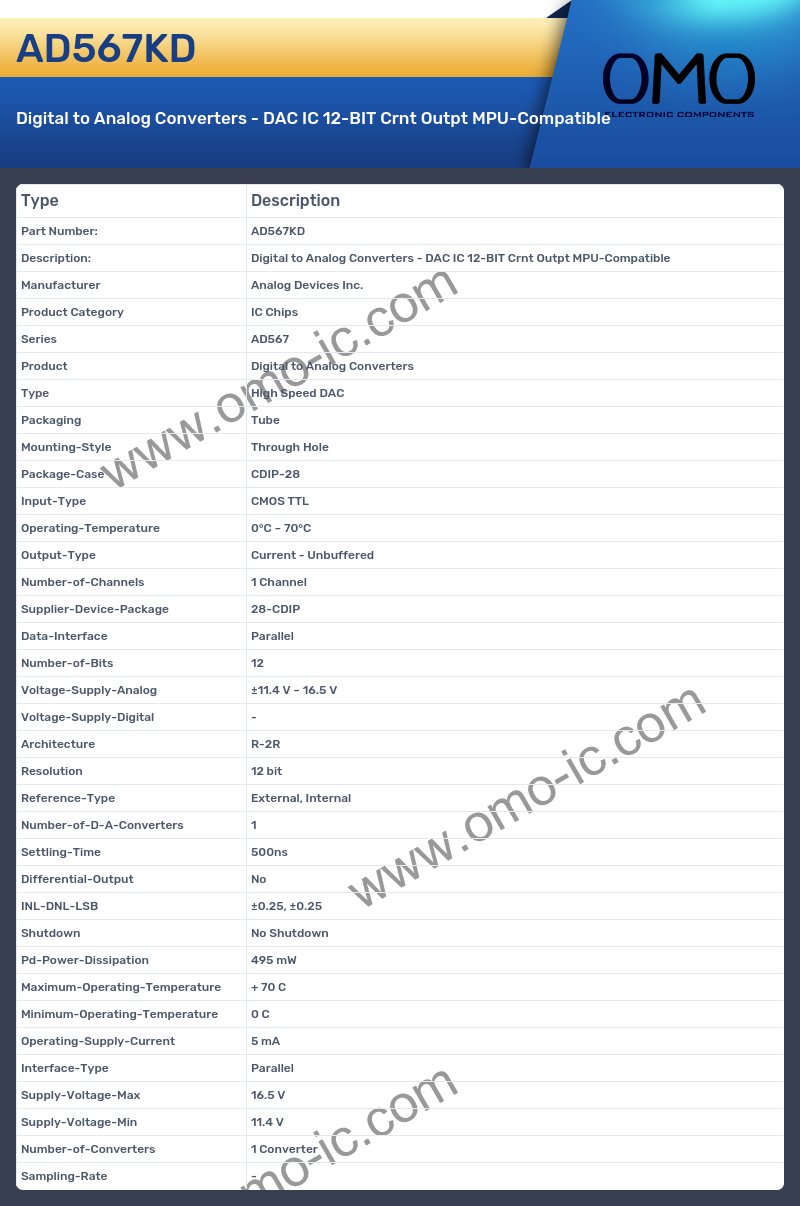

AD567KD Specifications

• Manufacturer Analog Devices Inc.
• Product Category IC Chips
• Series AD567
• Product Digital to Analog Converters
• Type High Speed DAC
• Packaging Tube
• Mounting-Style Through Hole
• Package-Case CDIP-28
• Input-Type CMOS TTL
• Operating-Temperature 0°C ~ 70°C
• Output-Type Current - Unbuffered
• Number-of-Channels 1 Channel
• Supplier-Device-Package 28-CDIP
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog ±11.4 V ~ 16.5 V
• Voltage-Supply-Digital -
• Architecture R-2R
• Resolution 12 bit
• Reference-Type External, Internal
• Number-of-D-A-Converters 1
• Settling-Time 500ns
• Differential-Output No
• INL-DNL-LSB ±0.25, ±0.25
• Shutdown No Shutdown
• Pd-Power-Dissipation 495 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 5 mA
• Interface-Type Parallel
• Supply-Voltage-Max 16.5 V
• Supply-Voltage-Min 11.4 V
• Number-of-Converters 1 Converter
• Sampling-Rate -
