AD558JPZ

AD558JPZ Overview

Product belongs to the DACPORTR series. This product is categorized as Digital to Analog Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.025468 oz SMD/SMT Mounting-Style PLCC-20 Operational temperature range: 0°C ~ 70°C Output-Type: Voltage - Buffered Supplier device package: 20-PLCC (9x9) Data-Interface: Parallel 8 bits The Voltage-Supply-Analog is 4.5 V ~ 16.5 V. The Voltage Supply Digital for this product is 4.5 V ~ 16.5 V. The architecture of this product is R-2R . Internal is the reference type. Number of D-A converters: 1 The 3μs is an impressive 15 us. No Differential-Output

AD558JPZ Image

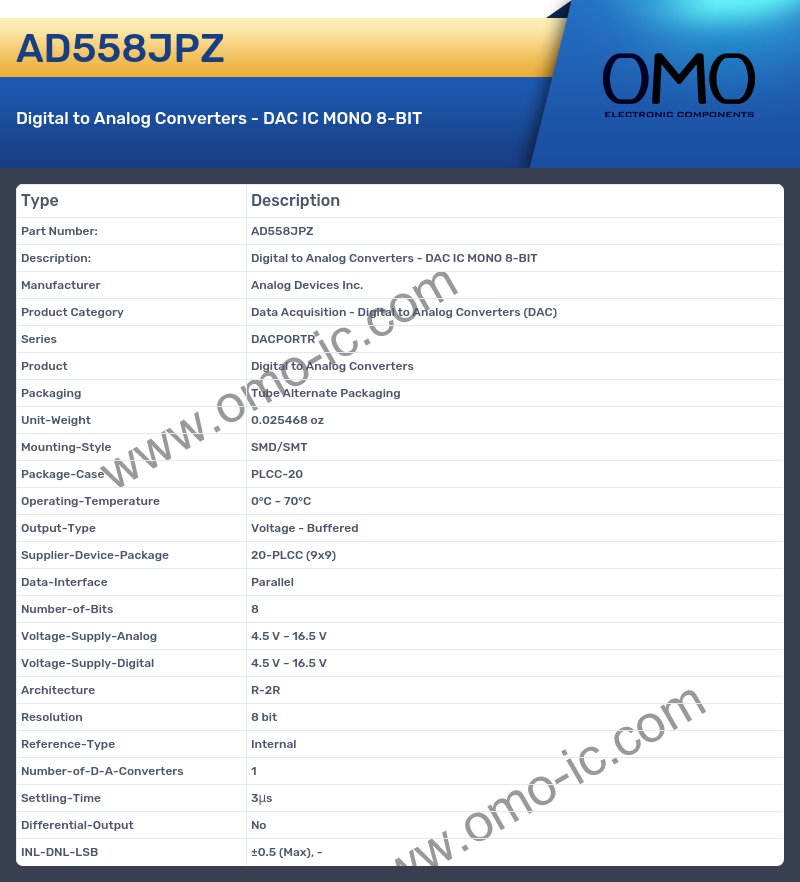

AD558JPZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DACPORTR
• Product Digital to Analog Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.025468 oz
• Mounting-Style SMD/SMT
• Package-Case PLCC-20
• Operating-Temperature 0°C ~ 70°C
• Output-Type Voltage - Buffered
• Supplier-Device-Package 20-PLCC (9x9)
• Data-Interface Parallel
• Number-of-Bits 8
• Voltage-Supply-Analog 4.5 V ~ 16.5 V
• Voltage-Supply-Digital 4.5 V ~ 16.5 V
• Architecture R-2R
• Resolution 8 bit
• Reference-Type Internal
• Number-of-D-A-Converters 1
• Settling-Time 3μs
• Differential-Output No
• INL-DNL-LSB ±0.5 (Max), -
