AD5555CRU

AD5555CRU Overview

Product belongs to the AD5555 series. This product is categorized as Digital to Analog Converters Type: General Purpose DAC Tube is the packaging method for this product Weight of 0.006102 oz SMD/SMT Mounting-Style TSSOP-16 Operational temperature range: -40°C ~ 85°C Output-Type: Current - Unbuffered Number of channels: 2 Channel Supplier device package: 16-TSSOP Data-Interface: SPI 14 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 2 The 500ns is an impressive 15 us. No Differential-Output Power-off control: 0.055 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 10 uA is 92 nA. Serial 3-Wire interface type Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V Number-of-Converters: 2 Converter 2 MS/s Sampling Rate Integral Nonlinearity: +/- 1 LSB Differential nonlinearity: +/- 1 LSB

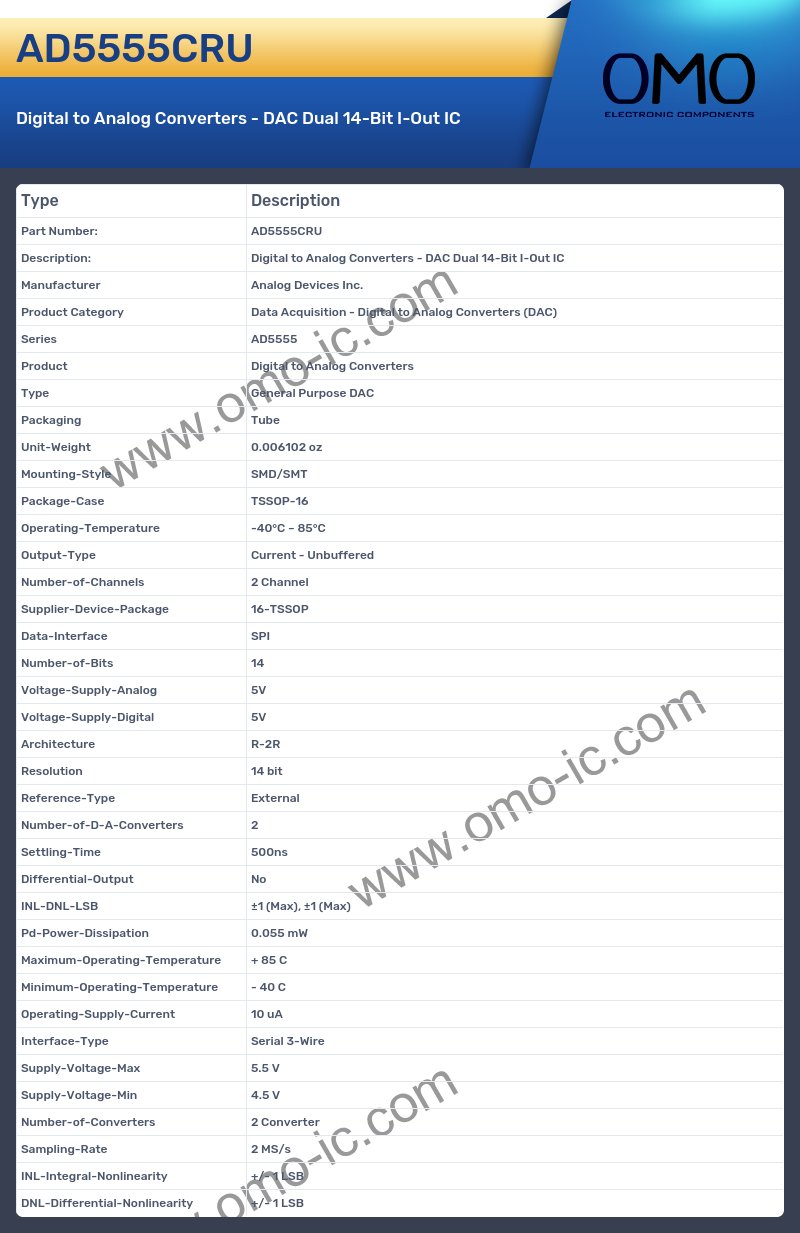

AD5555CRU Image

AD5555CRU Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series AD5555
• Product Digital to Analog Converters
• Type General Purpose DAC
• Packaging Tube
• Unit-Weight 0.006102 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-16
• Operating-Temperature -40°C ~ 85°C
• Output-Type Current - Unbuffered
• Number-of-Channels 2 Channel
• Supplier-Device-Package 16-TSSOP
• Data-Interface SPI
• Number-of-Bits 14
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Architecture R-2R
• Resolution 14 bit
• Reference-Type External
• Number-of-D-A-Converters 2
• Settling-Time 500ns
• Differential-Output No
• INL-DNL-LSB ±1 (Max), ±1 (Max)
• Pd-Power-Dissipation 0.055 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 10 uA
• Interface-Type Serial 3-Wire
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Number-of-Converters 2 Converter
• Sampling-Rate 2 MS/s
• INL-Integral-Nonlinearity +/- 1 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
