AD5551BR

AD5551BR Overview

Product belongs to the AD5551 series. This product is categorized as Digital to Analog Converters Type: General Purpose DAC Tube is the packaging method for this product Weight of 0.019048 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Unbuffered Number of channels: 1 Channel Supplier device package: 8-SOIC Data-Interface: SPI 14 bits The Voltage-Supply-Analog is 2.7 V ~ 5.5 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.5 V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 1 The 1μs is an impressive 15 us. No Differential-Output Power-off control: 0.825 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 125 uA is 92 nA. Serial 3-Wire DSP SPI interface type Maximum supply voltage of 5.5 V Minimum supply voltage is 2.7 V Number-of-Converters: 1 Converter 1 MS/s Sampling Rate Integral Nonlinearity: +/- 1 LSB Differential nonlinearity: +/- 0.8 LSB

AD5551BR Image

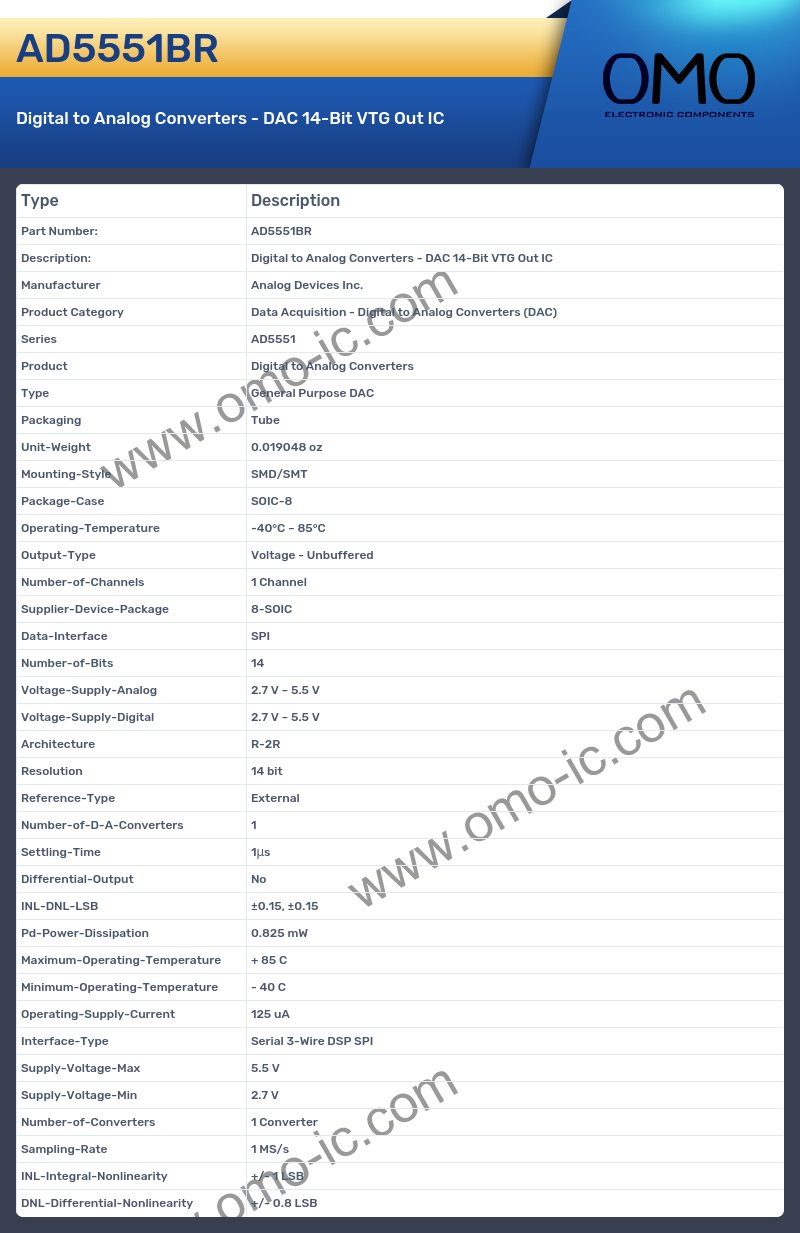

AD5551BR Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series AD5551
• Product Digital to Analog Converters
• Type General Purpose DAC
• Packaging Tube
• Unit-Weight 0.019048 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Unbuffered
• Number-of-Channels 1 Channel
• Supplier-Device-Package 8-SOIC
• Data-Interface SPI
• Number-of-Bits 14
• Voltage-Supply-Analog 2.7 V ~ 5.5 V
• Voltage-Supply-Digital 2.7 V ~ 5.5 V
• Architecture R-2R
• Resolution 14 bit
• Reference-Type External
• Number-of-D-A-Converters 1
• Settling-Time 1μs
• Differential-Output No
• INL-DNL-LSB ±0.15, ±0.15
• Pd-Power-Dissipation 0.825 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 125 uA
• Interface-Type Serial 3-Wire DSP SPI
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.7 V
• Number-of-Converters 1 Converter
• Sampling-Rate 1 MS/s
• INL-Integral-Nonlinearity +/- 1 LSB
• DNL-Differential-Nonlinearity +/- 0.8 LSB
