AD5412AREZ

AD5412AREZ Overview

Product belongs to the AD5412 series. This product is categorized as Digital to Analog Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.007478 oz SMD/SMT Mounting-Style TSSOP-24 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage or Current - Buffered Number of channels: 1 Channel Supplier device package: 24-TSSOP-EP Data-Interface: SPI, DSP 12 bits The Voltage-Supply-Analog is 10.8 V ~ 40 V, -3 V ~ 26.4 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.5 V. The architecture of this product is R-2R . External, Internal is the reference type. Number of D-A converters: 1 The 25μs (V), 40μs (A) (Typ) is an impressive 15 us. No Differential-Output Power-off control: 158 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial SPI interface type Maximum supply voltage of 5.5 V Minimum supply voltage is 2.7 V Number-of-Converters: 1 Converter 40 kS/s Sampling Rate

AD5412AREZ Image

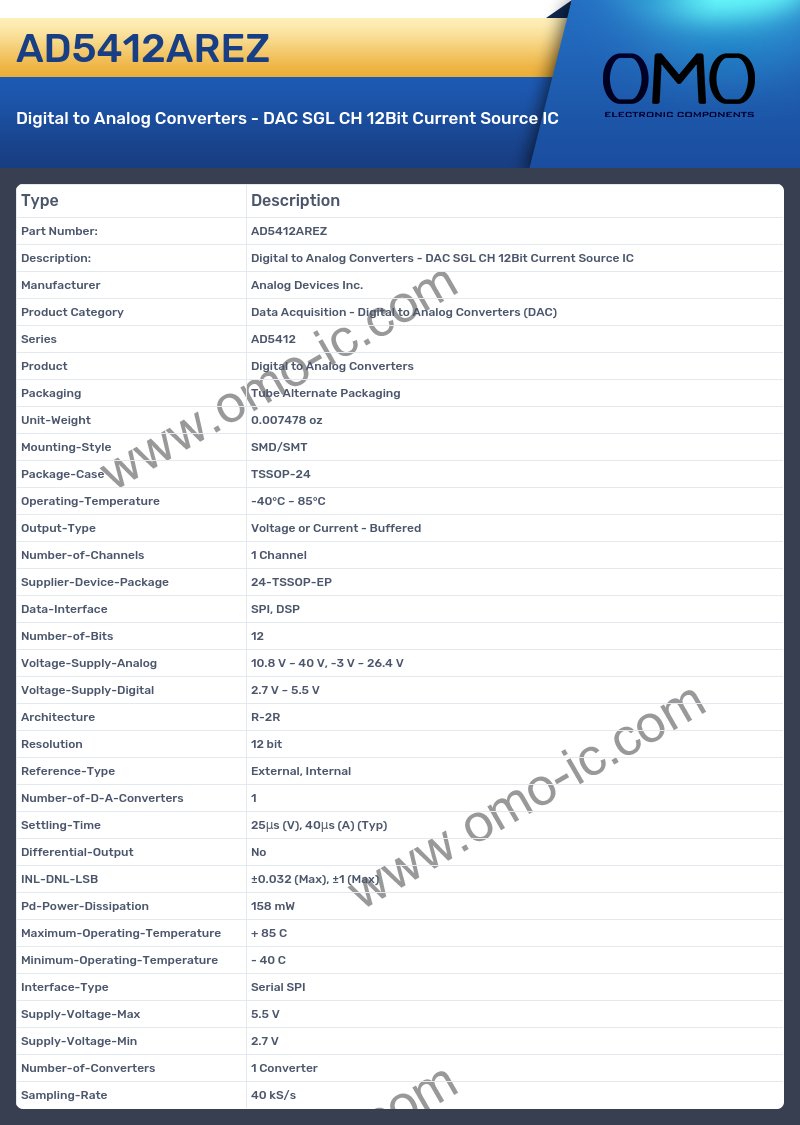

AD5412AREZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series AD5412
• Product Digital to Analog Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.007478 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-24
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage or Current - Buffered
• Number-of-Channels 1 Channel
• Supplier-Device-Package 24-TSSOP-EP
• Data-Interface SPI, DSP
• Number-of-Bits 12
• Voltage-Supply-Analog 10.8 V ~ 40 V, -3 V ~ 26.4 V
• Voltage-Supply-Digital 2.7 V ~ 5.5 V
• Architecture R-2R
• Resolution 12 bit
• Reference-Type External, Internal
• Number-of-D-A-Converters 1
• Settling-Time 25μs (V), 40μs (A) (Typ)
• Differential-Output No
• INL-DNL-LSB ±0.032 (Max), ±1 (Max)
• Pd-Power-Dissipation 158 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial SPI
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.7 V
• Number-of-Converters 1 Converter
• Sampling-Rate 40 kS/s
