AD5363BSTZ

AD5363BSTZ Overview

Product belongs to the AD5363 series. This product is categorized as Digital to Analog Converters Tray Alternate Packaging is the packaging method for this product Weight of 0.013210 oz SMD/SMT Mounting-Style LQFP-52 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Number of channels: 8 Channel Supplier device package: 52-LQFP (10x10) Data-Interface: SPI, DSP 14 bits The Voltage-Supply-Analog is 8 V ~ 16.5 V, -4.5 V ~ 16.5 V. The Voltage Supply Digital for this product is 2.5 V ~ 5.5 V. The architecture of this product is String DAC . External is the reference type. Number of D-A converters: 8 The 30μs is an impressive 15 us. No Differential-Output Power-off control: 209 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 8.5 mA is 92 nA. Serial 4-Wire SPI interface type The EVAL-AD5363EBZ. Maximum supply voltage of +/- 16.5 V Minimum supply voltage is - 4.5 V 8 V Number-of-Converters: 8 Converter Integral Nonlinearity: +/- 1 LSB Differential nonlinearity: +/- 1 LSB

AD5363BSTZ Image

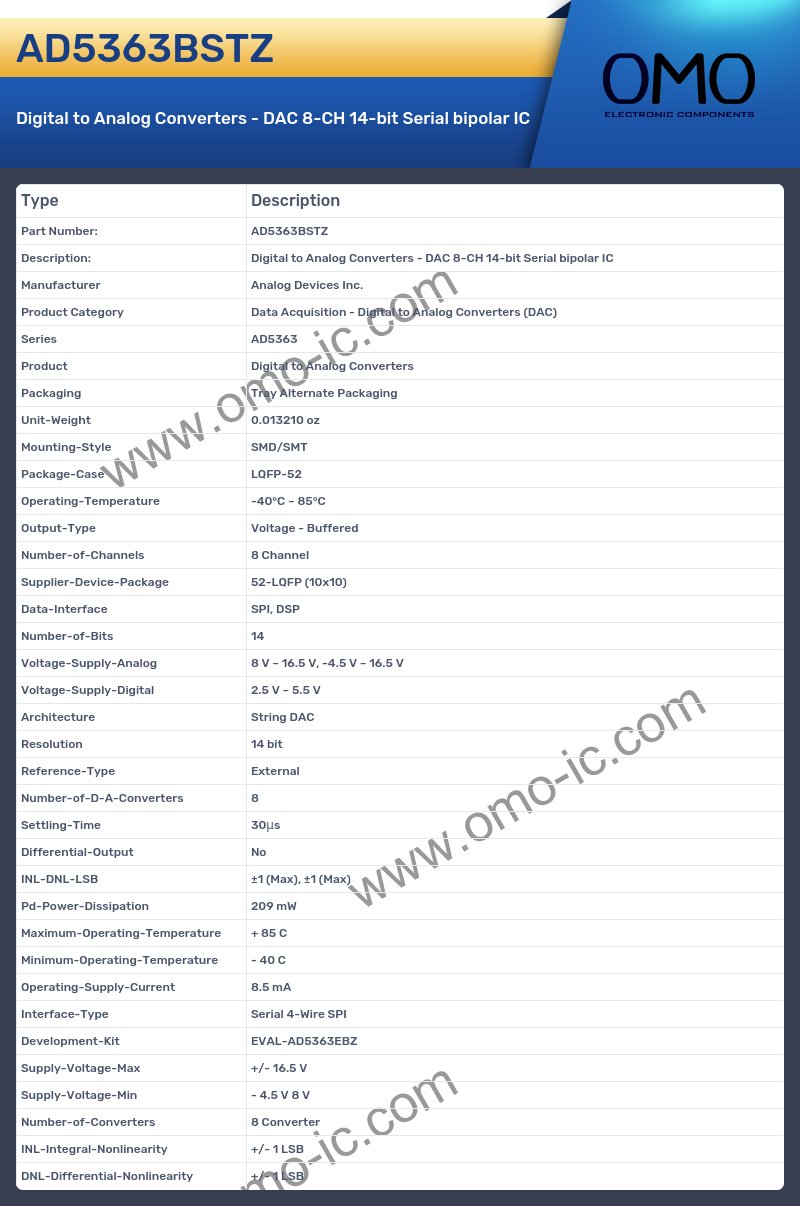

AD5363BSTZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series AD5363
• Product Digital to Analog Converters
• Packaging Tray Alternate Packaging
• Unit-Weight 0.013210 oz
• Mounting-Style SMD/SMT
• Package-Case LQFP-52
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Number-of-Channels 8 Channel
• Supplier-Device-Package 52-LQFP (10x10)
• Data-Interface SPI, DSP
• Number-of-Bits 14
• Voltage-Supply-Analog 8 V ~ 16.5 V, -4.5 V ~ 16.5 V
• Voltage-Supply-Digital 2.5 V ~ 5.5 V
• Architecture String DAC
• Resolution 14 bit
• Reference-Type External
• Number-of-D-A-Converters 8
• Settling-Time 30μs
• Differential-Output No
• INL-DNL-LSB ±1 (Max), ±1 (Max)
• Pd-Power-Dissipation 209 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 8.5 mA
• Interface-Type Serial 4-Wire SPI
• Development-Kit EVAL-AD5363EBZ
• Supply-Voltage-Max +/- 16.5 V
• Supply-Voltage-Min - 4.5 V 8 V
• Number-of-Converters 8 Converter
• INL-Integral-Nonlinearity +/- 1 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
