AD5328BRU Overview

Product belongs to the AD5328 series. This product is categorized as Digital to Analog Converters Type: General Purpose DAC Tube is the packaging method for this product Weight of 0.006102 oz SMD/SMT Mounting-Style TSSOP-16 Operational temperature range: -40°C ~ 125°C Output-Type: Voltage - Buffered Number of channels: 8 Channel Supplier device package: 16-TSSOP Data-Interface: SPI, DSP 12 bits The Voltage-Supply-Analog is 2.5 V ~ 5.5 V. The Voltage Supply Digital for this product is 2.5 V ~ 5.5 V. The architecture of this product is String DAC . External is the reference type. Number of D-A converters: 8 The 10μs is an impressive 15 us. No Differential-Output Power-off control: 5 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 1 mA is 92 nA. Serial 3-Wire DSP SPI interface type Maximum supply voltage of 5.5 V Minimum supply voltage is 2.5 V Number-of-Converters: 8 Converter 167 kS/s Sampling Rate Differential nonlinearity: +/- 0.2 LSB

AD5328BRU Image

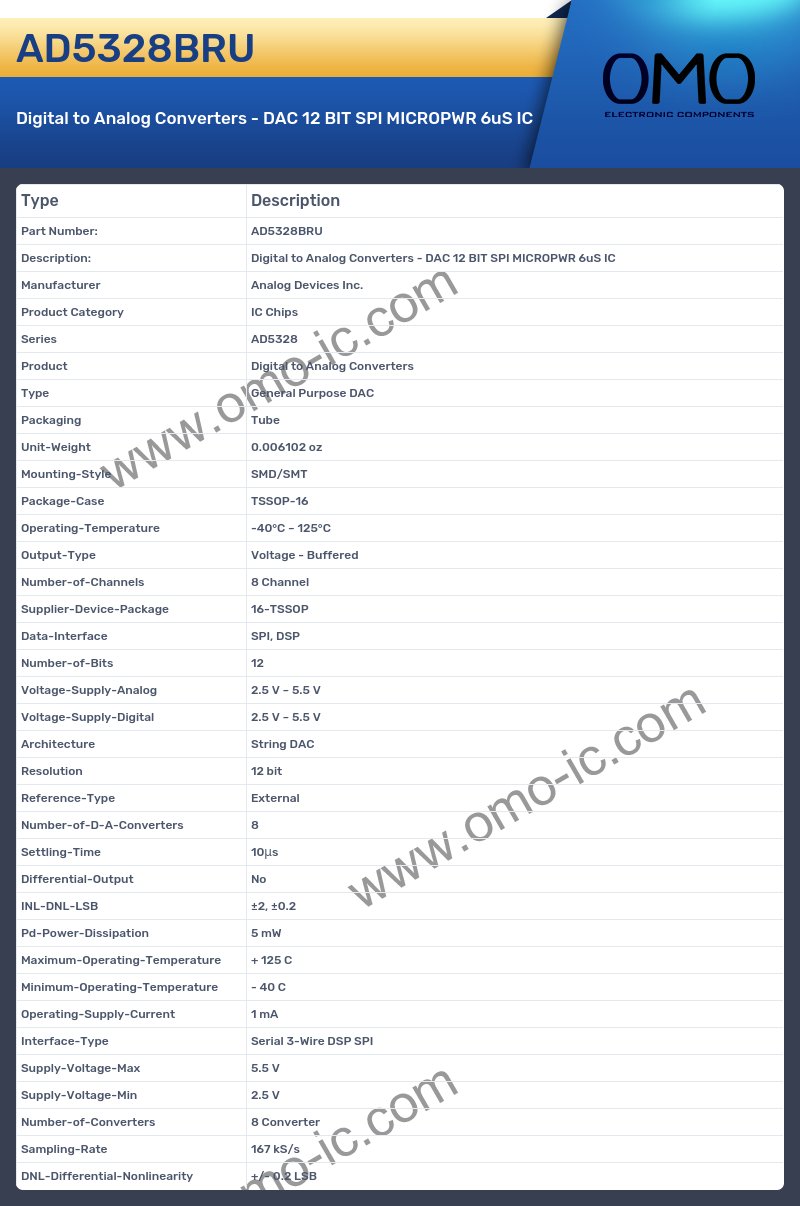

AD5328BRU Specifications

• Manufacturer Analog Devices Inc.
• Product Category IC Chips
• Series AD5328
• Product Digital to Analog Converters
• Type General Purpose DAC
• Packaging Tube
• Unit-Weight 0.006102 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-16
• Operating-Temperature -40°C ~ 125°C
• Output-Type Voltage - Buffered
• Number-of-Channels 8 Channel
• Supplier-Device-Package 16-TSSOP
• Data-Interface SPI, DSP
• Number-of-Bits 12
• Voltage-Supply-Analog 2.5 V ~ 5.5 V
• Voltage-Supply-Digital 2.5 V ~ 5.5 V
• Architecture String DAC
• Resolution 12 bit
• Reference-Type External
• Number-of-D-A-Converters 8
• Settling-Time 10μs
• Differential-Output No
• INL-DNL-LSB ±2, ±0.2
• Pd-Power-Dissipation 5 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 1 mA
• Interface-Type Serial 3-Wire DSP SPI
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.5 V
• Number-of-Converters 8 Converter
• Sampling-Rate 167 kS/s
• DNL-Differential-Nonlinearity +/- 0.2 LSB
