AD5263BRU50

AD5263BRU50 Overview

Product belongs to the AD5263 series. Tube is the packaging method for this product Weight of 0.007478 oz SMD/SMT Mounting-Style TSSOP-24 Operational temperature range: -40°C ~ 125°C Interface: I2C, SPI Voltage Supply Range: 4.5 V ~ 16.5 V, ±4.5 V ~ 7.5 V Supplier device package: 24-TSSOP 4 is 8. Taper: Linear Configuration Potentiometer 256 taps Resistance-Ohms: 50k Volatile memory type Tolerance of ±30% The 30 ppm/°C. 60 Ohms 30 PPM / C is 30 parts per million per degree Celsius. Resistance: 50 kOhms Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 4.5 V to 16.5 V 4.5 V to 7.5 V supply voltage for reliable performance. This product is an Quad 15 V 256-Position Digital Potentiometer with Pin-Selectable SPI/I2C. 1 uA is 92 nA. The EVAL-AD5263EBZ. Maximum supply voltage of 16.5 V 7.5 V Minimum supply voltage is 4.5 V Quad number of POTs The 256. Volatile wiper memory This product features a SPI I2C.

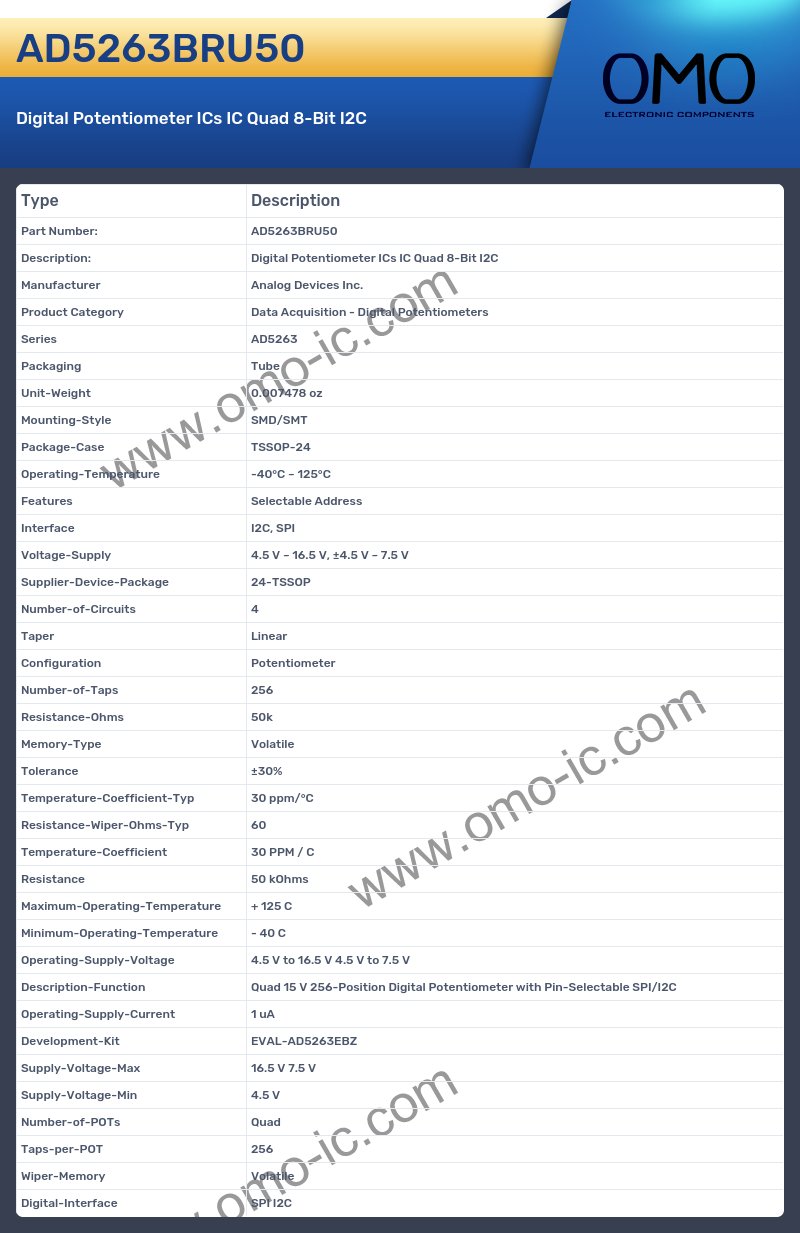

AD5263BRU50 Image

AD5263BRU50 Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital Potentiometers
• Series AD5263
• Packaging Tube
• Unit-Weight 0.007478 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-24
• Operating-Temperature -40°C ~ 125°C
• Features Selectable Address
• Interface I2C, SPI
• Voltage-Supply 4.5 V ~ 16.5 V, ±4.5 V ~ 7.5 V
• Supplier-Device-Package 24-TSSOP
• Number-of-Circuits 4
• Taper Linear
• Configuration Potentiometer
• Number-of-Taps 256
• Resistance-Ohms 50k
• Memory-Type Volatile
• Tolerance ±30%
• Temperature-Coefficient-Typ 30 ppm/°C
• Resistance-Wiper-Ohms-Typ 60
• Temperature-Coefficient 30 PPM / C
• Resistance 50 kOhms
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 4.5 V to 16.5 V 4.5 V to 7.5 V
• Description-Function Quad 15 V 256-Position Digital Potentiometer with Pin-Selectable SPI/I2C
• Operating-Supply-Current 1 uA
• Development-Kit EVAL-AD5263EBZ
• Supply-Voltage-Max 16.5 V 7.5 V
• Supply-Voltage-Min 4.5 V
• Number-of-POTs Quad
• Taps-per-POT 256
• Wiper-Memory Volatile
• Digital-Interface SPI I2C
