AD5232BRU50

AD5232BRU50 Overview

Product belongs to the AD5232 series. Tube is the packaging method for this product Weight of 0.006102 oz SMD/SMT Mounting-Style TSSOP-16 Operational temperature range: -40°C ~ 85°C Interface: SPI Voltage Supply Range: 2.7 V ~ 5.5 V, ±2.25 V ~ 2.75 V Supplier device package: 16-TSSOP 2 is 8. Taper: Logarithmic Configuration Potentiometer 256 taps Resistance-Ohms: 50k Non-Volatile memory type Tolerance of -40%, +20% The 600 ppm/°C. 200 Ohms 300 PPM / C is 30 parts per million per degree Celsius. Resistance: 50 kOhms Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 2.7 V supply voltage for reliable performance. 3.5 uA is 92 nA. The EVAL-AD5232SDZ. Maximum supply voltage of 5.5 V Minimum supply voltage is 2.7 V Dual number of POTs The 256. Non Volatile wiper memory This product features a SPI.

AD5232BRU50 Image

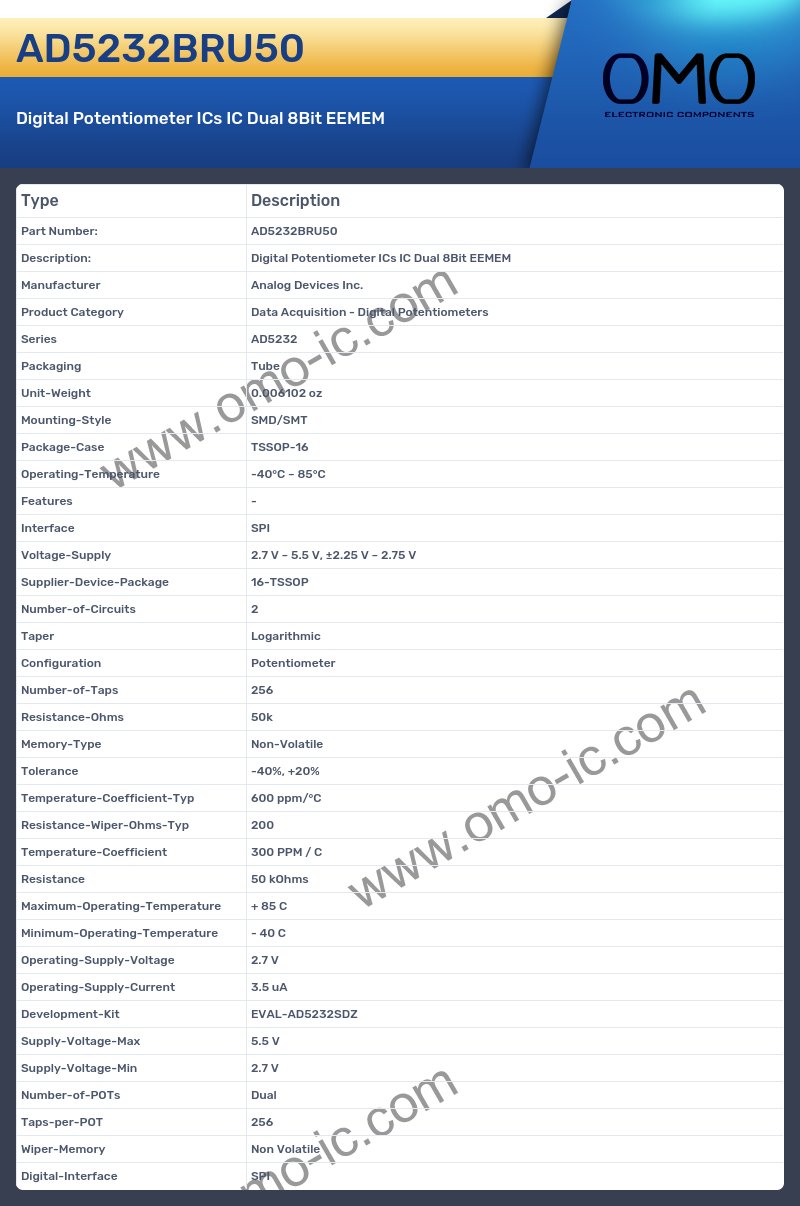

AD5232BRU50 Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital Potentiometers
• Series AD5232
• Packaging Tube
• Unit-Weight 0.006102 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-16
• Operating-Temperature -40°C ~ 85°C
• Features -
• Interface SPI
• Voltage-Supply 2.7 V ~ 5.5 V, ±2.25 V ~ 2.75 V
• Supplier-Device-Package 16-TSSOP
• Number-of-Circuits 2
• Taper Logarithmic
• Configuration Potentiometer
• Number-of-Taps 256
• Resistance-Ohms 50k
• Memory-Type Non-Volatile
• Tolerance -40%, +20%
• Temperature-Coefficient-Typ 600 ppm/°C
• Resistance-Wiper-Ohms-Typ 200
• Temperature-Coefficient 300 PPM / C
• Resistance 50 kOhms
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.7 V
• Operating-Supply-Current 3.5 uA
• Development-Kit EVAL-AD5232SDZ
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.7 V
• Number-of-POTs Dual
• Taps-per-POT 256
• Wiper-Memory Non Volatile
• Digital-Interface SPI
