AD261AND-5 Overview

Product belongs to the IsoLogic series. Type: General Purpose Tube is the packaging method for this product 22-DIP Module Magnetic Coupling is the technology used. Operational temperature range: -25°C ~ 85°C Number of channels: 5 Voltage Supply Range: 4 V ~ 5.75 V Supplier device package: 22-PDIP This product's Unidirectional This product is designed with 1750Vrms voltage isolation for maximum safety and reliability. This product is designed with No isolated power for maximum safety and reliability. The product has 2000/5/1 0:00:00 inputs from Side 1 to Side 2. Minimum 10kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 25ns, 25ns The minimum pulse width distortion is 25ns (Min).

AD261AND-5 Image

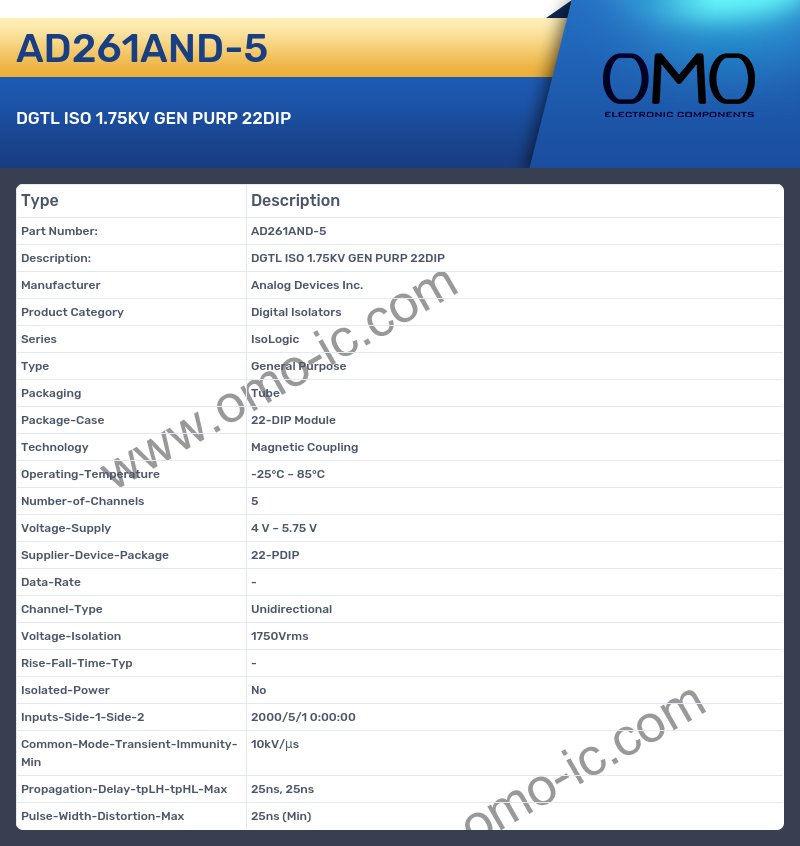

AD261AND-5 Specifications

• Manufacturer Analog Devices Inc.
• Product Category Digital Isolators
• Series IsoLogic
• Type General Purpose
• Packaging Tube
• Package-Case 22-DIP Module
• Technology Magnetic Coupling
• Operating-Temperature -25°C ~ 85°C
• Number-of-Channels 5
• Voltage-Supply 4 V ~ 5.75 V
• Supplier-Device-Package 22-PDIP
• Data-Rate -
• Channel-Type Unidirectional
• Voltage-Isolation 1750Vrms
• Rise-Fall-Time-Typ -
• Isolated-Power No
• Inputs-Side-1-Side-2 2000/5/1 0:00:00
• Common-Mode-Transient-Immunity-Min 10kV/μs
• Propagation-Delay-tpLH-tpHL-Max 25ns, 25ns
• Pulse-Width-Distortion-Max 25ns (Min)
