AD22285-R2

AD22285-R2 Overview

Product belongs to the iMEMSR series. Type: Analog Reel is the packaging method for this product SMD/SMT Mounting-Style LCC-8 Operational temperature range: -40°C ~ 105°C (TA) Surface Mount mounting type Output-Type: Analog Voltage Sensitivity: 38 mV/g Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 8-CLCC (5x5) 2-axis Axis: X, Y The acceleration range is ±50g. The 38. 400Hz bandwidth Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C 2.2 uA is 92 nA. - interface type X Y Sensing-Axis 55 g acceleration capacity Maximum supply voltage of 6 VDC Minimum supply voltage is 3.5 VDC

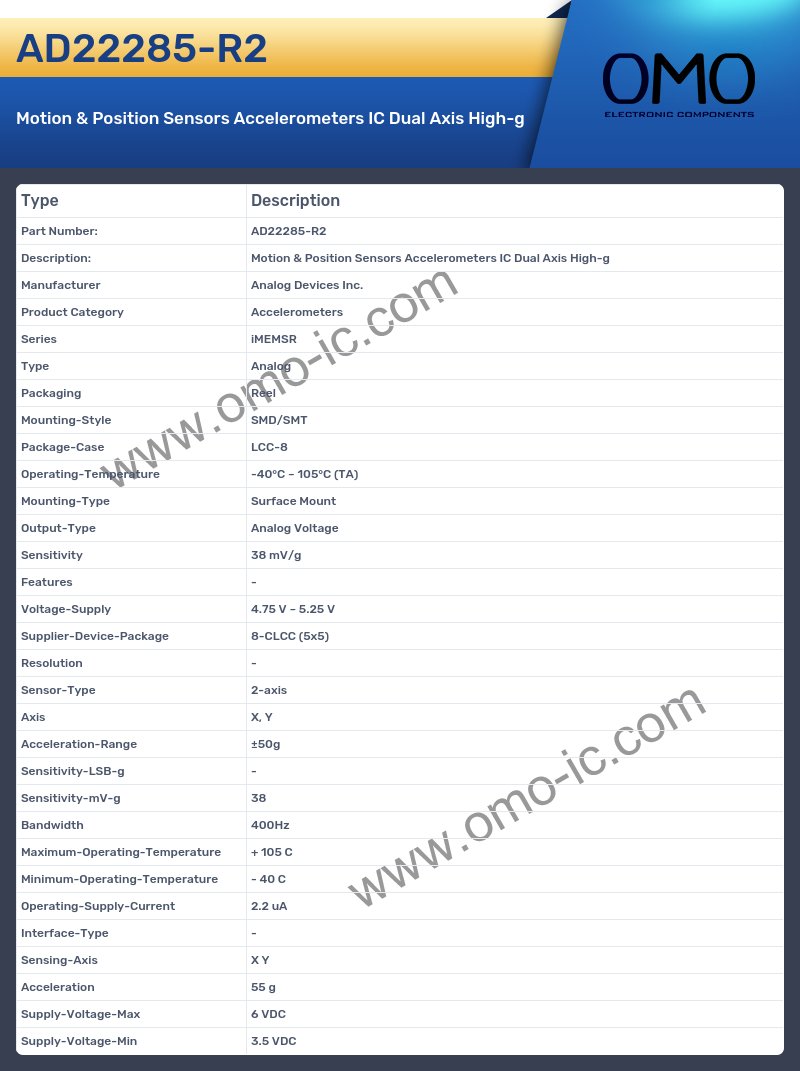

AD22285-R2 Image

AD22285-R2 Specifications

• Manufacturer Analog Devices Inc.
• Product Category Accelerometers
• Series iMEMSR
• Type Analog
• Packaging Reel
• Mounting-Style SMD/SMT
• Package-Case LCC-8
• Operating-Temperature -40°C ~ 105°C (TA)
• Mounting-Type Surface Mount
• Output-Type Analog Voltage
• Sensitivity 38 mV/g
• Features -
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package 8-CLCC (5x5)
• Resolution -
• Sensor-Type 2-axis
• Axis X, Y
• Acceleration-Range ±50g
• Sensitivity-LSB-g -
• Sensitivity-mV-g 38
• Bandwidth 400Hz
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 2.2 uA
• Interface-Type -
• Sensing-Axis X Y
• Acceleration 55 g
• Supply-Voltage-Max 6 VDC
• Supply-Voltage-Min 3.5 VDC
