AD1934WBSTZ

AD1934WBSTZ Overview

Product belongs to the AD1934 series. This product is categorized as Audio DACs Tray Alternate Packaging is the packaging method for this product Weight of 0.012561 oz SMD/SMT Mounting-Style LQFP-44 Operational temperature range: -40°C ~ 105°C Output-Type: Voltage - Unbuffered Number of channels: 8 Channel Supplier device package: 48-LQFP (7x7) Data-Interface: I2S, SPI 24 bits The Voltage-Supply-Analog is 3 V ~ 3.6 V. The Voltage Supply Digital for this product is 3 V ~ 3.6 V. The architecture of this product is Sigma-Delta . Internal is the reference type. Number of D-A converters: 8 The - is an impressive 15 us. No Differential-Output Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C This product operates at a 3.3 V supply voltage for reliable performance. I2C interface type Number of DAC Outputs: 8 Output Signal-to-Noise Ratio of 108 dB The +/- 10 % FSR of this product is 0.2%. This product has a - 92 dB for clear and precise audio. Number-of-Converters: 8 Converter 192 kS/s Sampling Rate Analog and Digital supply type

AD1934WBSTZ Image

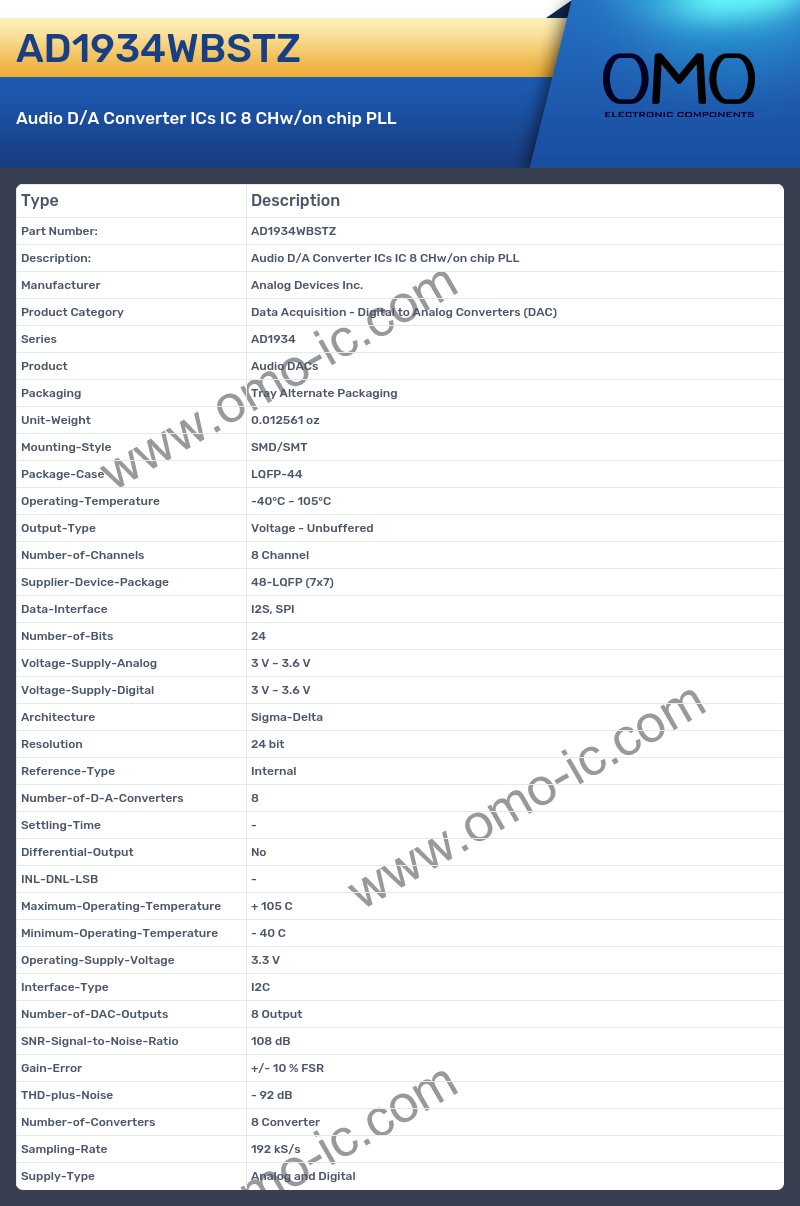

AD1934WBSTZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series AD1934
• Product Audio DACs
• Packaging Tray Alternate Packaging
• Unit-Weight 0.012561 oz
• Mounting-Style SMD/SMT
• Package-Case LQFP-44
• Operating-Temperature -40°C ~ 105°C
• Output-Type Voltage - Unbuffered
• Number-of-Channels 8 Channel
• Supplier-Device-Package 48-LQFP (7x7)
• Data-Interface I2S, SPI
• Number-of-Bits 24
• Voltage-Supply-Analog 3 V ~ 3.6 V
• Voltage-Supply-Digital 3 V ~ 3.6 V
• Architecture Sigma-Delta
• Resolution 24 bit
• Reference-Type Internal
• Number-of-D-A-Converters 8
• Settling-Time -
• Differential-Output No
• INL-DNL-LSB -
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 3.3 V
• Interface-Type I2C
• Number-of-DAC-Outputs 8 Output
• SNR-Signal-to-Noise-Ratio 108 dB
• Gain-Error +/- 10 % FSR
• THD-plus-Noise - 92 dB
• Number-of-Converters 8 Converter
• Sampling-Rate 192 kS/s
• Supply-Type Analog and Digital
