AD1555BPZ

AD1555BPZ Overview

Product belongs to the AD1555 series. This product is categorized as Analog to Digital Converters Tube is the packaging method for this product Weight of 0.041719 oz SMD/SMT Mounting-Style PLCC-28 The Differential for this product is CMOS/TTL. Operational temperature range: -55°C ~ 85°C Number of channels: 2 Channel Supplier device package: 28-PLCC (11.51x11.51) This product's 256k. Data-Interface: SPI 24 bits The Voltage-Supply-Analog is ±5V. The Voltage Supply Digital for this product is 5V. Configuration MUX-PGA-ADC The architecture of this product is Sigma-Delta . External, Internal is the reference type. 1 units Power-off control: 96 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 55 C This product has a Power Consumption of 77 mW. Serial interface type Signal-to-Noise Ratio of 120 dB The +/- 10 %FSR of this product is 0.2%. Number-of-Converters: 1 Converter 16 kS/s Sampling Rate Total Harmonic Distortion: 120 dB

AD1555BPZ Image

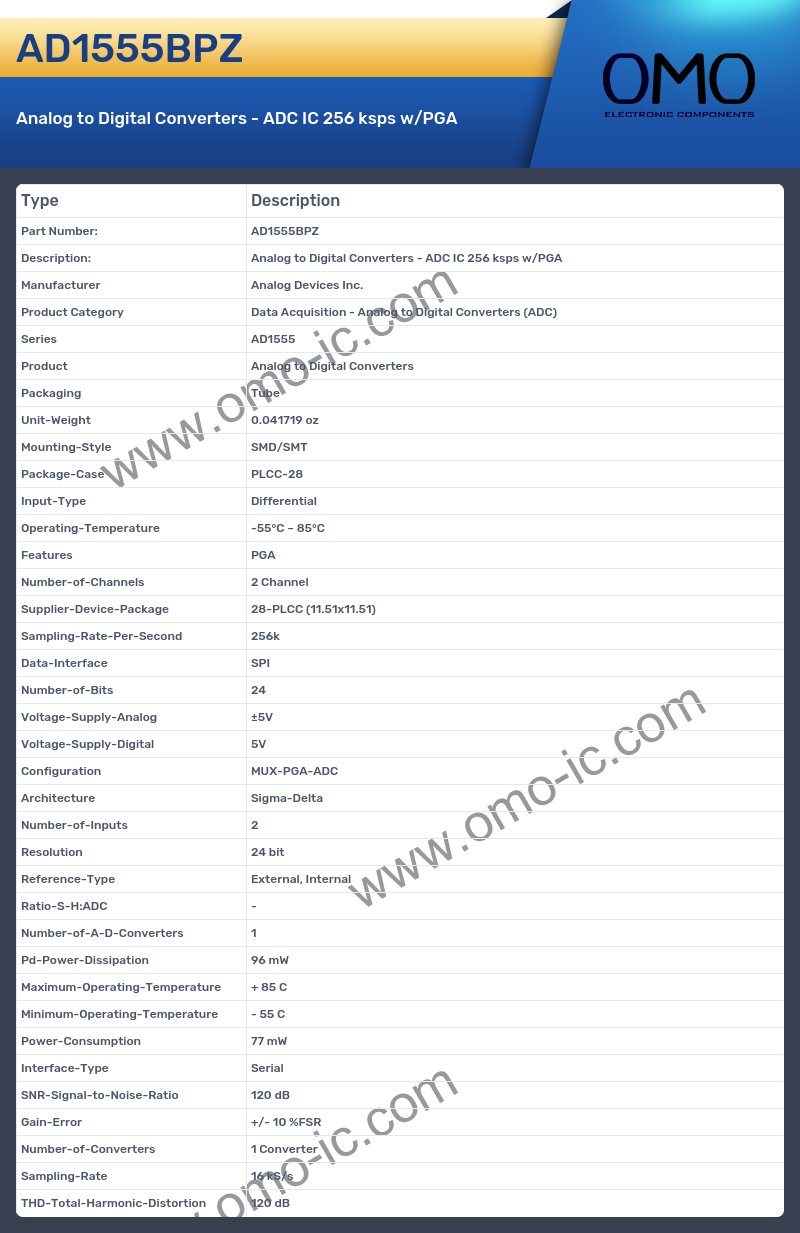

AD1555BPZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD1555
• Product Analog to Digital Converters
• Packaging Tube
• Unit-Weight 0.041719 oz
• Mounting-Style SMD/SMT
• Package-Case PLCC-28
• Input-Type Differential
• Operating-Temperature -55°C ~ 85°C
• Features PGA
• Number-of-Channels 2 Channel
• Supplier-Device-Package 28-PLCC (11.51x11.51)
• Sampling-Rate-Per-Second 256k
• Data-Interface SPI
• Number-of-Bits 24
• Voltage-Supply-Analog ±5V
• Voltage-Supply-Digital 5V
• Configuration MUX-PGA-ADC
• Architecture Sigma-Delta
• Number-of-Inputs 2
• Resolution 24 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC -
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 96 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 55 C
• Power-Consumption 77 mW
• Interface-Type Serial
• SNR-Signal-to-Noise-Ratio 120 dB
• Gain-Error +/- 10 %FSR
• Number-of-Converters 1 Converter
• Sampling-Rate 16 kS/s
• THD-Total-Harmonic-Distortion 120 dB
