AD10242TZ

AD10242TZ Overview

Product belongs to the AD10242 series. This product is categorized as Analog to Digital Converters Tray is the packaging method for this product SMD/SMT Mounting-Style CLCC-68 The Single Ended for this product is CMOS/TTL. Operational temperature range: -55°C ~ 125°C Number of channels: 2 Channel Supplier device package: 68-CLCC (24.13x24.13) This product's 40M. Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration ADC The architecture of this product is Pipelined . Internal is the reference type. 2 units Power-off control: 2 W Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C This product has a Power Consumption of 1750 mW. Parallel interface type Signal-to-Noise Ratio of 68 dB The AD10242/PCB. The +/- 1.5 %FSR of this product is 0.2%. Number-of-Converters: 2 Converter 40 MS/s Sampling Rate Integral Nonlinearity: 0.5 LSB Differential nonlinearity: 1.25 LSB

AD10242TZ Image

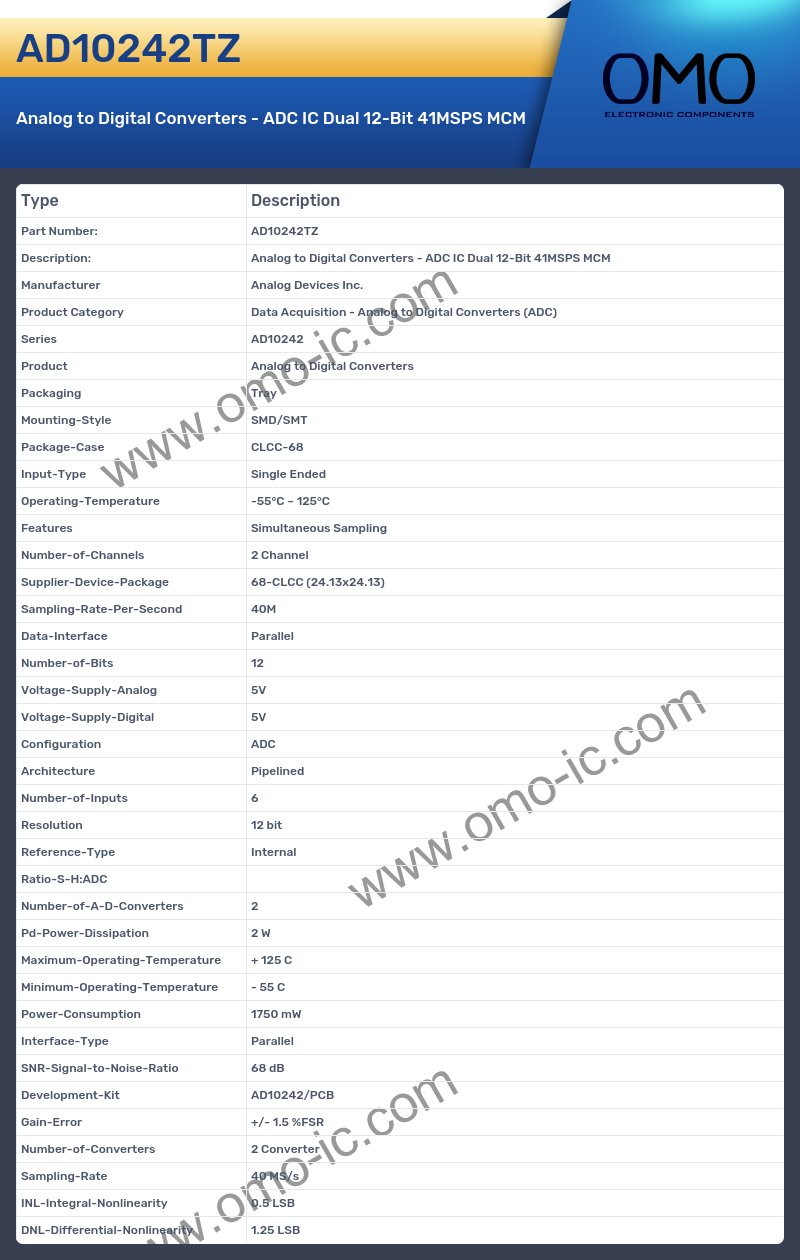

AD10242TZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD10242
• Product Analog to Digital Converters
• Packaging Tray
• Mounting-Style SMD/SMT
• Package-Case CLCC-68
• Input-Type Single Ended
• Operating-Temperature -55°C ~ 125°C
• Features Simultaneous Sampling
• Number-of-Channels 2 Channel
• Supplier-Device-Package 68-CLCC (24.13x24.13)
• Sampling-Rate-Per-Second 40M
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration ADC
• Architecture Pipelined
• Number-of-Inputs 6
• Resolution 12 bit
• Reference-Type Internal
• Ratio-S-H:ADC
• Number-of-A-D-Converters 2
• Pd-Power-Dissipation 2 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Power-Consumption 1750 mW
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 68 dB
• Development-Kit AD10242/PCB
• Gain-Error +/- 1.5 %FSR
• Number-of-Converters 2 Converter
• Sampling-Rate 40 MS/s
• INL-Integral-Nonlinearity 0.5 LSB
• DNL-Differential-Nonlinearity 1.25 LSB
