AD10242/PCB

AD10242/PCB Overview

Product belongs to the AD10242 series. This product is categorized as Evaluation Boards Type: ADC Bulk is the packaging method for this product This product is designed AD10242 amplifier. This product's 40M. Data-Interface: Parallel 12 bits 2 units Input range: ±2 V Included item: Board. IC package type: AD10242 Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C This product operates at a 5 V to 5.5 V supply voltage for reliable performance. This product is an Evaluation board with AS10242BZ. This tool is designed for the AD10242. 350 mA is 92 nA. Parallel interface type

AD10242/PCB Image

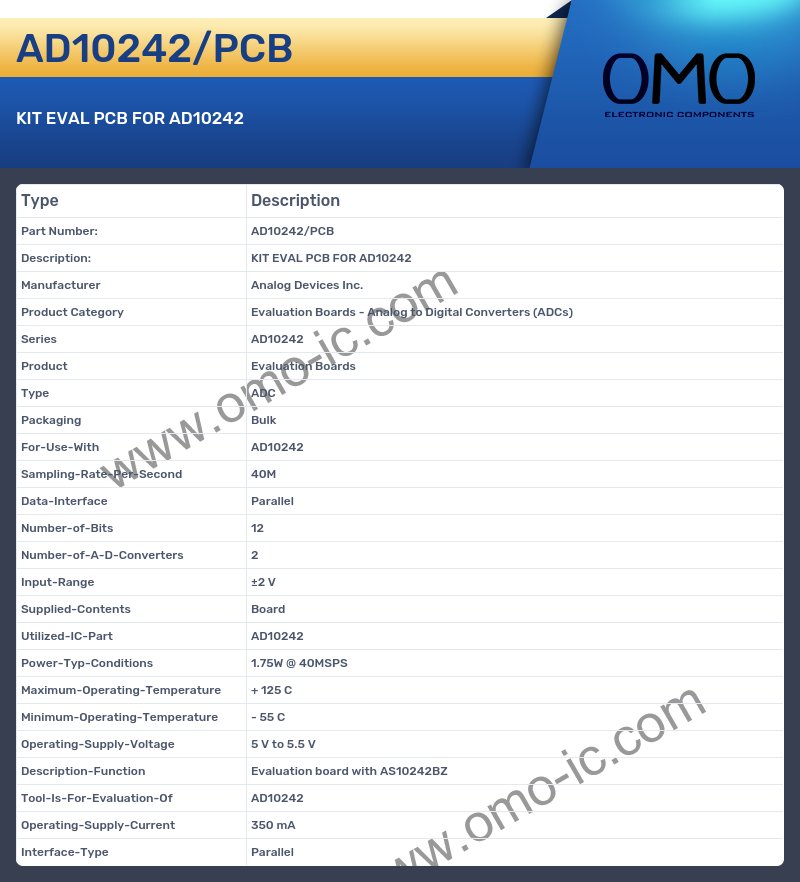

AD10242/PCB Specifications

• Manufacturer Analog Devices Inc.
• Product Category Evaluation Boards - Analog to Digital Converters (ADCs)
• Series AD10242
• Product Evaluation Boards
• Type ADC
• Packaging Bulk
• For-Use-With AD10242
• Sampling-Rate-Per-Second 40M
• Data-Interface Parallel
• Number-of-Bits 12
• Number-of-A-D-Converters 2
• Input-Range ±2 V
• Supplied-Contents Board
• Utilized-IC-Part AD10242
• Power-Typ-Conditions 1.75W @ 40MSPS
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Operating-Supply-Voltage 5 V to 5.5 V
• Description-Function Evaluation board with AS10242BZ
• Tool-Is-For-Evaluation-Of AD10242
• Operating-Supply-Current 350 mA
• Interface-Type Parallel
