UCC2809PWTR-1

UCC2809PWTR-1 Overview

This product is manufactured by Texas Instruments. Boost, Flyback, Forward Topology 1 Output is the number of outputs provided by this product. 1000 kHz is 60 kHz. Output current: 800 mA The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. TSSOP-8 package/case type is utilized by this product. Reel packaging for easy dispensing The height of the product is 1.15 mm. 3 mm long This device belongs to the Economy Primary Side PWM Controller type. Texas Instruments is a trusted brand for quality electronics Yes regarding Moisture Sensitivity Switching Controllers product type 2000 of 100 PMIC - Power Management ICs as subcategory 1. 0.001376 oz of Unit Weight

UCC2809PWTR-1 Image

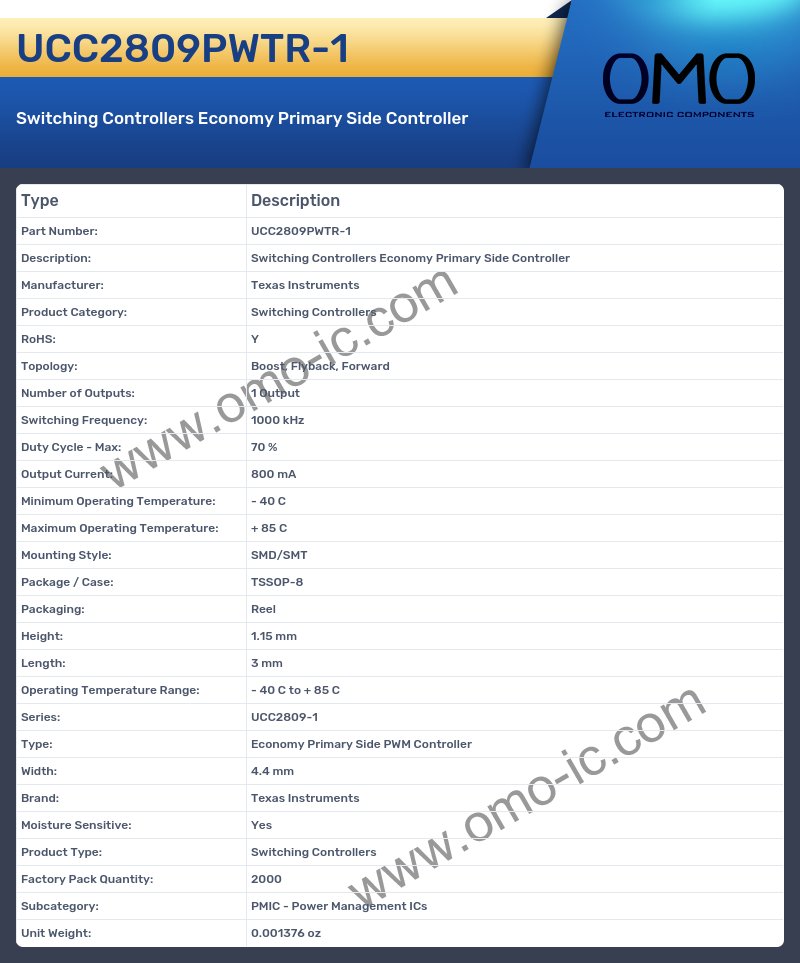

UCC2809PWTR-1 Specifications

• Manufacturer: Texas Instruments
• Product Category: Switching Controllers
• RoHS: Y
• Topology: Boost, Flyback, Forward
• Number of Outputs: 1 Output
• Switching Frequency: 1000 kHz
• Duty Cycle - Max: 70 %
• Output Current: 800 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-8
• Packaging: Reel
• Height: 1.15 mm
• Length: 3 mm
• Operating Temperature Range: - 40 C to + 85 C
• Series: UCC2809-1
• Type: Economy Primary Side PWM Controller
• Width: 4.4 mm
• Brand: Texas Instruments
• Moisture Sensitive: Yes
• Product Type: Switching Controllers
• Factory Pack Quantity: 2000
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.001376 oz
