UCC21520QDWQ1

UCC21520QDWQ1 Overview

This product is manufactured by Texas Instruments. Isolated Gate Drivers This device belongs to the High Side, Low Side type. The product can operate at a maximum temperature of SMD/SMT. SOIC-16 package/case type is utilized by this product. 2 Output is the number of outputs provided by this product. Output current: 6 A This product has a Dual configuration. Rise Time is 6 ns. 7 ns fall time Supply Voltage - Min: 3 V Supply Voltage - Max: 18 V Maximum propagation delay: 30 ns 1.05 W The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing Texas Instruments is a trusted brand for quality electronics CMOS, TTL. This product does not have a No Shutdown feature, ensuring continuous operation. UCC21520EVM-286 is a versatile development platform for hardware and software Yes regarding Moisture Sensitivity Gate Drivers product type 40 of 100 PMIC - Power Management ICs as subcategory 1. 0.026293 oz of Unit Weight

UCC21520QDWQ1 Image

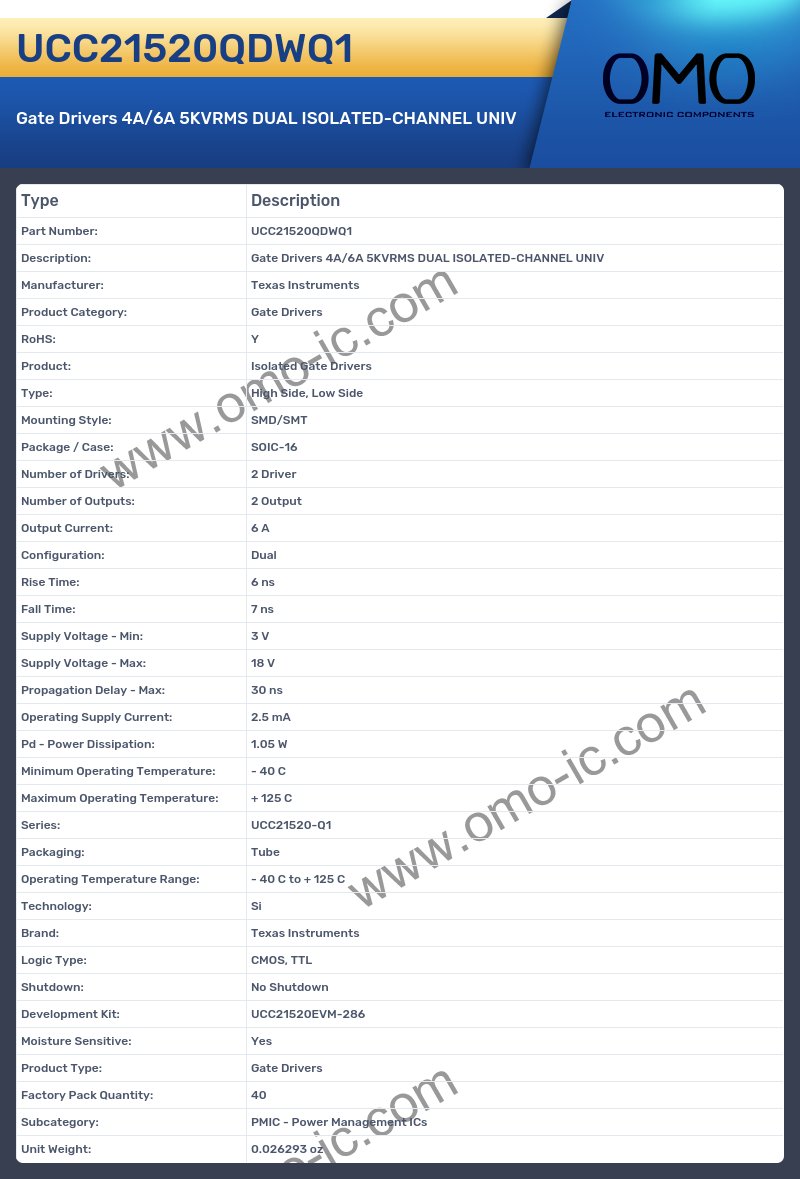

UCC21520QDWQ1 Specifications

• Manufacturer: Texas Instruments
• Product Category: Gate Drivers
• RoHS: Y
• Product: Isolated Gate Drivers
• Type: High Side, Low Side
• Mounting Style: SMD/SMT
• Package / Case: SOIC-16
• Number of Drivers: 2 Driver
• Number of Outputs: 2 Output
• Output Current: 6 A
• Configuration: Dual
• Rise Time: 6 ns
• Fall Time: 7 ns
• Supply Voltage - Min: 3 V
• Supply Voltage - Max: 18 V
• Propagation Delay - Max: 30 ns
• Operating Supply Current: 2.5 mA
• Pd - Power Dissipation: 1.05 W
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Series: UCC21520-Q1
• Packaging: Tube
• Operating Temperature Range: - 40 C to + 125 C
• Technology: Si
• Brand: Texas Instruments
• Logic Type: CMOS, TTL
• Shutdown: No Shutdown
• Development Kit: UCC21520EVM-286
• Moisture Sensitive: Yes
• Product Type: Gate Drivers
• Factory Pack Quantity: 40
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.026293 oz
