TPS7301QPW

TPS7301QPW Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. TSSOP-20 package/case type is utilized by this product. Output Voltage is 1.2 V to 9.75 V Output current: 500 mA 1 Output is the number of outputs provided by this product. Polarity type: Positive Maximum input voltage is 10 V The output type is Adjustable. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Minimum Dropout Voltage: 270 mV Tube packaging for easy dispensing The height of the product is 1.15 mm. 6.5 mm long Texas Instruments is a trusted brand for quality electronics Maximum dropout voltage is 170 mV at 500 mA Voltage Regulation Accuracy of 3 % is ensured. This product has an 340 uA of 5 uA for precise signal processing. Load regulation is 22 mV. 0.7 W LDO Voltage Regulators product type 70 of 100 PMIC - Power Management ICs as subcategory 1. 0.002716 oz of Unit Weight

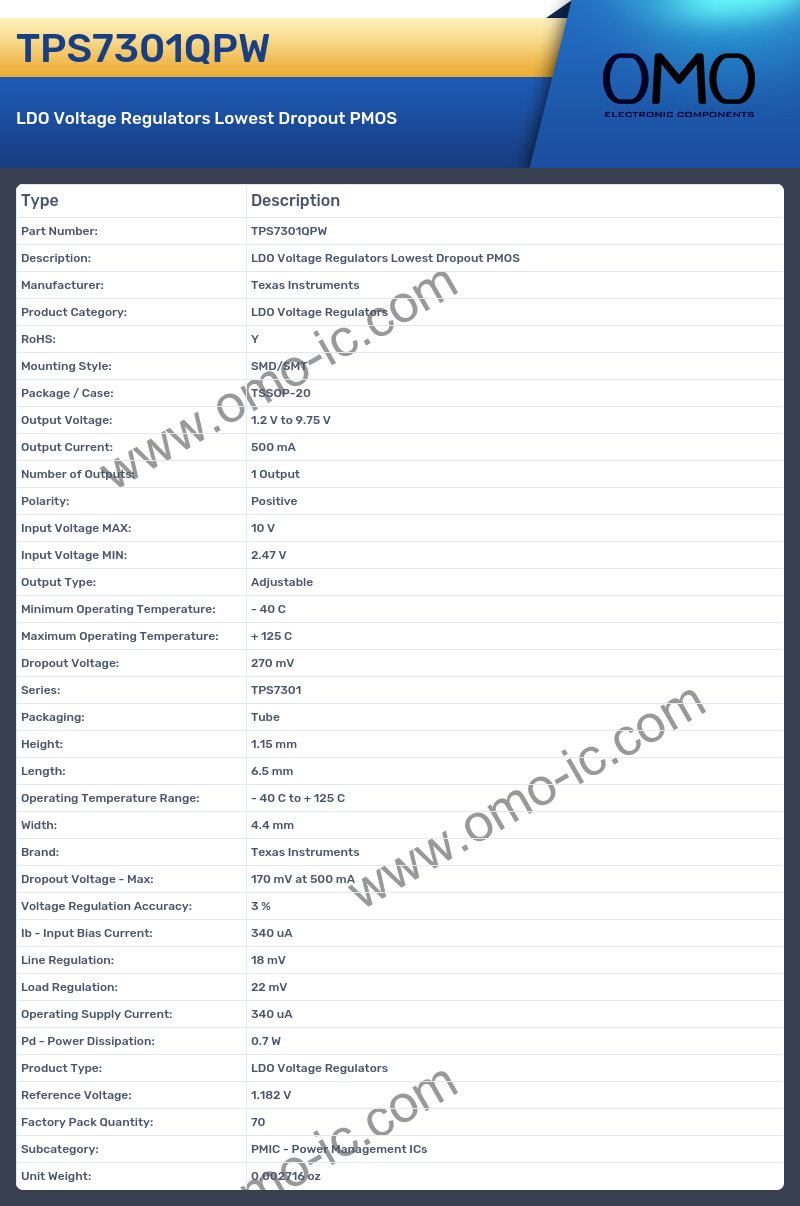

TPS7301QPW Image

TPS7301QPW Specifications

• Manufacturer: Texas Instruments
• Product Category: LDO Voltage Regulators
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-20
• Output Voltage: 1.2 V to 9.75 V
• Output Current: 500 mA
• Number of Outputs: 1 Output
• Polarity: Positive
• Input Voltage MAX: 10 V
• Input Voltage MIN: 2.47 V
• Output Type: Adjustable
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Dropout Voltage: 270 mV
• Series: TPS7301
• Packaging: Tube
• Height: 1.15 mm
• Length: 6.5 mm
• Operating Temperature Range: - 40 C to + 125 C
• Width: 4.4 mm
• Brand: Texas Instruments
• Dropout Voltage - Max: 170 mV at 500 mA
• Voltage Regulation Accuracy: 3 %
• Ib - Input Bias Current: 340 uA
• Line Regulation: 18 mV
• Load Regulation: 22 mV
• Operating Supply Current: 340 uA
• Pd - Power Dissipation: 0.7 W
• Product Type: LDO Voltage Regulators
• Reference Voltage: 1.182 V
• Factory Pack Quantity: 70
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.002716 oz
