TPS3705-30DGN

TPS3705-30DGN Overview

This product is manufactured by Texas Instruments. This device belongs to the Voltage Supervisory type. The product can operate at a maximum temperature of SMD/SMT. MSOP-PowerPad-8 package/case type is utilized by this product. 2.63 V, Adjustable threshold voltage range The output type is Active Low, Push-Pull. 200 ms. Supply Voltage - Max: 6 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 1.02 mm. 3 mm long Output current: 20 mA Texas Instruments is a trusted brand for quality electronics 1.3 V, 2.7 V is specified as a product attribute. The Adjustable, 2.63 V is a critical parameter in this product. No Chip Enable signal is supported. 2140 mW Supervisory Circuits product type 80 of 100 PMIC - Power Management ICs as subcategory Supply Voltage - Min: 2 V 1. 0.000670 oz of Unit Weight

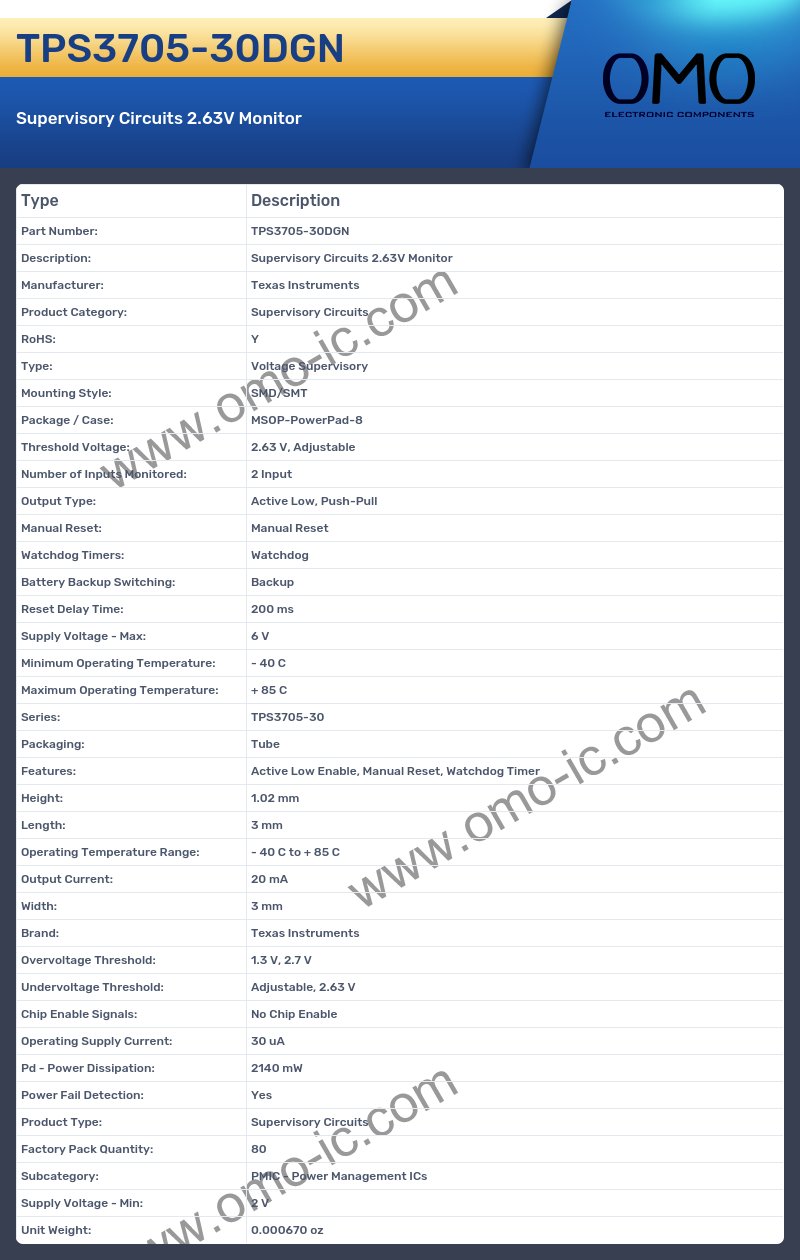

TPS3705-30DGN Image

TPS3705-30DGN Specifications

• Manufacturer: Texas Instruments
• Product Category: Supervisory Circuits
• RoHS: Y
• Type: Voltage Supervisory
• Mounting Style: SMD/SMT
• Package / Case: MSOP-PowerPad-8
• Threshold Voltage: 2.63 V, Adjustable
• Number of Inputs Monitored: 2 Input
• Output Type: Active Low, Push-Pull
• Manual Reset: Manual Reset
• Watchdog Timers: Watchdog
• Battery Backup Switching: Backup
• Reset Delay Time: 200 ms
• Supply Voltage - Max: 6 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Series: TPS3705-30
• Packaging: Tube
• Features: Active Low Enable, Manual Reset, Watchdog Timer
• Height: 1.02 mm
• Length: 3 mm
• Operating Temperature Range: - 40 C to + 85 C
• Output Current: 20 mA
• Width: 3 mm
• Brand: Texas Instruments
• Overvoltage Threshold: 1.3 V, 2.7 V
• Undervoltage Threshold: Adjustable, 2.63 V
• Chip Enable Signals: No Chip Enable
• Operating Supply Current: 30 uA
• Pd - Power Dissipation: 2140 mW
• Power Fail Detection: Yes
• Product Type: Supervisory Circuits
• Factory Pack Quantity: 80
• Subcategory: PMIC - Power Management ICs
• Supply Voltage - Min: 2 V
• Unit Weight: 0.000670 oz
