TLC7705IDG4

TLC7705IDG4 Overview

This product is manufactured by Texas Instruments. This device belongs to the Voltage Supervisory type. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. 4.5 V threshold voltage range The output type is Active High, Active Low, Push-Pull. Adjustable. Supply Voltage - Max: 6 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing The height of the product is 1.58 mm. 4.9 mm long Texas Instruments is a trusted brand for quality electronics 4.63 V is specified as a product attribute. The 4.55 V is a critical parameter in this product. 725 mW Supervisory Circuits product type 75 of 100 PMIC - Power Management ICs as subcategory Supply Voltage - Min: 2 V 1. 0.002677 oz of Unit Weight

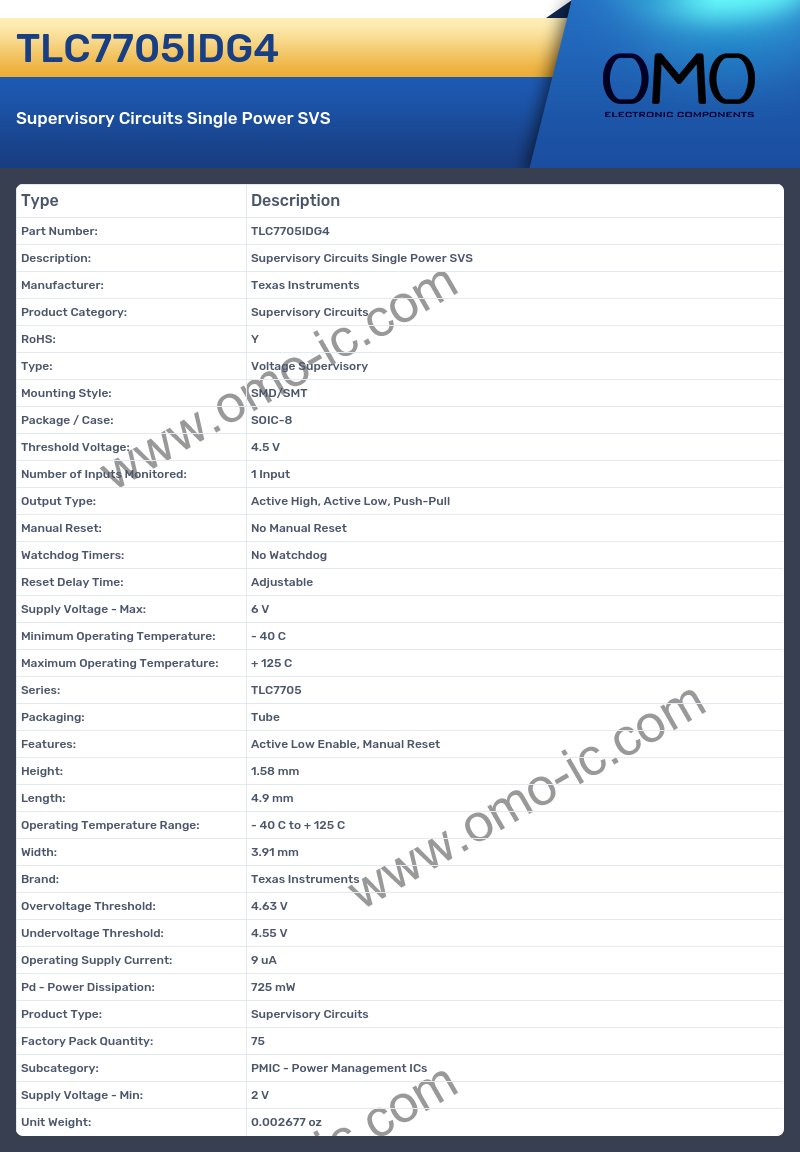

TLC7705IDG4 Image

TLC7705IDG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Supervisory Circuits
• RoHS: Y
• Type: Voltage Supervisory
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Threshold Voltage: 4.5 V
• Number of Inputs Monitored: 1 Input
• Output Type: Active High, Active Low, Push-Pull
• Manual Reset: No Manual Reset
• Watchdog Timers: No Watchdog
• Reset Delay Time: Adjustable
• Supply Voltage - Max: 6 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Series: TLC7705
• Packaging: Tube
• Features: Active Low Enable, Manual Reset
• Height: 1.58 mm
• Length: 4.9 mm
• Operating Temperature Range: - 40 C to + 125 C
• Width: 3.91 mm
• Brand: Texas Instruments
• Overvoltage Threshold: 4.63 V
• Undervoltage Threshold: 4.55 V
• Operating Supply Current: 9 uA
• Pd - Power Dissipation: 725 mW
• Product Type: Supervisory Circuits
• Factory Pack Quantity: 75
• Subcategory: PMIC - Power Management ICs
• Supply Voltage - Min: 2 V
• Unit Weight: 0.002677 oz
