TL7709ACD Overview

This product is manufactured by Texas Instruments. This device belongs to the Voltage Supervisory type. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. 7.6 V threshold voltage range The output type is Active-high,Active-low,Open-drain. Programmable. Supply Voltage - Max: 18 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. Tube packaging for easy dispensing The height of the product is 1.58 mm. 4.9 mm long Output current: - 16 mA Texas Instruments is a trusted brand for quality electronics 7.7 V is specified as a product attribute. The 7.5 V is a critical parameter in this product. Supervisory Circuits product type 75 of 100 PMIC - Power Management ICs as subcategory Supply Voltage - Min: 3.5 V 1. 0.002561 oz of Unit Weight

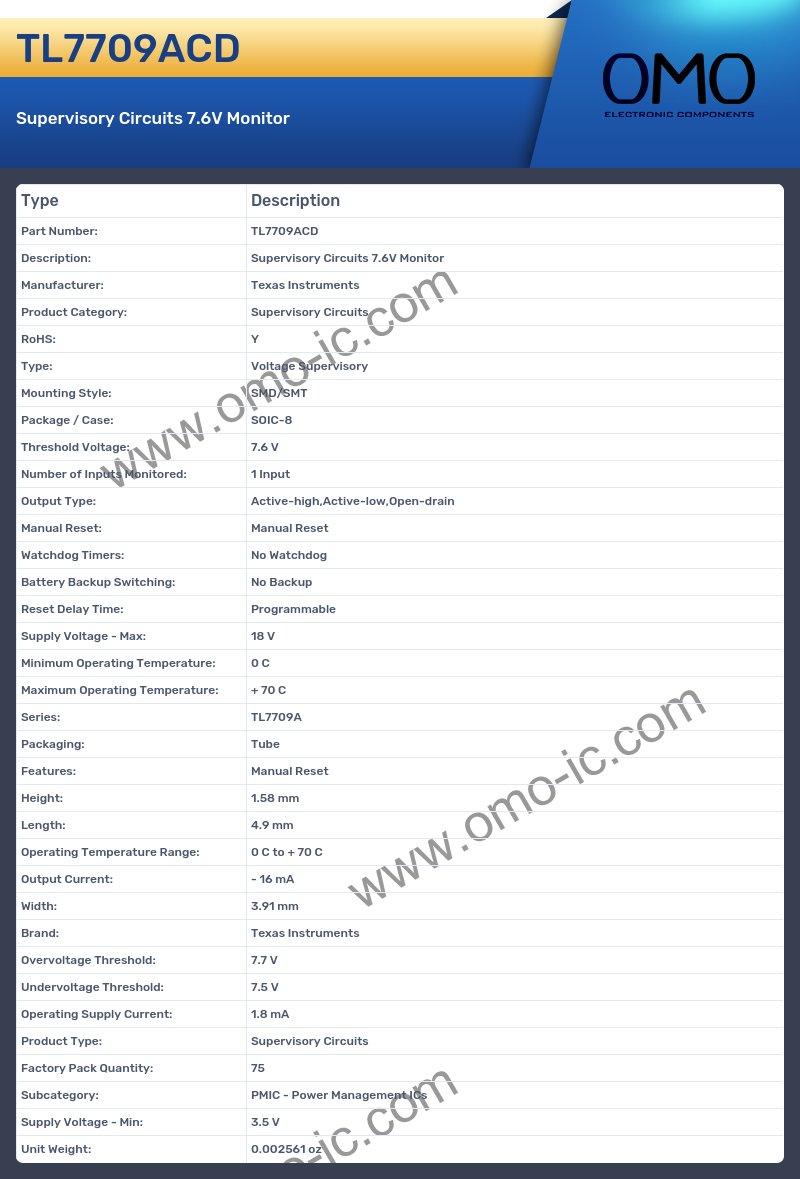

TL7709ACD Image

TL7709ACD Specifications

• Manufacturer: Texas Instruments
• Product Category: Supervisory Circuits
• RoHS: Y
• Type: Voltage Supervisory
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Threshold Voltage: 7.6 V
• Number of Inputs Monitored: 1 Input
• Output Type: Active-high,Active-low,Open-drain
• Manual Reset: Manual Reset
• Watchdog Timers: No Watchdog
• Battery Backup Switching: No Backup
• Reset Delay Time: Programmable
• Supply Voltage - Max: 18 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Series: TL7709A
• Packaging: Tube
• Features: Manual Reset
• Height: 1.58 mm
• Length: 4.9 mm
• Operating Temperature Range: 0 C to + 70 C
• Output Current: - 16 mA
• Width: 3.91 mm
• Brand: Texas Instruments
• Overvoltage Threshold: 7.7 V
• Undervoltage Threshold: 7.5 V
• Operating Supply Current: 1.8 mA
• Product Type: Supervisory Circuits
• Factory Pack Quantity: 75
• Subcategory: PMIC - Power Management ICs
• Supply Voltage - Min: 3.5 V
• Unit Weight: 0.002561 oz
