TL431CP

TL431CP Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of Through Hole. PDIP-8 package/case type is utilized by this product. Shunt Adjustable Precision References is the reference type. Output Voltage is Adjustable Temperature Coefficient is 92 PPM / C Maximum input voltage for series VREF is 37 V. 100 mA is the maximum shunt current The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing The height of the product is 4.57 mm. 9.81 mm long Voltage References Texas Instruments is a trusted brand for quality electronics Shunt References Topology 36 V is the maximum output voltage. Voltage References product type 50 of 100 PMIC - Power Management ICs as subcategory 1. 0.015535 oz of Unit Weight

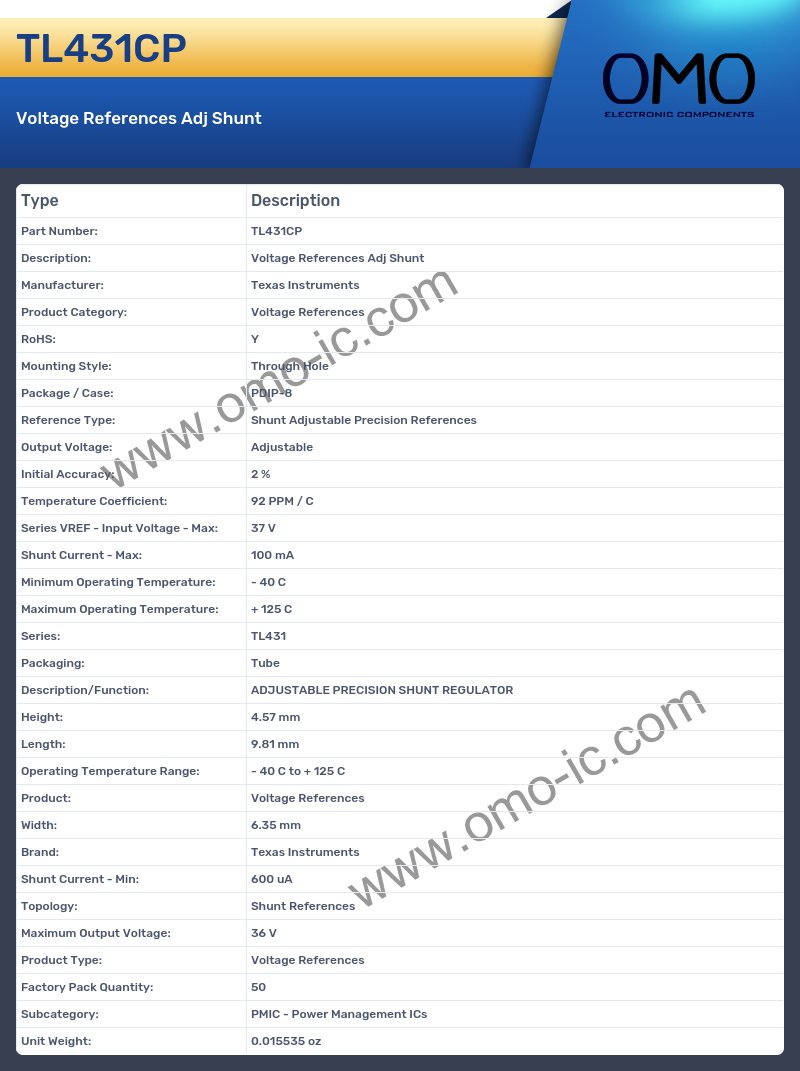

TL431CP Image

TL431CP Specifications

• Manufacturer: Texas Instruments
• Product Category: Voltage References
• RoHS: Y
• Mounting Style: Through Hole
• Package / Case: PDIP-8
• Reference Type: Shunt Adjustable Precision References
• Output Voltage: Adjustable
• Initial Accuracy: 2 %
• Temperature Coefficient: 92 PPM / C
• Series VREF - Input Voltage - Max: 37 V
• Shunt Current - Max: 100 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Series: TL431
• Packaging: Tube
• Description/Function: ADJUSTABLE PRECISION SHUNT REGULATOR
• Height: 4.57 mm
• Length: 9.81 mm
• Operating Temperature Range: - 40 C to + 125 C
• Product: Voltage References
• Width: 6.35 mm
• Brand: Texas Instruments
• Shunt Current - Min: 600 uA
• Topology: Shunt References
• Maximum Output Voltage: 36 V
• Product Type: Voltage References
• Factory Pack Quantity: 50
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.015535 oz
