STW26NM60N

STW26NM60N Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of Through Hole. TO-247-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 600 V 20 A continuous drain current Rds On value of 165 mOhms Gate-Source Threshold Voltage Range: 2 V Gate-Source Voltage: 10 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 140 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's MDmesh is Blue Gecko. Tube packaging for easy dispensing The height of the product is 20.15 mm. 15.75 mm long The Transistor Type is 1 N-Channel Power MOSFET. This device belongs to the Power MOSFET type. STMicroelectronics is a trusted brand for quality electronics 50 ns fall time MOSFET product type Rise Time is 25 ns. 600 of 100 MOSFETs as subcategory Turn-off delay time is 85 ns. The typical turn-on delay time is 13 ns. 1. 1.340411 oz of Unit Weight

STW26NM60N Image

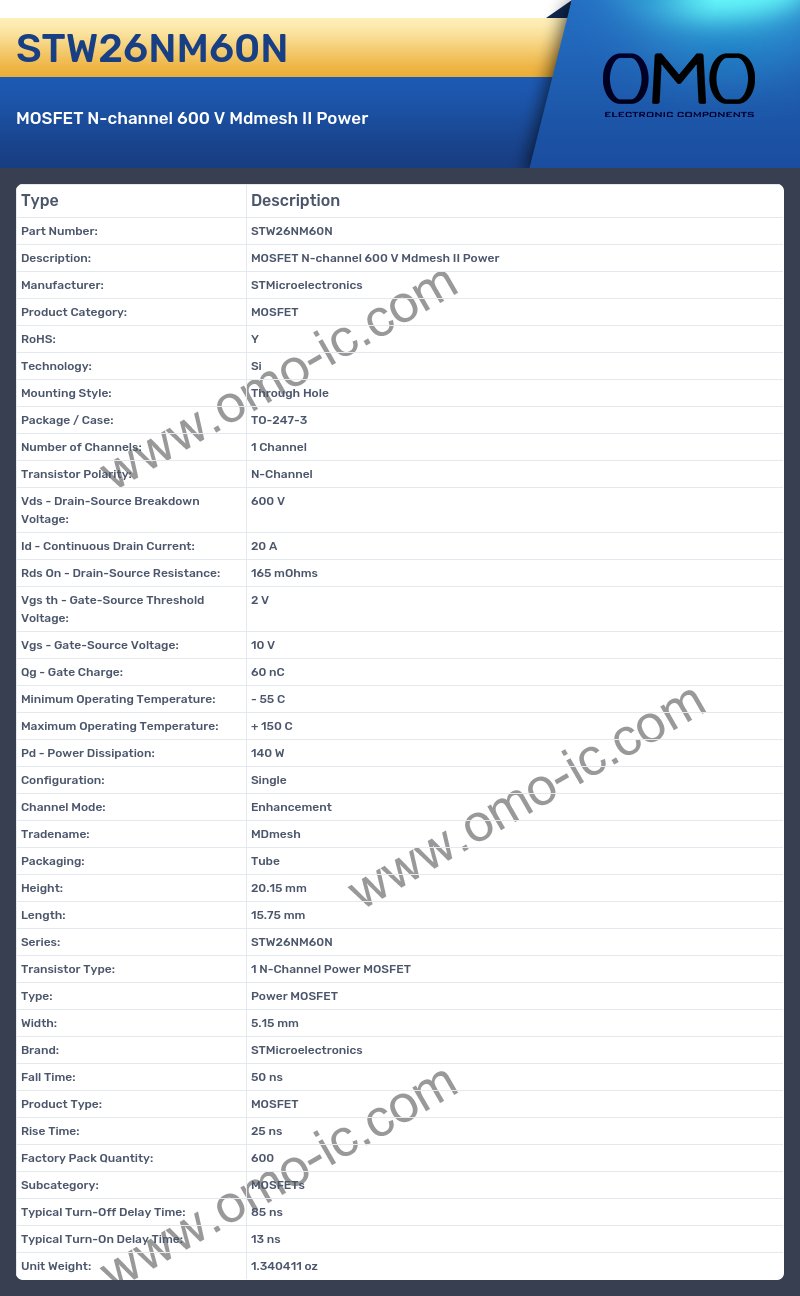

STW26NM60N Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: Through Hole
• Package / Case: TO-247-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 600 V
• Id - Continuous Drain Current: 20 A
• Rds On - Drain-Source Resistance: 165 mOhms
• Vgs th - Gate-Source Threshold Voltage: 2 V
• Vgs - Gate-Source Voltage: 10 V
• Qg - Gate Charge: 60 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 140 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: MDmesh
• Packaging: Tube
• Height: 20.15 mm
• Length: 15.75 mm
• Series: STW26NM60N
• Transistor Type: 1 N-Channel Power MOSFET
• Type: Power MOSFET
• Width: 5.15 mm
• Brand: STMicroelectronics
• Fall Time: 50 ns
• Product Type: MOSFET
• Rise Time: 25 ns
• Factory Pack Quantity: 600
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 85 ns
• Typical Turn-On Delay Time: 13 ns
• Unit Weight: 1.340411 oz
